MLRK1-DRX

• · "PTS" Push to set technology
• · EASY INSTALLATION
• FAST, QUIET, SMOOTH
• True Electronic Dogging Full push pad retraction
• UL LISTED
• Retrofits Dorex 9500 series exit devices

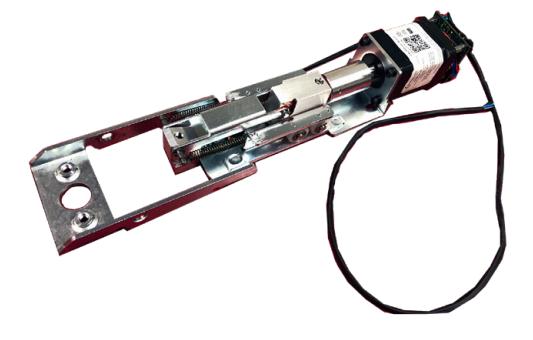

The MLRK1-DRX is a high quality, cost effective method of converting an Dorex 9500 series device to an electrified latch pullback exit device. Since our kit retracts the push pad, the device can be electrically dogged allowing the device to remain in a push/pull state, for as long as is desired. Patent Pending Push to Start (PTS)Technology allows for an easy post-installation adjustment of the latch/latches. Last but not least, it features our motor module with 2 different torque settings from energy conscious to high torque to get the tough jobs done!

SPECIFICATIONS

Voltage:

• Voltage range 24 to 28 VDC
• System protection unit shutdown when voltage exceeds 28VDC
• Standard Average Current Peak: 900A, Average Current Hold: 215mA
• High Torque Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment approx. 1/4"

Wire Run:

300' with 18ga wire

Product Details:

· Weight: 2 Lbs

Device Cutdown Details:

• 36" All the way to pushpad
• 48" All the way to pushpad

FEATURES

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• "PTS": 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty Auto re-engage if push pad is pulled from dogged position
• Low Current Draw Field switchable to "High Torque" mode
• Up to 300' wire run with 2-18ga wire -Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8' cable with Quick Connect for MM4S module to easily connect to power supply lead
• Optional Request-to-exit can be added
• 3-year "no hassle" warranty

U.S. Customer Support 1-888-622-2377

Visit our website for more details www.CommandAccess.com

Canada Customer Support 1-855-823-3002

How to Order

PART #	EASY ORDER #	DESCRIPTION
MLRK1-DRX	73065	Kit for Dorex 9500 Series. EU 24V
CRSREXKIT-ED	70142	Field Installable REX kit for Mechanical or Electrified devices.

MLRK1-DRX Matrix

The MLRK1 will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.

X RE Kit O D	Mechanical Device	fied d oi odi Solen M AT C	fied otor odi M M AT C	otor A) M N/ C ( D S	otor A) M N/ SI ( C A
DRX		_		_	_
