MLRK1-DOR

Dorma 9000 series

• "PTS" Push to set technology
• Easy installation underneath the push pad for ultimate cutdown
• Fast, quiet, smooth
• True Electronic Dogging Full push pad retraction
• UL Listed

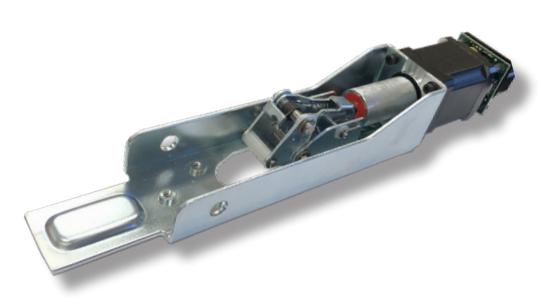

The MLRK1-DOR is a practical and cost-effective way to convert a mechanical Dorma series device to an electrified latch pullback device, while maintaining the UL listing. Our easy-to-install motordriven kit installs in moments. It is equipped with PTS technology allowing for an easy postinstallation adjustment of the latch/latches. Last but not least, it features an updated motor module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!

SPECIFICATIONS

Voltage:

• Voltage range 24 +/- 10%
• System protection unit shutdown when voltage exceeds 28VDC
• Standard Average Current Peak: 900 mA, Average Current Hold: 215mA
• High Torque Average Current Peak: 2A, High Average Current Hold: 250mA
• PTS adjustment approx. 1/4"

Wire Run:

• 300' with 18ga wire

Product Details:

• Box: 10.5" x 3.75": x 2.5"•

• Weight: 2 Lbs•

Cutdown Details

• 36" & 48" at least 1" of filler plate

Accessories

• Request-to-Exit - Field Installable REX kit

FEATURES

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• "PTS": 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty
  • Auto re-engage if push pad is pulled from dogged position
• Low Current Draw Field switchable to "High Torque" mode
• Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6" robust Molex Pigtail + 6' Power lead to easily connect to power supply lead
• Request-to-exit kit available
• 3-year "no hassle" warranty

How to Order

PART # EASY ORDER # DESCRIPTION
MLRK1-DOR	72404	Kit for Dorma 9000 Series. EU 24V
DORREXKIT-ED	72499	Field Installable Request-to-Exit kit

MLRK1-DOR Matrix

The MLRK1-DOR will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.
