MLRK1-COR

• "PTS" Push to set technology
• Powerfully Built & Easy to Install!
• Fast, quiet, smooth
• True Electronic Dogging Full push pad retraction
• UL Listed
• Retrofits Corbin Russwin 4/5000 & Yale 7000 series exit devices

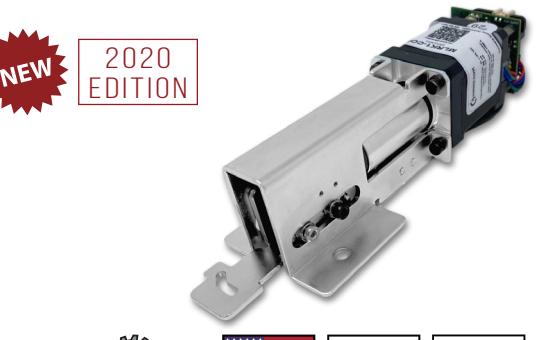

The MLRK1-COR is a high quality, cost-effective method of converting a Corbin Russwin 4/5000 & Yale 7000 series device to an electrified motor-driven latch retraction exit device. All our kits retract not just the latch/latches but the push pad too. Allowing electronically dogged devices to remain in a push/pull state for as long as it is desired. Patent Pending Push to Set (PTS) Technology allows for an easy post-installation adjustment of the latch/latches. Last but not least, it features our motor module with built-in audible diagnostics & equipped with 2 different torque settings from energy-conscious, to High Torque to get the tough jobs done!

SPECIFICATIONS

Voltage:

• Voltage range 24 to 28 VDC
• System protection unit shutdown when voltage exceeds 28VDC
• Standard Average Current Peak: 900mA, Average Current Hold: 215mA
• High Torque Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment approx. 1/4"

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36" 4" from end cap
• 48" 10" from end cap

FEATURES

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• "PTS": 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty Auto re-engage if push pad is pulled from dogged position
• Low Current Draw Field switchable to "High Torque" mode
• Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8' cable with Quick Connect for MM4S module to easily connect to power supply lead
• Optional Request-to-exit can be added
• 3-year "no hassle" warranty

How to Order

PART # EASY ORDER # DESCRIPTION

MLRK1-COR	78952	Kit for Corbin Russwin 4/5000 & Yale 7000 Series. EU 24V
MLRK1-COR REX	78953	Kit for Corbin Russwin 4/5000 & Yale 7000 Series. EU 24V + REX
CYREXKIT-M-ED	72643	Field Installable REX kit for Electrified devices.

MLRK1-COR Matrix

The MLRK1-COR will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.

n wi w Kit Rus & Yale n Corbi	Mechanical Device	fied d oi odi Solen M AT C	fied otor odi M M AT C	K) otor R C M 00 C R1 D S (L	C) otor D M M K- SI 50 C (11 A
COR

Need a Locking Hardware Power Supply? Recommended Power Supplies:

• • PS440B • PS204/PS204B
• • PS480B • PS210
• • PS220/220B
