MLRK1-CAL Cal Royal 9800 & 2200 series

• "PTS" Push to set technology

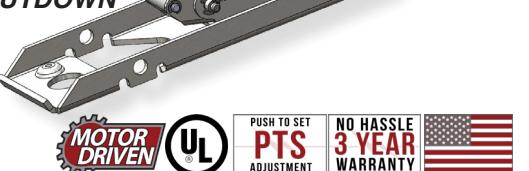

• Easy installation underneath the push pad for ultimate cutdown
• Fast, quiet, smooth
• True Electronic Dogging Full push pad retraction
• UL Listed

The MLRK1-CAL is a practical and cost-effective way to convert a mechanical Cal Royal 9800 & 2200 series exit device to an electrified latch retraction device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches.

SPECIFICATIONS

Voltage:

• Voltage range 24 to 28 VDC
• System protection unit shutdown when voltage exceeds 28VDC
• Standard Torque Average Current Peak: 900A, Average Current Hold: 215mA
• High Torque Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment approx. 1/4"

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• All the way to the push pad The motor kit installs underneath the push pad.

Accessories:

• Request-to-Exit - Field Installable REX kit

FEATURES

• MM4S Smart Module: On-board diagnostics with audible feedback for adjustment and power issues
• Remote MM4S module for easy accessibility y & servicing.
• "PTS": 5-second electronic adjustment for easy post-installation adjustment
• Electric dogging rated for continuous duty
  • Auto re-engage if push pad is pulled from dogged position
• Low Current Draw Field switchable to "High Torque" mode
• Up to 300' wire run with 2-18ga wire Long wire runs provide the installer with the convenience of placing the Command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel
• 8' cable with Quick Connect for MM4S
• module to easily connect to power
• supply lead
• Request-to-exit kit available
• 3-year "no-hassle" warranty

How to Order

PART #	EASY ORDER #	DESCRIPTION
MLRK1-CAL	72719	Kit for Cal Royal 9800/2200 Series. EU 24V
CRSREXKIT-ED	70142	Field Installable Request to Exit Kit for Cal Royal 9800/2200

MLRK1-CAL Matrix

Our kit will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.

Kit Royal Cal	Mechanical Device	fied d oi odi Solen M AT C	fied otor odi M M AT C	Royal otor Cal M	M) E otor K- A M C C 00- D S R1 (L	otor K-) M 550 SI (1 C A
CAL		-				-

Need ^a locking hardware power supply?

Recommended Locking Hardware Power Supplies:

• PS204/PS204B • PS220/220B

• PS210 • PS440B

• PS480B
