Electrified Latch Retraction

MLRK1-ARW

Arrow 1000 series

"PTS" Push to set technology
Easy installation underneath the push pad for ultimate cutdown
Fast, quiet, smooth
True Electronic Dogging Full push pad retraction
UL Listed

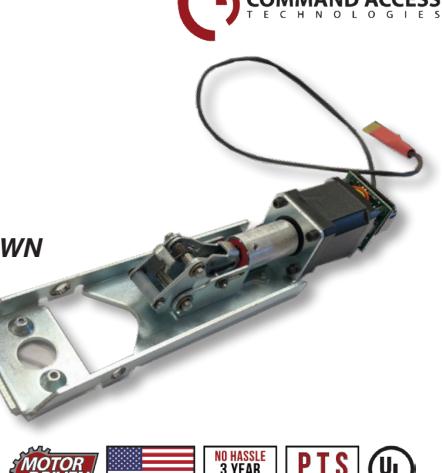

The MLRK1-ARW is a practical and cost-effective way to convert a mechanical Arrow 1000 series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, it features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!

SPECIFICATIONS

Voltage:

Voltage range 24 to 28 VDC
System protection unit shutdown when voltage exceeds 28VDC
Standard Average Current Peak: 900A, Average Current Hold: 215mA
High Torque Average Current Peak: 2A, Average Current Hold: 250mA
PTS adjustment approx. 1/4"

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

36" All the way to push pad
48" All the way to push pad

Accessories

• CRSREXKIT-ED - Field Installable REX kit

FEATURES

MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
"PTS": 5 second electronic adjustment for easy post installation adjustment
Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
Low Current Draw Field switchable to "High Torque" mode
Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
8' cable with Quick Connect for MM4S module to easily connect to power supply lead
Request-to-exit kit available
3-year "no hassle" warranty

U.S. Customer Support 1-888-622-2377

Visit our website for more details www.commandaccess.com

Canada Customer Support 1-855-823-3002

How to Order

PART #	EASY ORDER #	DESCRIPTION
MLRK1-ARW	78935	Kit for Arrow 1000 Series. EU 24V
CRSREXKIT-ED	70142	Field Installable REX kit for Arrow devices.

MLRK1 Matrix

The MLRK1-ARW will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.
