Electrified Latch Retraction

MLRK1-AREX

(EXARLP-UL-M-KIT)

• "PTS" Push to set technology
• Easy installation
• Fast, quiet, smooth
• O nly latch retraction option in the industry
• Patent Pending Custom Ball Screw for Greater Torque
• UL Listed
• • Retrofits Adams Rite EX series exit devices

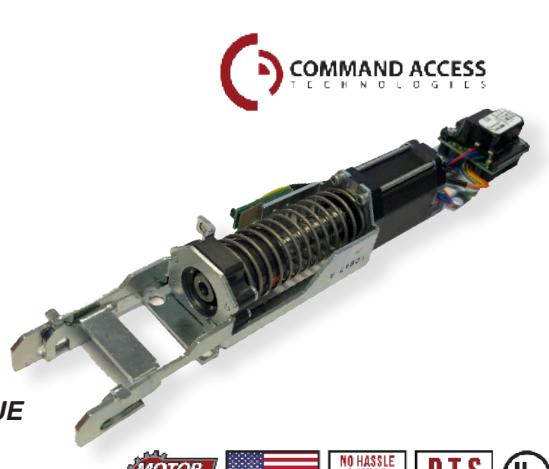

The new MLRK1-AREX is the first & ONLY, groundbreaking field installable motorized latch retraction kit for Adams Rite EX series exit devices. It utilizes a custom ball screw assembly and CAT designed custom stepper motor to maximize the pulling force in a package small enough to fit inside all Adams Rite EX devices with no clearance issues.. The only hole you'll need to drill is theraceway! It utilizes our PTS "Push to Set" technology making post-installation adjustments incredibly easy. It also offers an optional REX integrated into the kit & the kit installs underneath the push pad giving you plenty of room for cutdown devices.

SPECIFICATIONS

Voltage:

• Voltage range 22 to 28 VDC
• System protection unit shutdown when voltage exceeds 28VDC
• Standard Average Current Peak: 1.3A, Average Current Hold: 170mA
• High Torque Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment approx. 1/4"

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36" Down to Pushpad
• 48" Down to Pushpad

FEATURES

• Next Generation MM4 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• "PTS": 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw Field switchable to "High Torque" mode
• Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8' cable with Quick Connect for MM4 module to easily connect to power supply lead
• Optional Request-to-exit can be built-in
• 3-year "no hassle" warranty

How to Order

PART #	EASY ORDER #	DESCRIPTION
MLRK1-AREX	79652	Kit for Adams Rite EX SERIES. EU 24V
MLRK1-AREX w/ REX	79653	Kit for Adams Rite EX SERIES. EU 24V w/ REX

EXARLP-UL-M KIT Matrix

The EXARLP-UL-M KIT will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.

Rite ms Kit Ada	Mechanical Device	fied d oi odi Solen M AT C	fied otor odi M M AT C	d oi Solen A) N/ ( R A	otor A) M N/ R ( A
EX		_		_	_

• PS480B

Need ^a locking hardware power supply?

Recommended Locking Hardware Power Supplies:

• PS204/PS204B • PS210 • PS220/220B • PS440B
