Installation Instructions

ML8080/ML8053

Cal Royal Lock modified by Command Access Technologies

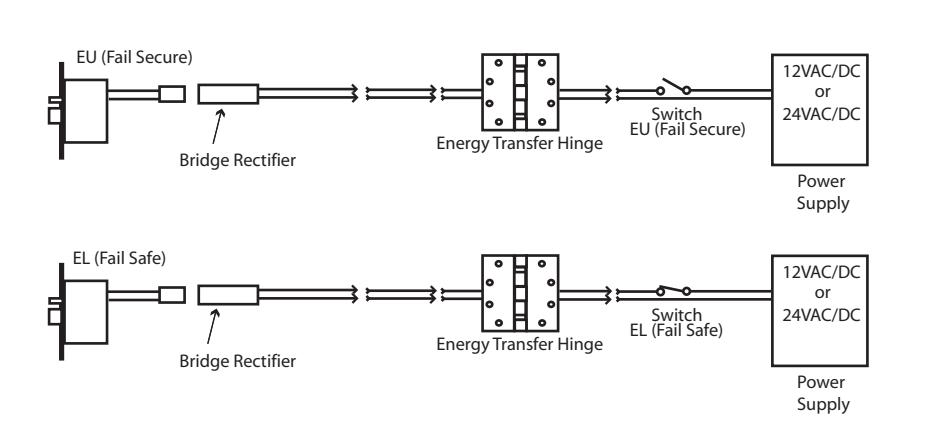

STEP 1 : The door must be machined with a 3/8" wire raceway, mortise lock pocket & prepped for a energy transfer hinge. Make sure the mortise pocket is free of debris.

STEP 2 : Run the wires from the ETH hinge through the 3/8" raceway starting at the ETH hinge & exiting into the mortise pocket.

STEP 3 : Screw the ETH hinge to the door. At this time DO NOT connect the hinge wires on the jamb side to the wires coming from the power supply.

STEP 4 : Connect the wires exiting the mortise pocket to the Bridge Rectifier (included).

STEP 5 : Connect the Bridge Rectifier to the plug exiting the mortise chassis.

STEP 6 : Carefully slip the connected mortise lock chassis into the mortise pocket paying close attention not to pinch any wires

STEP 7 : Mount the chassis per manufacturer's instructions.

STEP 8 : Connect the wires from the power supply at the ETH hinge on the jamb side. Connect the hinge to the jamb.

LEGEND OF TERMS

EU : (Fail Secure) When power is applied, the outside trim will unlock. When power is removed, the outside trim is locked.

EL : (Fail Safe) When power is applied, the outside trim will lock. When power is removed, the outside trim is unlocked.

REX : (Request to Exit Switch) Monitors the inside handle.

LBM : (Latchbolt Monitor Switch) Monitors the position of latchbolt.

ELECTRICAL SPECIFICATIONS

SOLENOIDS:

VOLTS CURRENT COIL RESISTANCE 24VAC/DC 350mA 69 Ohms +/- 10% 12VAC/DC 700mA 18 Ohms +/- 10%

SWITCHES: 5A 124VAC/DC

REX : Green - Common (C)

Blue - Normally Open (NO) Gray - Normally Closed (NC)

LBM: Green/Black - Common (C)

Blue/Black - Normally Open (NO) Gray/Black - Normally Closed (NC)

DPS : Green/Red - Common (C)Blue/

Red - Normally Open (NO) Gray/Red - Normally Closed (NC)
