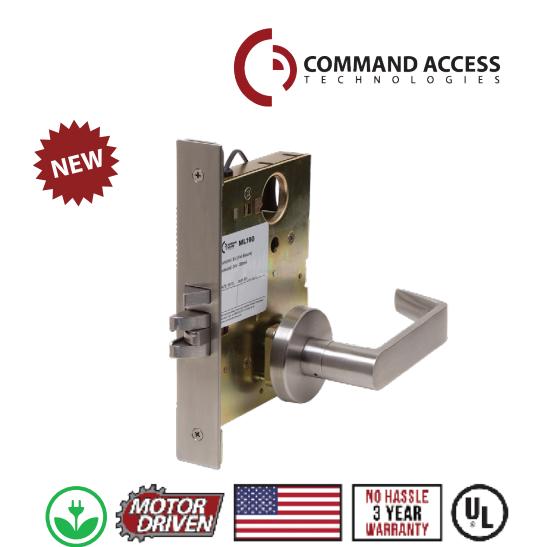

Electrified Mortise Lock

ML190 Series

• Motorized Lever Control
• Retrofits Schlage L9000 series
• Grade 1
• UL Listed
• Field Selectable EU/EL
• Ready for 12V or 24VDC
• Low Energy POE compatible
• Built to last in the USA

complete lockset.

SPECIFICATIONS

• Voltage range 11 to 30 VDC
• Max Current Draw: 400mA,
• Average Current Hold: 10mA
• EU to EL hold button for 3 seconds.
• Handing Field Reversible without removing cover.

Accessories:

• Request to Exit (REX) Available as a field installable kit or factory installed
• Latchbolt Monitor (LBM) Monitor the position of the latchbolt
• Door Position (DPS) Monitor the position of the door

Product Details:

Chassis Only

• Box: 10.5" x 3.75": x 2.5"
• Weight: 3 Lbs
• Master Pack Qty: 10 ea.

Complete Lock

• Box: 10.5" x 3.75": x 2.5"
• Weight: 7 Lbs
• Master Pack Qty: 4 ea.

FEATURES:

• Continuous duty motor allows for great energy savings on "continuously on" applications such as Fail Safe or an unlock cycle.
• Low current draw makes it an ideal lock for POE systems.
• Changing for EU/EL is done easily with the push of a button. No need to cut wires!
• Switching from EU/EL can be done without power present.
• True cycle feature ensure motor returns to original position even if power drops.
• ANSI/BHMA Grade 1
• UL listed
• Buy America Act
• 3 Year No-Hassle Warranty

Models Available

ML19092 - Storeroom:

(fail safe/fail secure)

Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. EU= Applied power allows outside lever to retract latchbolt, EL = Applied power prevents outside lever from retracting latchbolt. Inside lever is always free for immediate egress.

ML19095 - Institutional:

(fail safe/fail secure)

Outside and inside levers operate simultaneously locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key on either side. EU= Applied power allows outside lever to retract latchbolt, EL = Applied power prevents outside lever from retracting latchbolt.

How to Order

Co mplete Mo del:	Trim:	Finish:	Switc hes:	Cha ssis o nly Mo del:	Chassis Only:
ML19092-M	L6B	613	REX	ML19095-M	CH

Trims Ava	ila bl e	Levers Ava ila bl e	Finishes Ava ila bl e	Sa mpl e
L				L3 605
		3	605	L7B 613
L_B		6	612	ESC17 626
			613	Trim Dimensions L = 2-7/16" LB= 2-3/4
ESC		7	625	ESC= 1-3/4" x 8"
		17	626	*All configurations not available. Call for availability.

Need a Locking Hardware Power Supply? Recommended Power Supplies:

• PS204/PS204B
• PS210
• PS220/220B
• PS440B
• PS480B
