INSTALLATION INSTRUCTIONS

ML90/ML91/ML94/ML95

Yale Lock modified by Command Access Technologies

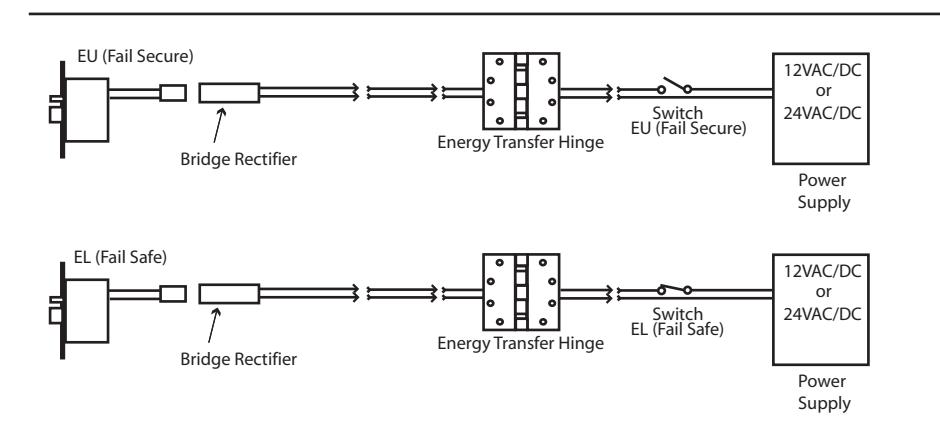

STEP 1 : The door must be machined with a 3/8" wire raceway, mortise lock pocket & prepped for a energy transfer hinge. Make sure the mortise pocket is free of debris.

STEP 2 : Run the wires from the ETH hinge through the 3/8" raceway starting at the ETH hinge & exiting into the mortise pocket.

STEP 3 : Screw the ETH hinge to the door. At this time DO NOT connect the hinge wires on the jamb side to the wires coming from the power supply.

STEP 4 : Connect the wires exiting the mortise pocket to the Bridge Rectifier (included).

STEP 5 : Connect the Bridge Rectifier to the plug exiting the mortise chassis.

STEP 6 : Carefully slip the connected mortise lock chassis into the mortise pocket paying close attention not to pinch any wires.

STEP 7 : Mount the chassis per manufacturer's instructions.

STEP 8 : Connect the wires from the power supply at the ETH hinge on the jamb side. Connect the hinge to the jamb.

LEGEND OF TERMS

EU : (Fail Secure) When power is applied, the outside trim will unlock. When power is removed, the outside trim is locked.

EL : (Fail Safe) When power is applied, the outside trim will lock. When power is removed, the outside trim is unlocked.

REX : (Request to Exit Switch) Monitors the inside handle.

DPS : (Door Position Switch) Monitors the door position via the anti pick (Deadlatch).

LBM : (Latchbolt Monitor Switch) Monitors the position of latchbolt.

ELECTRICAL SPECIFICATIONS

SOLENOIDS:

VOLTS CURRENT COIL RESISTANCE 24VAC/DC 350mA 69 Ohms +/- 10% 12VAC/DC 700mA 18 Ohms +/- 10%

SWITCHES: . 5A 24VAC/DC

REX: Green -Common (C) (RH/RHR) Plus Normally Open

Blue -Normally Open (NO) Gray -Normally Closed (NC)

REX: Green/White -Common (C) (LH/LHR) Blue/White -Normally Open (NO)

Gray/White -Normally Closed (NC)

LBM : Green/Black -Common (C)

Blue/Black -Normally Open (NO) Gray/Black -Normally Closed (NC)

DPS : Green/Red -Common (C)

Blue/Red -Normally Open (NO) Gray/Red -Normally Closed (NC)

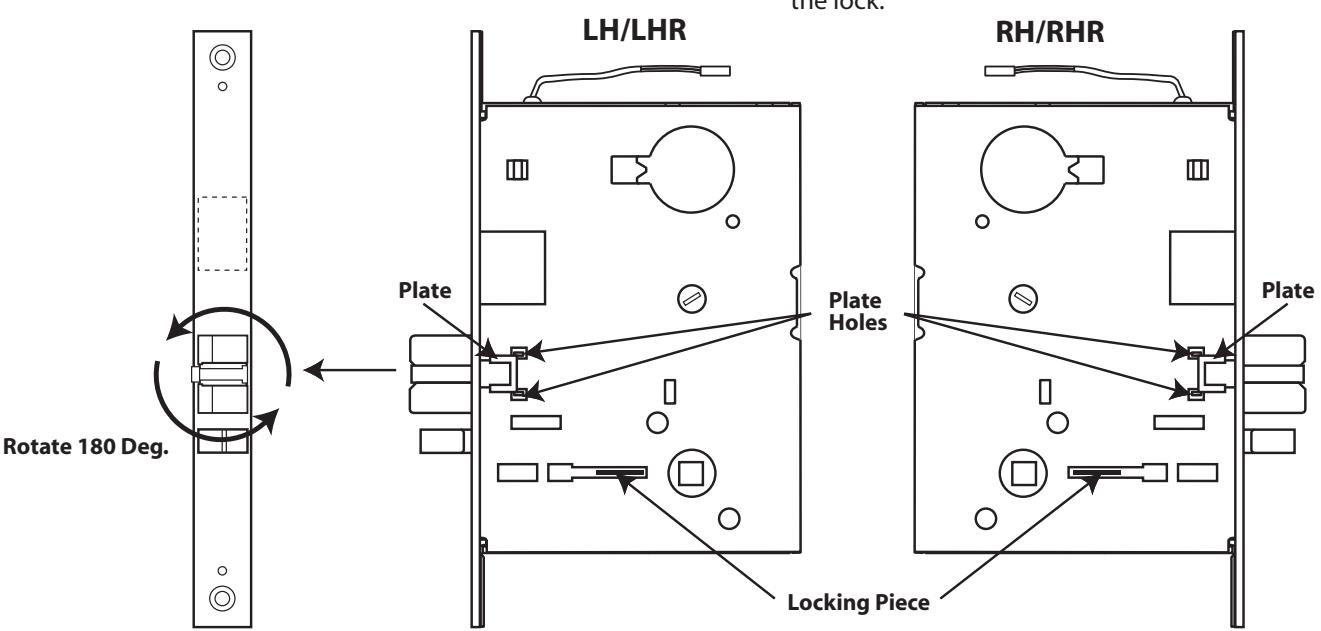

Handing Instructions for ML90/ML91/ML94/ML95 Mortise Locks

• STEP 1 : To rotate latchbolt, locate plate in one of the plate holes. Insert blade screwdriver in plate hole and press on plate while pulling latchbolt out of case.
• STEP 2 : Rotate 180° to desired latchbolt position. Firmly press latchbolt into case until it stops moving. Check if latchbolt operates properly.
• STEP 3 : To rotate locking piece, position the lock body with the RED surface of the locking piece visible.
• STEP 4 : Move locking piece away from square spindle hole.
• STEP 5 : Push on edge of locking piece between locking piece and square spindle hole. Rotate 180°. RED mark indicates locked side of door and must be seen on either side of the lock.

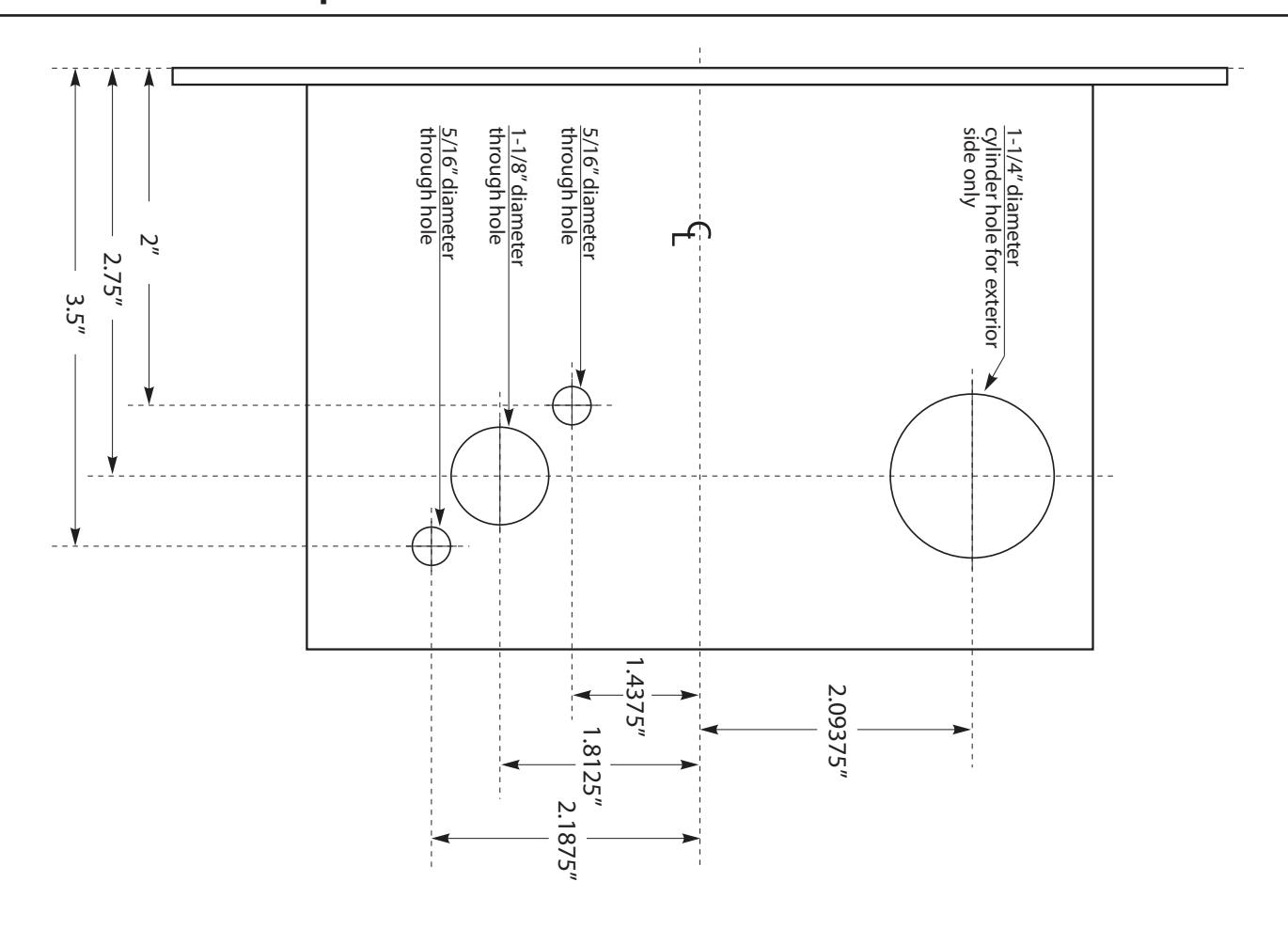

Template for ML90/ML91/ML94/ML95 Mortise Locks
