MD8600 Panic & 12-MD8600 Concealed Vertical Rod Exit Deivce for Metal Doors

• IF OUTSIDE PULL AND/OR OUTSIDE CONTROL IS USED, SEE APPROPRIATE METAL DOOR TEMPLATE FOR OUTSIDE DOOR PREP.
• REINFORCE HOLLOW METAL DOORS FOR TOP BOTTOM AND INNER CHASSIS WHERE HARDWARE IS TO BE ATTACHED
• SURFACE OF DOOR WHERE EXIT DEVICE IS TO BE APPLIED. MUST BE FLUSH

• DRILLED AND TAPPED IN FIELD
• TOLERANCE ON ALL FRACTIONAL DIMENSIONS ± 1/64"
• SEE TEMPLATE NO. 4569 ELECTROLYNX DETAILS WHEN NEEDED
• 8. SEE STRIKE TEMPLATE NO. 4449 FOR TOP STRIKE

100 Sargent Drive New Haven, CT 06511

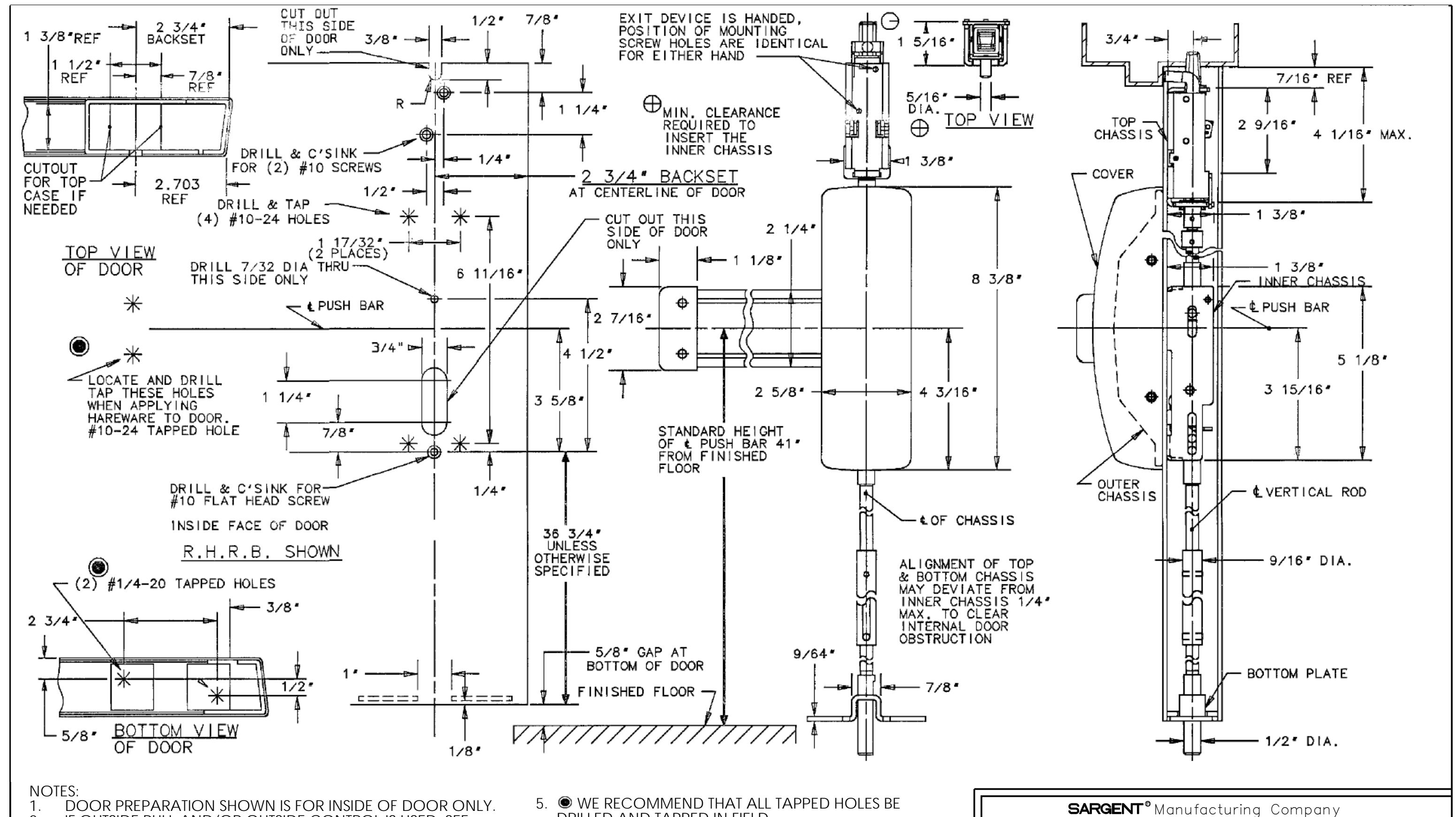

TEMPLATE: MD8600 PANIC & 12-MD8600 FIRE CONCEALED VERTICAL ROD EXIT DEVICE FOR METAL DOORS (INSIDE TRIM ONLY)

RELEASE DATE 8 JAN 15

TEMPLATE NO. 4445 J
