View PDFMD-31D Request-to-Exit PIR Sensor
The SDC MD31D Passive Infrared Detector is specifically designed for request-to-exit applications. The coverage field is internally pointable. When angled 14° down, coverage may be 5 x 6 feet at 7 feet high to 10 x 12 feet at 15 feet high. The MD31D projects a wrap around "U" pattern down and away from the door to inhibit tampering.
The MD31D complies with national fire and building code requirements for Access Controlled Egress Doors listed below:
- IBC International Code 1008.1.3.4
- IFC International Fire Code 1008.1.3.4
- NFPA 101 Life Safety Code 7.2.1.6.2
- NFPA 1.15.5.3.2
- BOCA National Building Code 1017.4.5
- SBCCI Standard Building Code 1012.7
- Adjustable 1-60 Second Time Delay
- May be Mounted to Frame Header, Wall or Ceiling
- Complies with NFPA Applications

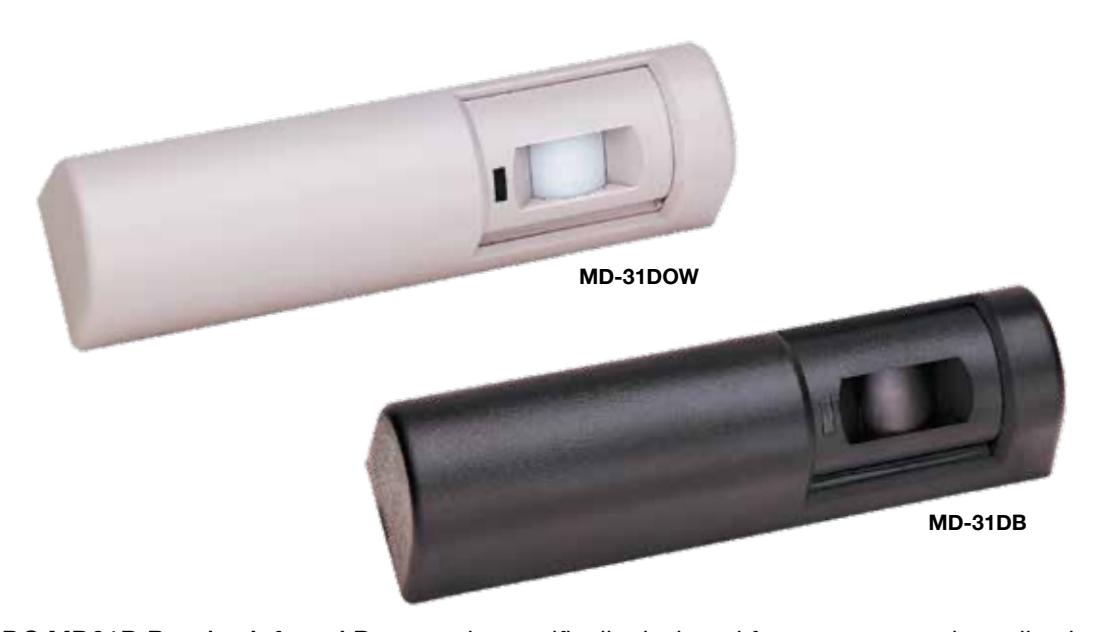

MD-31DOW PIR Motion Detector, White
MD-31DB
PIR Motion Detector, Black
SPECIFICATIONS
| Input | 12 or 24 VDC/VAC @ 26mA max. |
|---|---|
| Contact | 2 SPDT Dry, 1 Amp @ 30VDC |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Dimensions | 2"H x 7"W x 2"D |
CODE COMPLIANT EGRESS SENSOR
PIR egress sensor with failsafe mode (lock releases when power to PIR sensor is interrupted).
