RS200/300 Electric Strike Installation Instructions

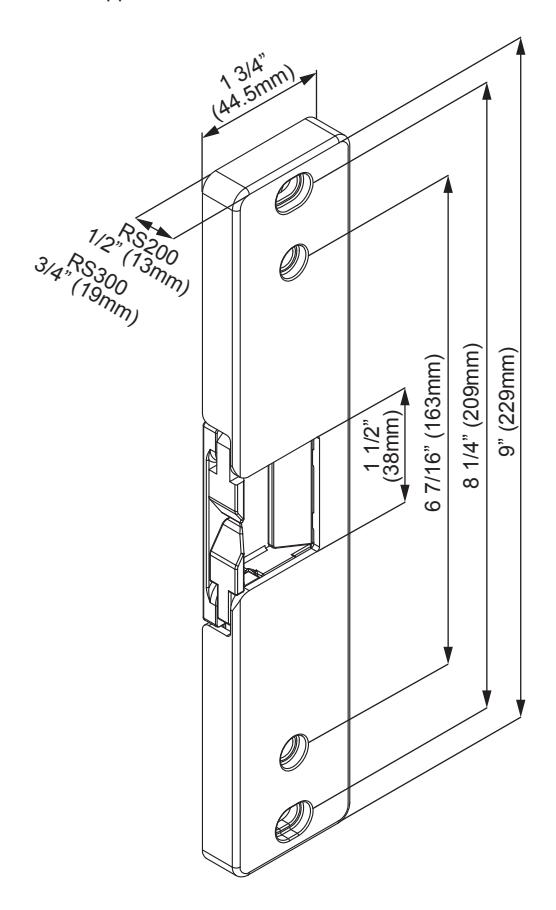

The RS200/300 Electric Strike is surface mounted and designed with the strength and durability for use with rim exit devices with a 1/2" (RS200) or 3/4" (RS300) throw Pullman latchbolt. No cutting on the frame is required for installation. Unit is field selectable for fail-safe and fail-secure operation, and for 12 or 24VDC. The RS200 has a 1/2" (12.7mm) thick metal housing. The RS300 has a 3/4" (19mm) thick metal housing.

	14°F to 120°F(-10°C~+49°C)
	1500 lbs
Dynamic Strength	70 ft-lbs
Endurance Rating	250,000 cycles
	Field selectable fail-safe and fail-secure Non-fire rated model

UL Requirements

• The RS200/300 series is intended to be used with UL Listed Exit hardware
• The RS200/300 series shall not impair the intended operation of an emergency exit
• The RS200/300 series shall not impair the operation of panic hardware mounted on the door

UL294	Destructive Attack: Level I Line Security: Level I
Performance Level	Standby Power: Level I Endurance: Level IV

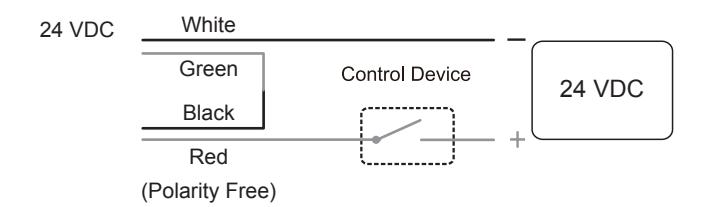

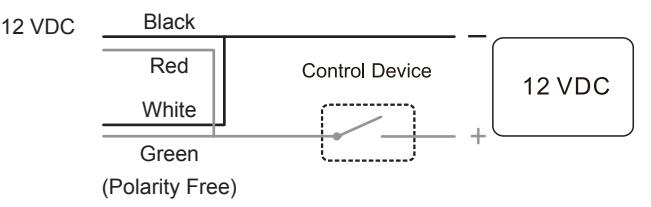

CAUTION

Overheated or burnt coils caused by incorrect voltage/wire harness combinations will not be covered under warranty

WARNING

Warnings indicate potentially hazardous conditions, which if not avoided or corrected, may cause death or serious injury.

CAUTION

Cautions indicate potentially hazardous conditions, which if not avoided or corrected, may cause minor or moderate injury. Cautions may also warn against unsafe practices.

NOTICE

Notices indicate a condition that may cause equipment or property damage only.

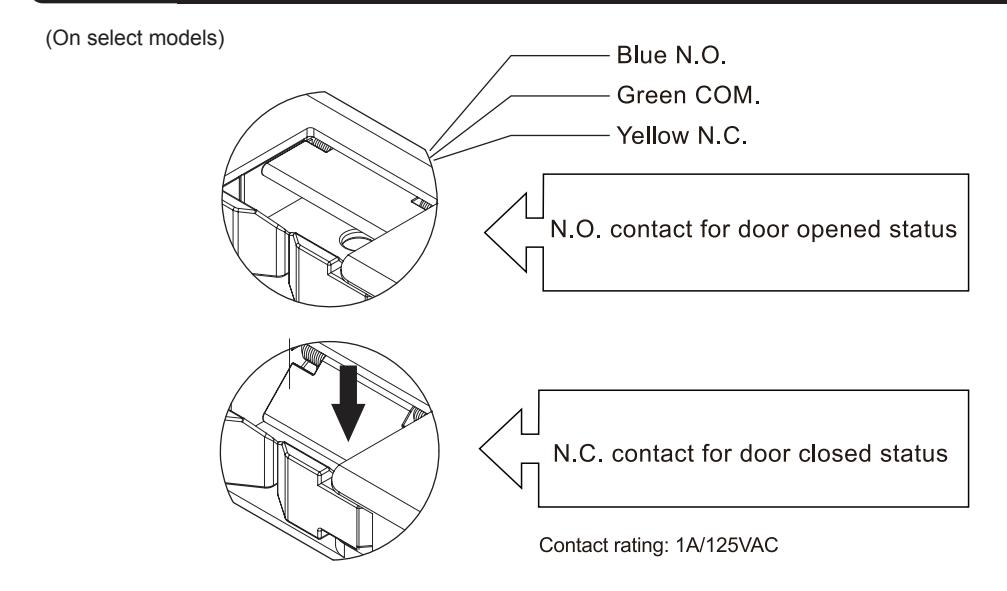

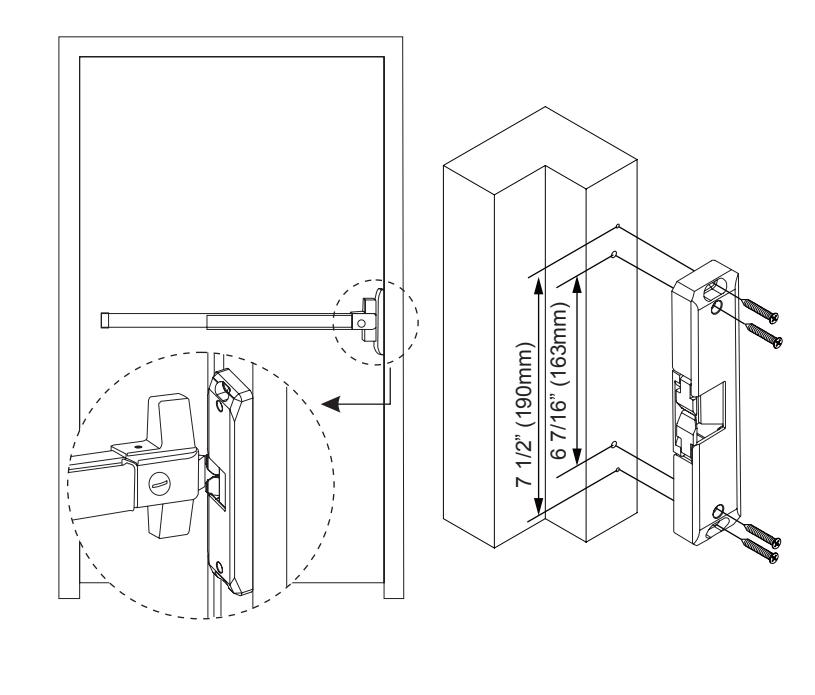

Surface Mount Installation

Frame application: Metal or Wood

Changing Fail-safe/Fail-secure

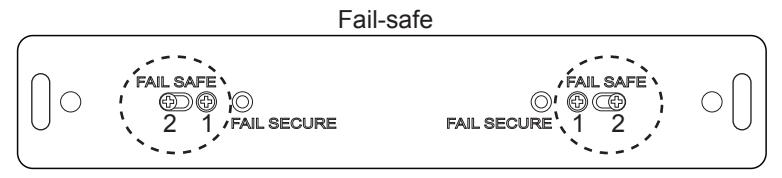

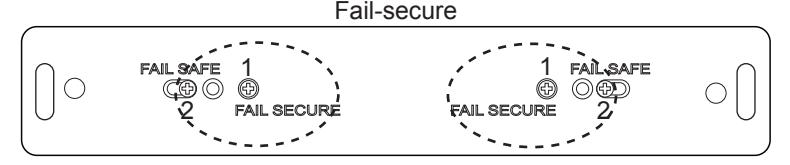

Fail-secure (factory default) or fail-safe is field selectable for NON-FIRE RATED MODELS ONLY by changing position of screws as shown.
