Locknetics PPH 50 Handicap Exit Push Plate Wiring Diagram 112110

PPH-50 (Handicap Exit Push Plate)

Exit Button

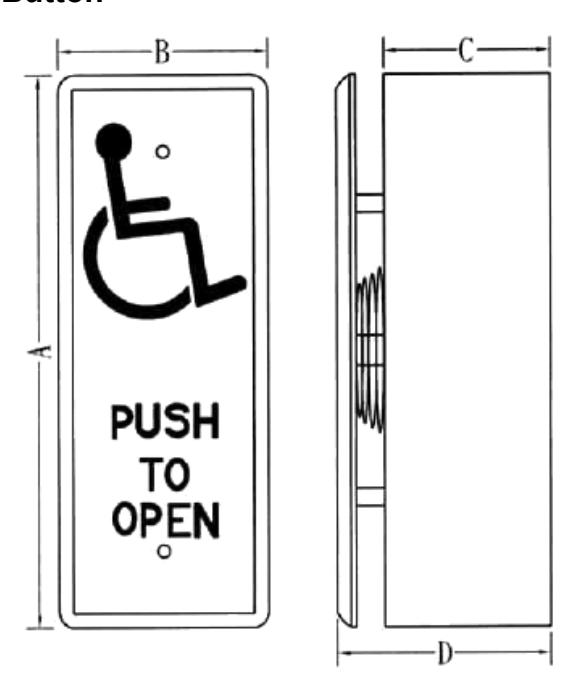

(A) Height: 4 1/2" (115mm) (B) Width: 1 22/32" (43.5mm)

(C) Depth without push plate: 1 3/8" (35mm)

(D) Depth with push plate: 1 3/4" (45mm)

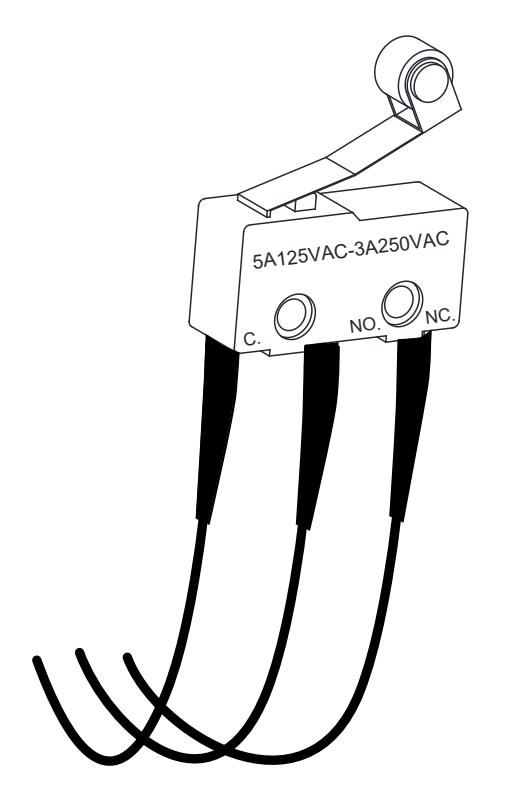

Micro-switch Wiring Diagram

• (1). Micro switch dry contacts ratings: 5A/125VAC – 3A/250VAC. Do not exceed the above rating for safe operations.
• (2). For Normally Open requirement, connect wires to NO and C. of micro switch.
• (3). For Normally Closed requirement, connect wires to NC and C. of micro switch.
