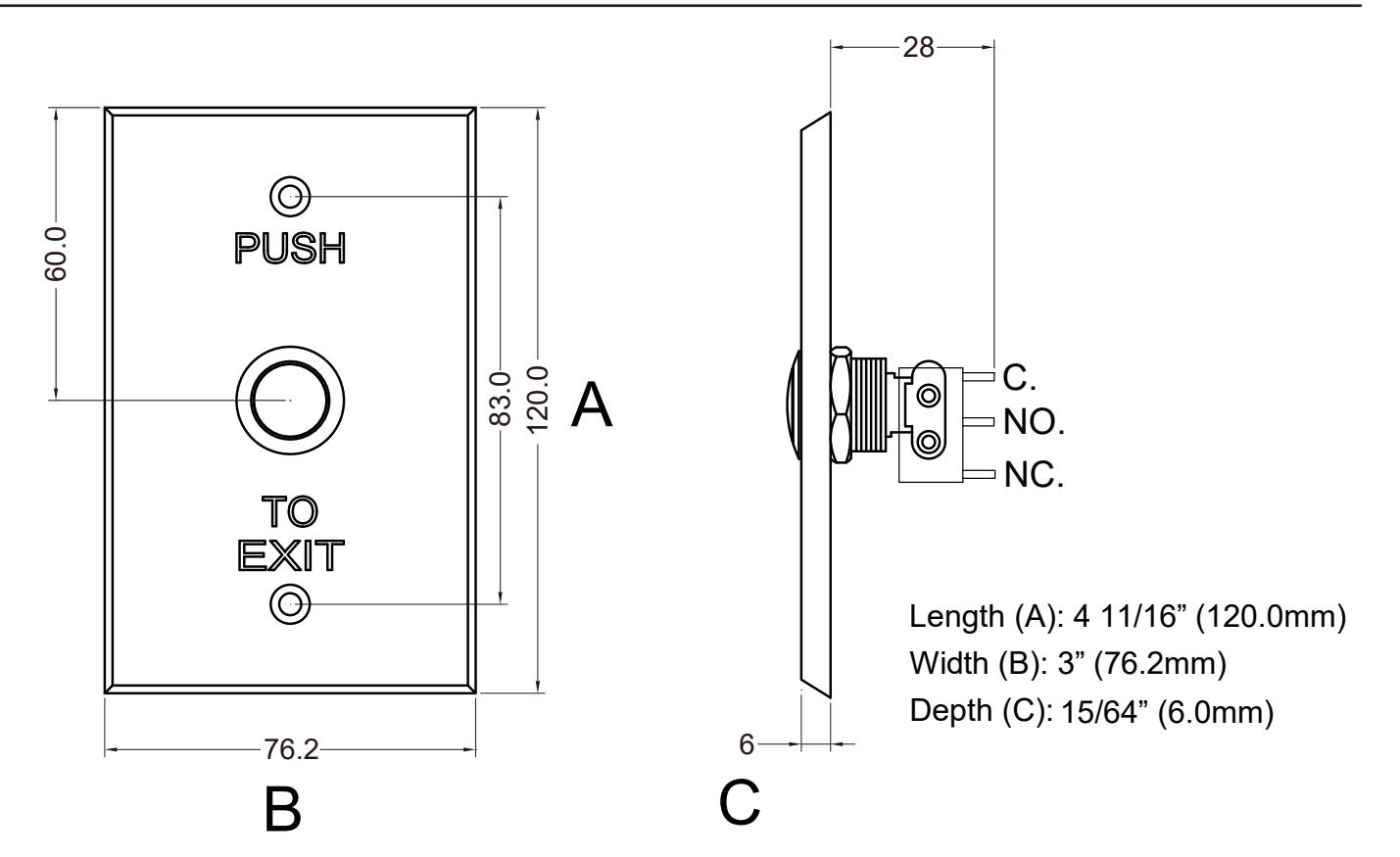

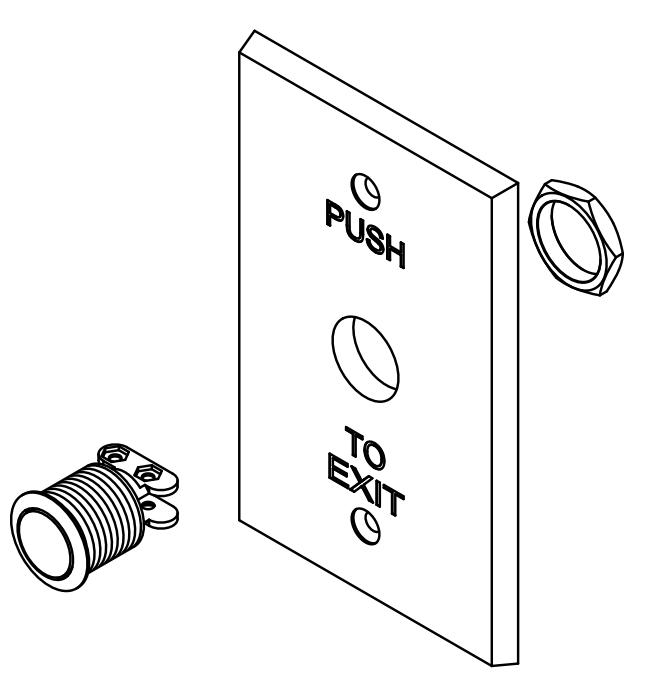

MPB-100 (Metal Push Button)

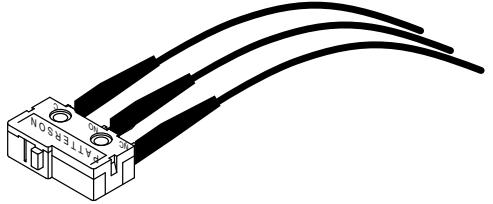

Contacts:

• 1. Micro switch dry contacts are rated 5A/125VAC & 3A/250VAC for safe operating, do not exceed this rating.
• 2. If you require a normally open switch, connect to C.
• 3. If you require a normally closed switch, connect to C. and NC. of micro switch.

Technical Information

For details regarding the limited warranty:

Customer Service

1-877-671-7011 www.allegion.com/us

Allegion 2018 47259491 Rev. 01/18-b

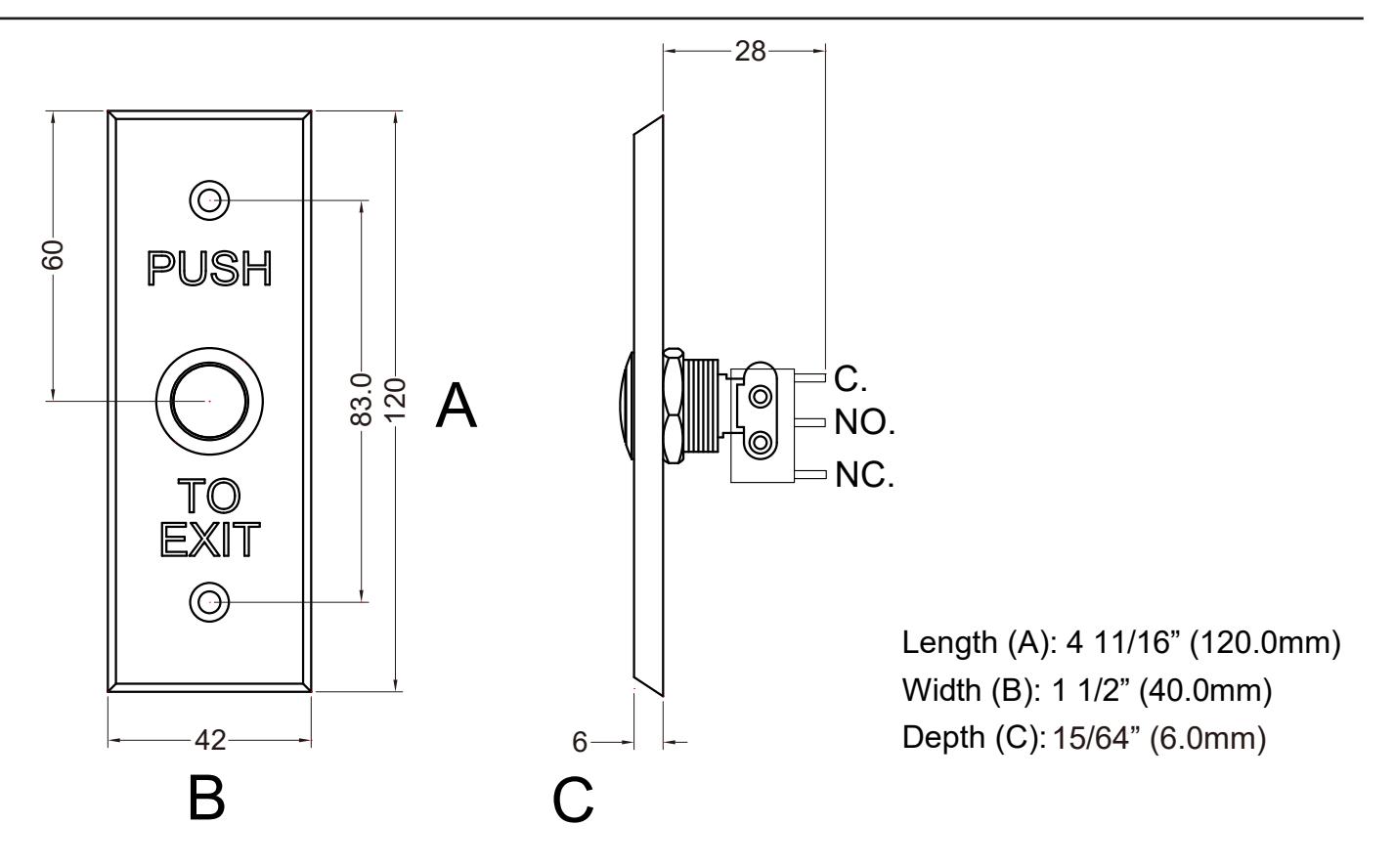

MPB-100N (Metal Push Button-Narrow Stile)

Contacts:

• 1. Micro switch dry contacts are rated 5Amp/125VAC & 3Amp/250VAC for safe operating, do not exceed this rating.
• 2. If you require a normally open switch, connect to C.
• 3. If you require a normally closed switch, connect to C. and NC. of micro switch.

(White) (Yellow) (Blue)

Technical Information
