Locknetics CSW 200 Counter Switch Installation Instructions 112095

Open the original PDF document

View PDF

CSW-200 Counter Switch Installation

Instructions

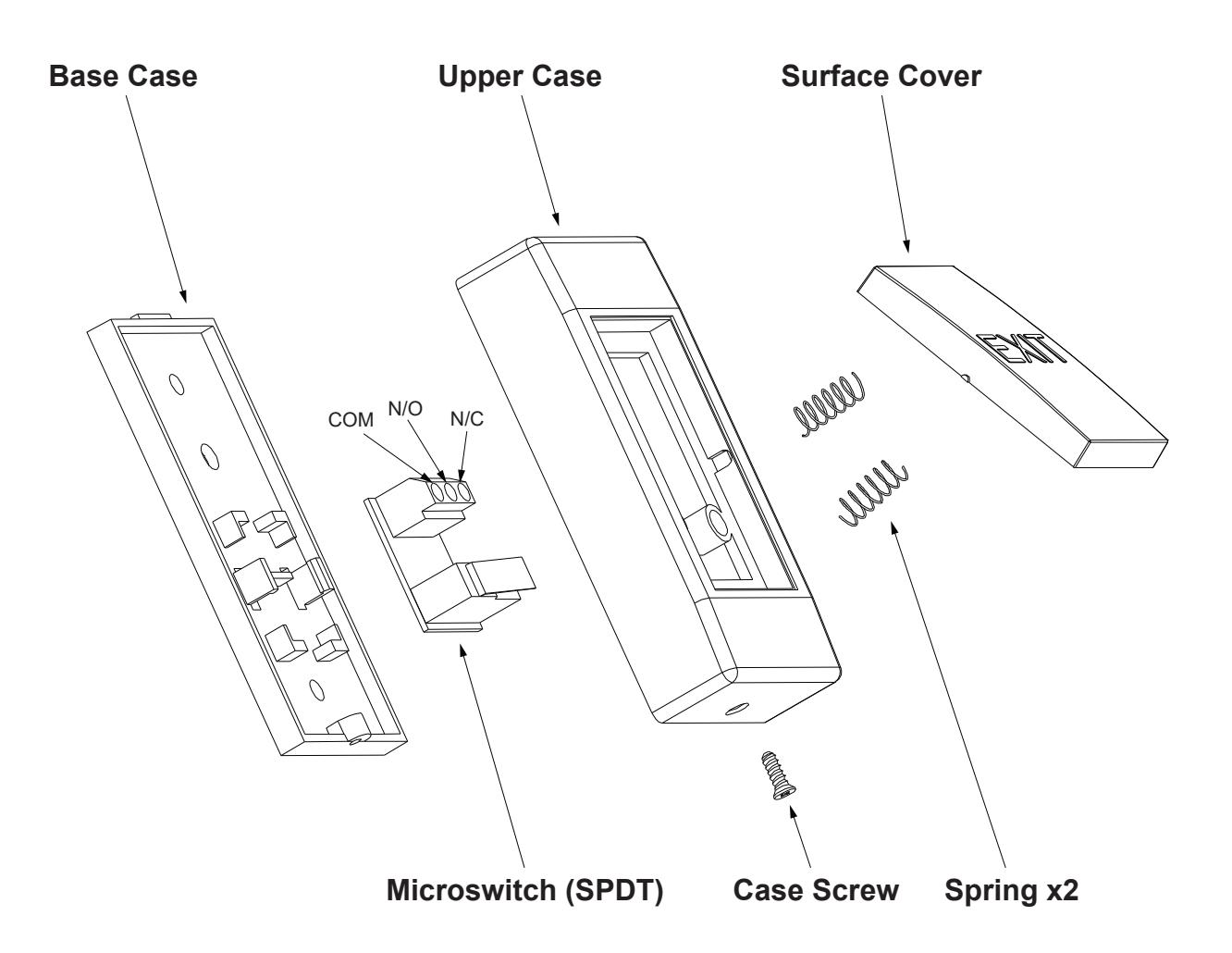

  • 1. Remove Case Screw.
  • 2. Remove Upper Case.
  • 3. Connect Microswitch as desired (rated @ 5A/250VAC).
  • If you require a Normally Open S/W, connect to COM and N/O.
  • If you require a Normally Closed S/W, connect to COM and N/C.
  • 4. Replace Upper Case.
  • 5. Insert Case Screw.

Allegion 2018 47259502 Rev. 01/18-a

©

For details regarding the limited warranty:

Customer Service

1-877-671-7011 www.allegion.com/us
