CSW-100 Counter Switch Installation

Instructions

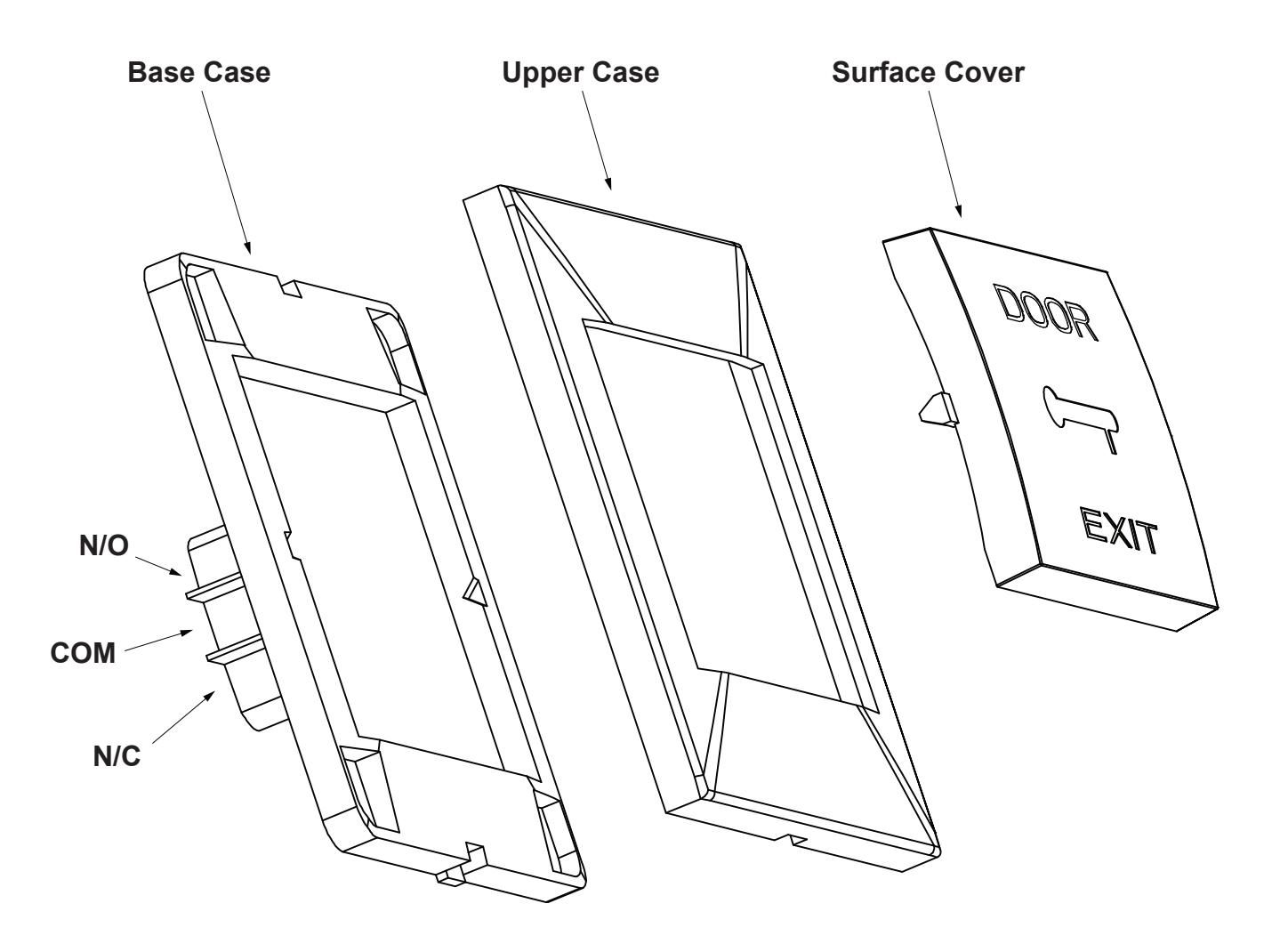

Connect Microswitch as desired (rated @ 5A/250VAC).

  • If you require a Normally Open S/W, connect to COM and N/O.
  • If you require a Normally Closed S/W, connect to COM and N/C.
