Electromagnetic locks Electric strikes

  • § UL listings
  • § Dual voltage 12 or 24 VDC
  • § Easy mounting bracket

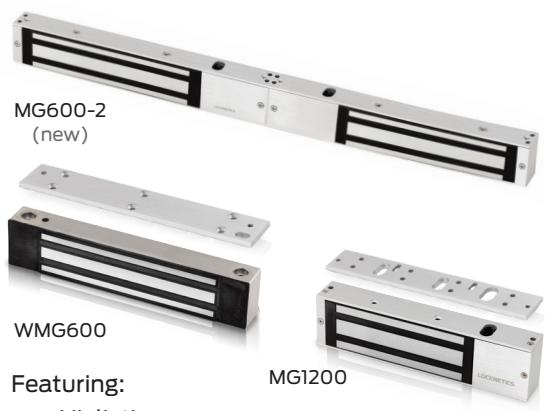

MG Series 600/1200lbs (single/double maglocks)

  • § Bi-colored LED bond sensor included
  • § Built-in voltage spike suppressor
  • § Delay timer and door status sensor switch options available

WMG600 and WMG1200 Series

  • § Sealed stainless steel housing
  • § Magnetic bond sensor included
  • § Built-in voltage spike suppressor

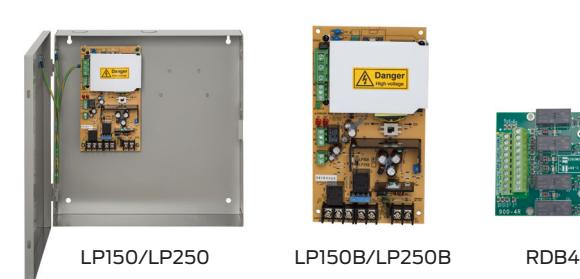

Power supplies (new)

The LP Series of power supplies include a 1.5 amp and 2.5 amp option to power various electronic access control devices and most single or double door applications.

Featuring:

  • § Field Selectable 12 or 24VDC
  • § UL294 and UL603 Listed
  • § Battery back up circuit integrated
  • § AC, DC and battery status LED indicators

Featuring:

  • § UL listings
  • § Dual voltage 12 or 24 VDC
  • § Field selectable fail-safe/fail-secure*
  • § Latch bolt monitoring (LBM) available in all strikes

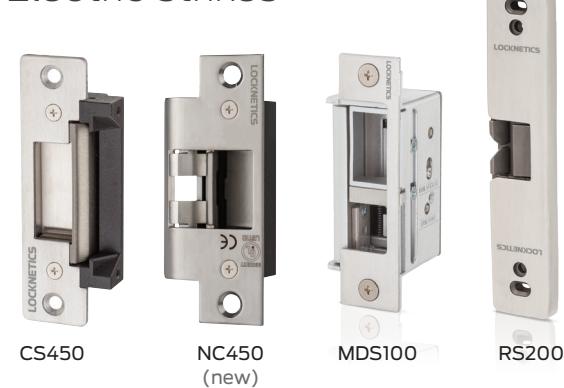

CS450 and NC 450 cylindrical strikes

  • § Low profile (9⁄16") with trim piece and mounting tabs
  • § No frame cutting required (NC450 only)

CS750 cylindrical strike

§ Low profile (3⁄4") with trim piece and mounting tabs

MDS100 mortise door strike (fire rated version available)

§ Heavy duty design with five faceplates included

RS200 rim strike

§ Low profile 1 ⁄2" Pullman latch throw with multiple spacers

RS300 rim strike (fire rated version available)

  • § 3⁄4" Pullman latch throw with multiple spacers
  • * Non-fire rated models

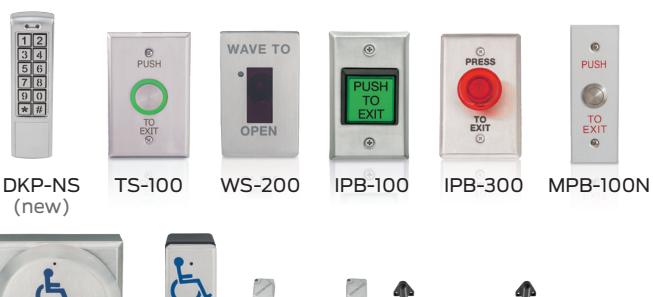

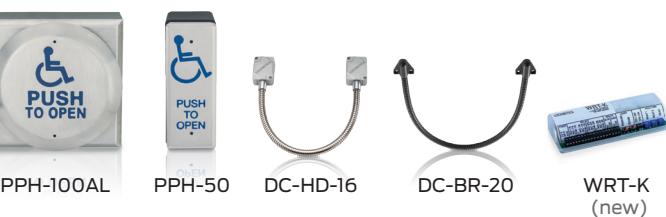

Access control accessories

A wide variety of products and options to complete your access control system needs.

About Allegion

Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands like CISA®, Interflex®, LCN®, Schlage®, SimonsVoss® and Von Duprin®. Focusing on security around the door and adjacent areas, Allegion produces a range of solutions for homes, businesses, schools and other institutions. Allegion is a $2 billion company, with products sold in almost 130 countries. For more, visit www.allegion.com.
