Locking Ladder Pulls – Cut Seet
Open the original PDF document
View PDF
Locking Ladder
- Aluminum 1-3/4" to 2-1/2"
- Wood or hollow metal 1-3/4" 2-1/4"
BENEFITS
-
Glass door applications secure the opening without bulky patch fittings or rails
-
Bolt concealed inside pull provides a clean, streamlined look
- Faster installation with simple door prep
-
Requires only 2 holes for half height pulls, 3 holes for full-height
- Custom shapes and sizes to fit you needs
-
Bolt concealed inside pull provides a clean, streamlined look
.050" x 1⅛" x 2¼"

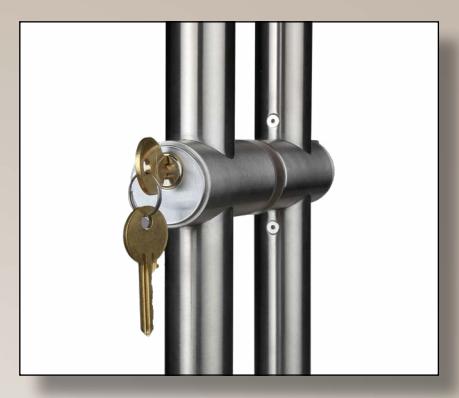

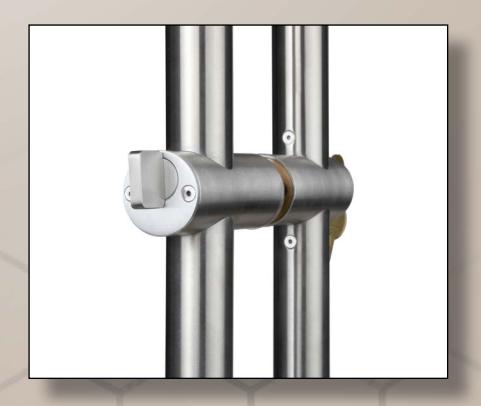

Standard Thumbturn

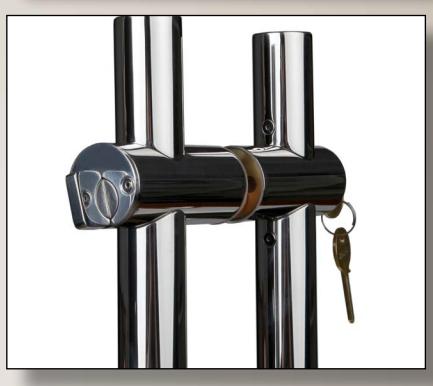

Easy Accessible Thumbturn
Model Options

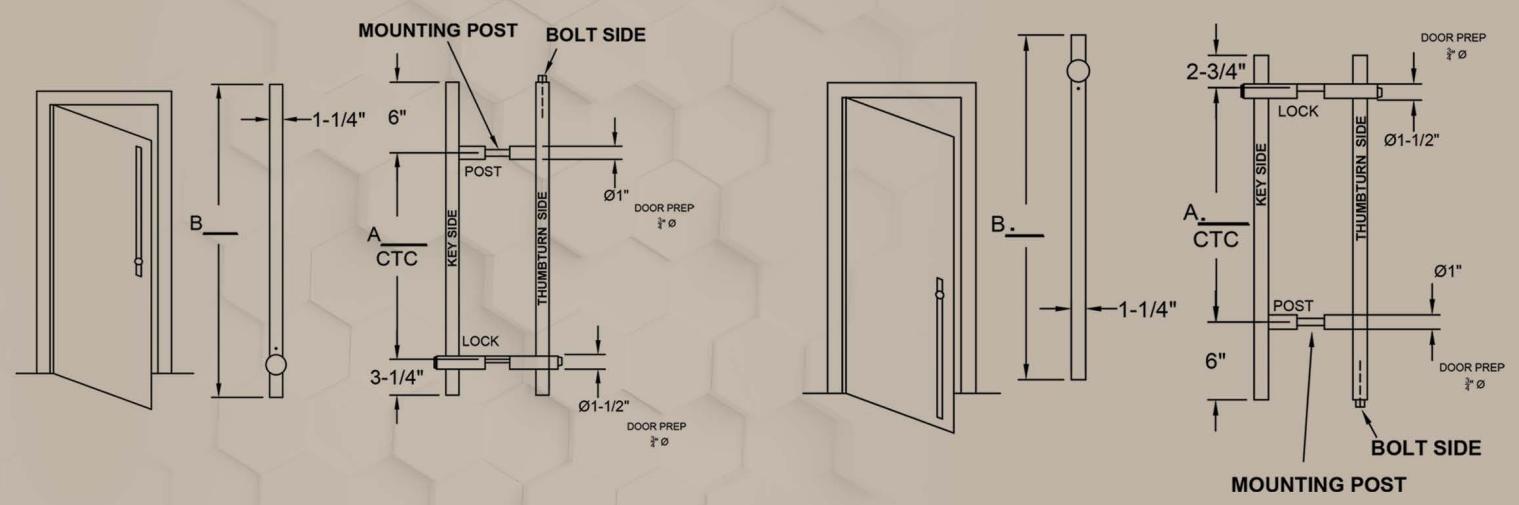

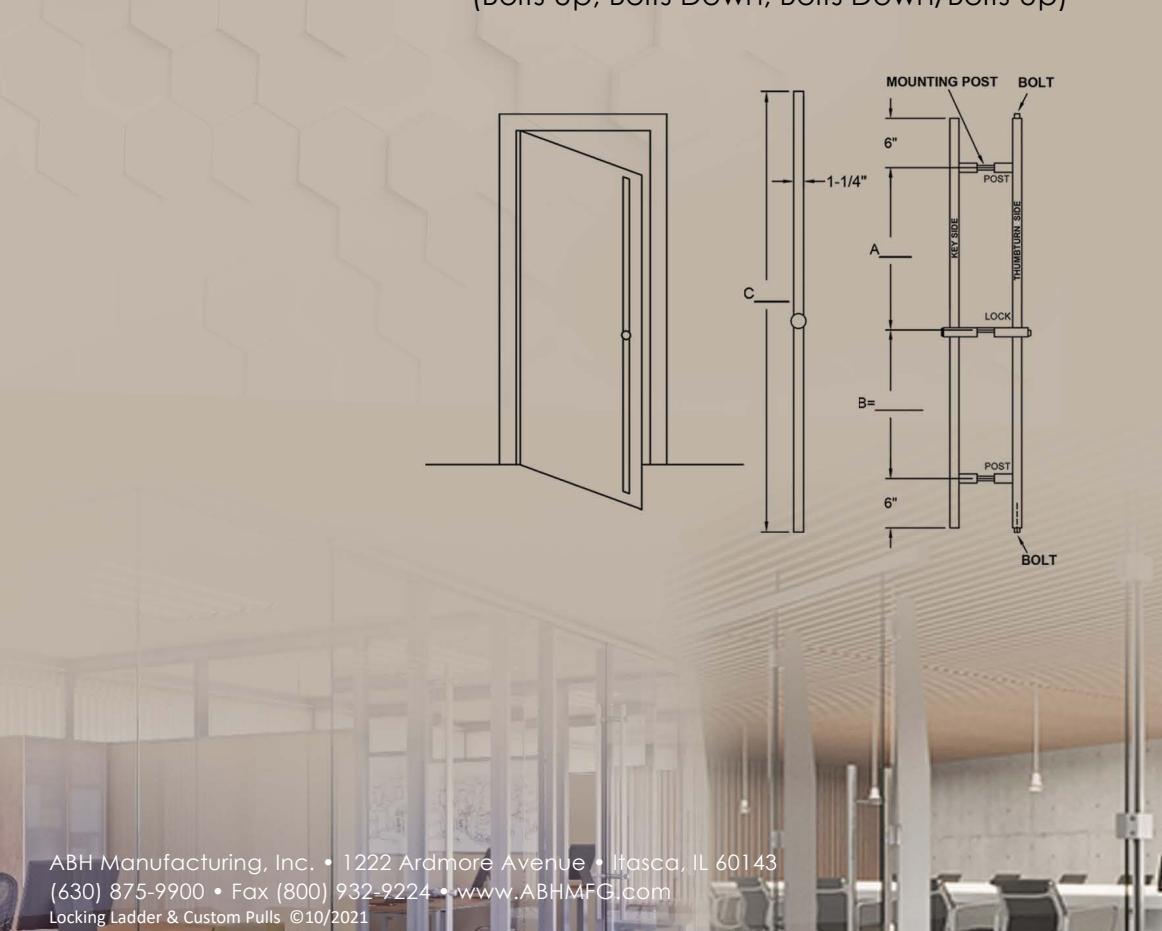

Full & Half Height Pull Options
FHBD, FHBU FHBUBD - Full Height Pull
(Bolts Up, Bolts Down, Bolts Down/Bolts Up)
Application Details
How to Order - Example Below
How to Order - Example Below
| Qty. | Series | Suffix | Finish |
Door
Material |
Door
Thickness |
Strike | Thumbturn | Cylinder | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ALLP | HHBU | US32D | Glass | 5/8" | 1870 | ADA | LC | |
BOLT OPTIONS
HHBU - Half Height Pull Bolts Up HHBD - Half Height Pull Bolts Down FHBU - Full Height Pull Bolts Up FHBD - Full Height Pull Bolts Down FHBUBD - Full Height Pull Bolts Up Bolts Down

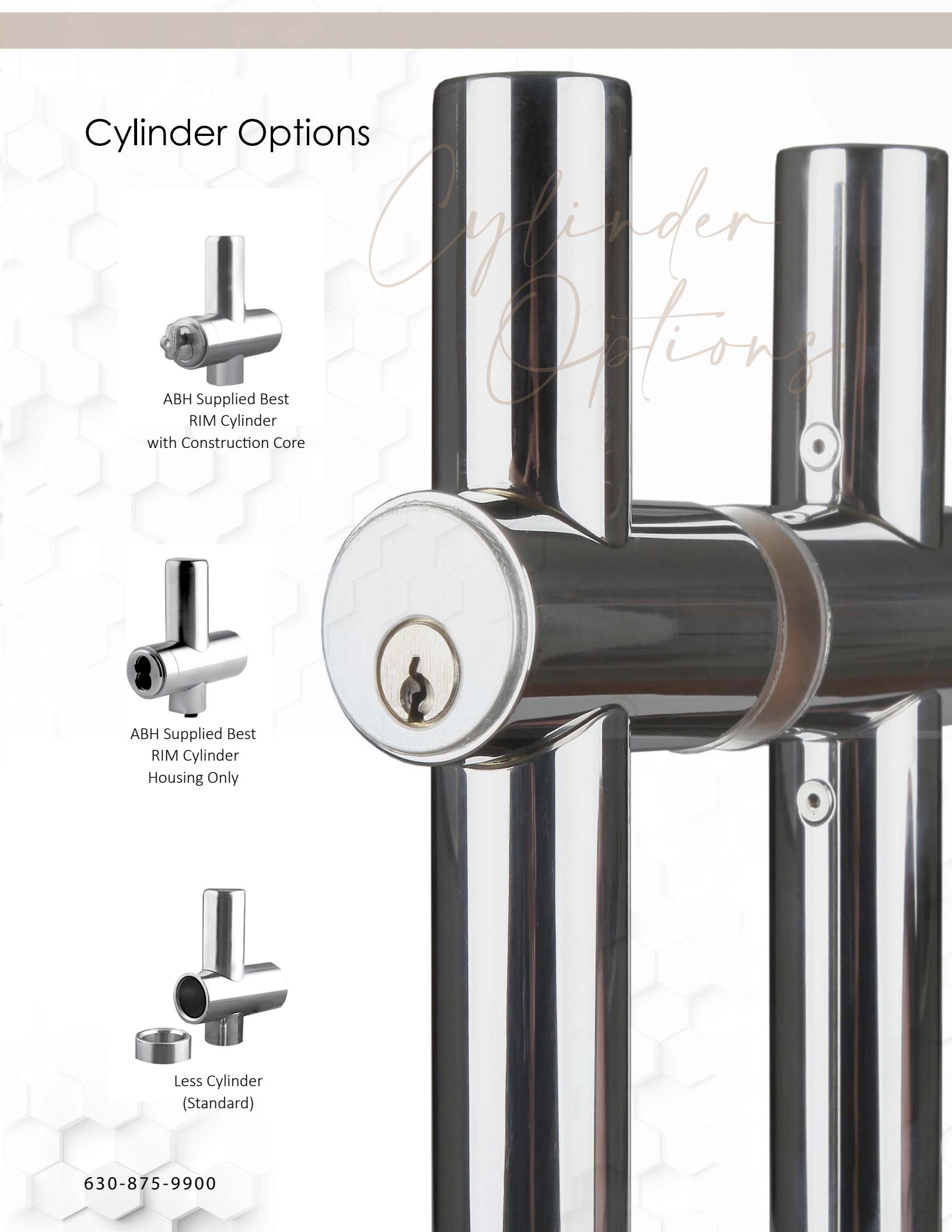

CYLINDER OPTIONS
ABRC - ABH Supplied Best Rim Cylinder ABSC - ABH Supplied Best SFIC Cylinder LC - Less Cylinder

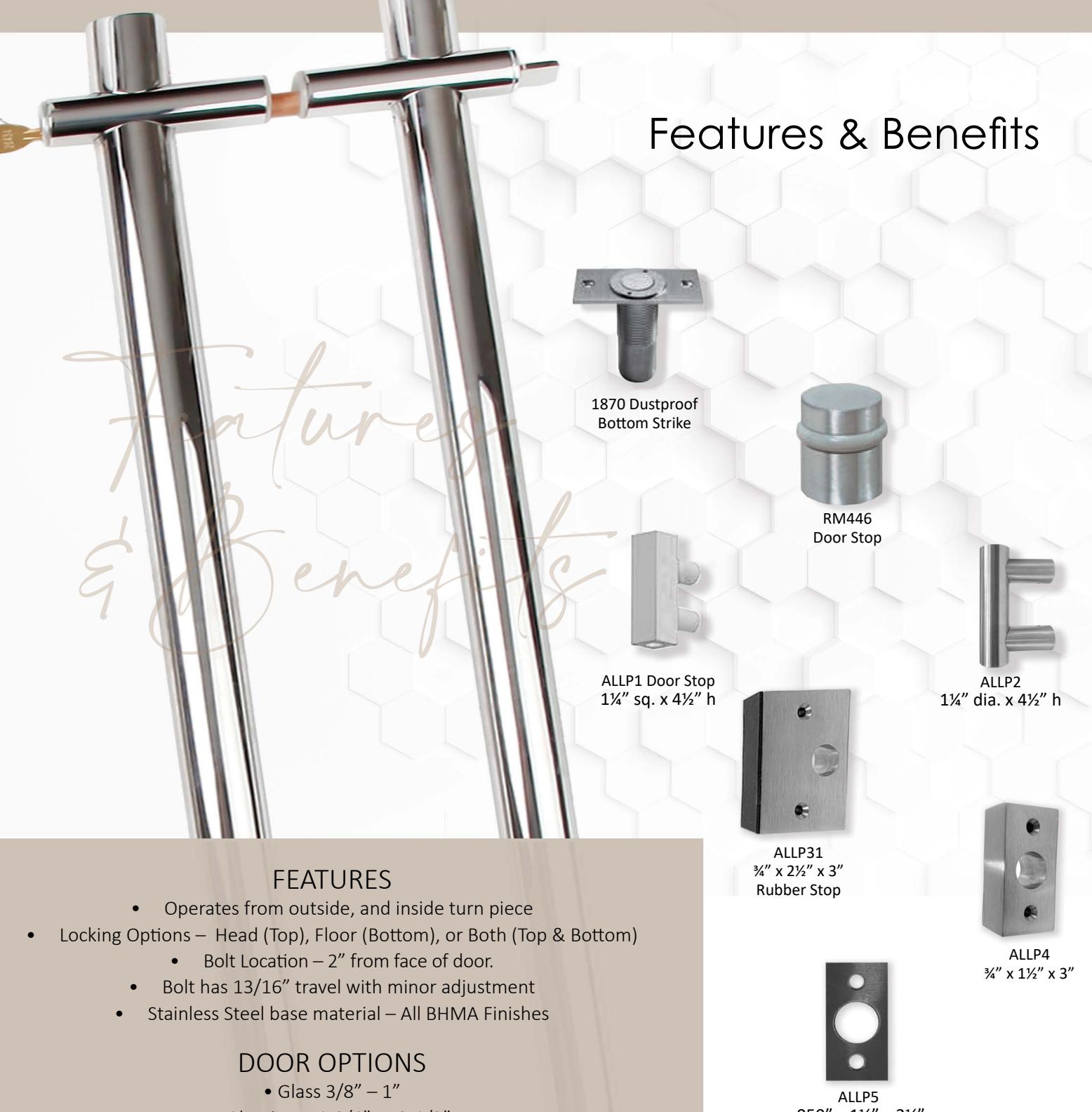

THUMBTURN, STRIKES & STOP OPTIONS
ADA - ADA Thumbturn STD - Standard Thumbturn RM446 - Door Stop 1867 - Dust proof Bottom Strike ALLP1, ALLP2, ALLP3, ALLP4, ALLP5
FINISH OPTIONS
US3 - Bright Brass Clear Coated US4 - Satin Brass Clear Coated US10 - Satin Bronze Clear Coated US10B - Dark Bronze Oxidized US32 - Bright Stainless Steel US32D - Satin Stainless Steel *Custom Finishes Available
ABH Manufacturing, Inc. • 1222 Ardmore Avenue • Itasca, IL 60143 (630) 875-9900 • Fax (800) 932-9224 • www.ABHMFG.com Locking Ladder & Custom Pulls ©10/2021
Model Options
Full & Half Height Pull Options Glass Doors
ABH provides the proper fasteners and washers for all the door applications to safely secure the pulls to the door
Locking Ladder Up or Down

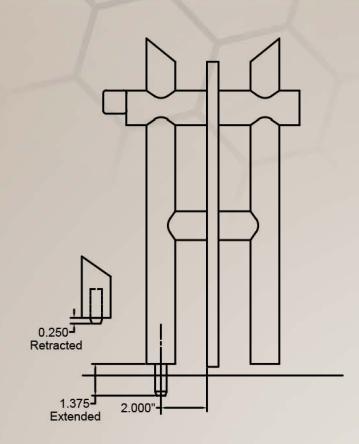

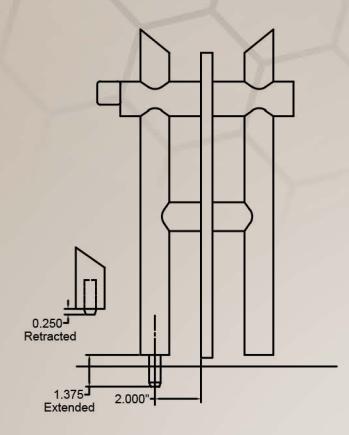

Bolt Projection Face of Door to Centerline of Bolt
HHBD/FHBD
Without Threshold When retracted bolt projects 1/4" When fully engaged bolt extends to 1-3/8"
Bolt Down Into Floor
Typical configuration shown

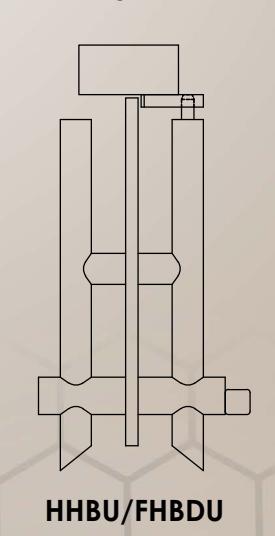

Bolt Up Into Header
Typical configuration shown
Application Details
How to Order - Example Below Aluminum, Wood, and Hollow Metal Doors
ABH provides the proper fasteners and washers for all the door applications to safely secure the pulls to the door

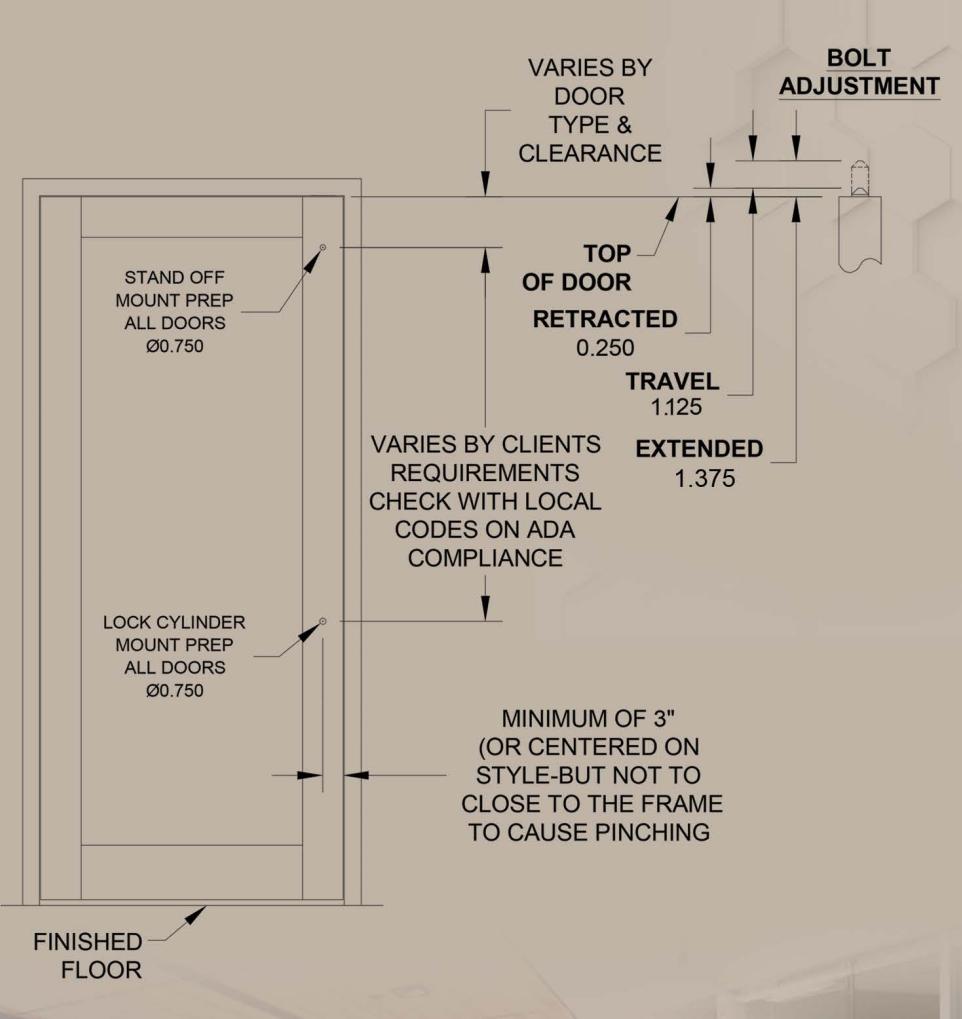

Locking Ladder Up or Down
Bolt Projection Face of Door to Centerline of Bolt
HHBD/FHBD
Without Threshold When retracted bolt projects 1/4" Wh en fully engaged bolt extends to 1-3/8"
Bolt Down Into Floor
Typical configuration shown

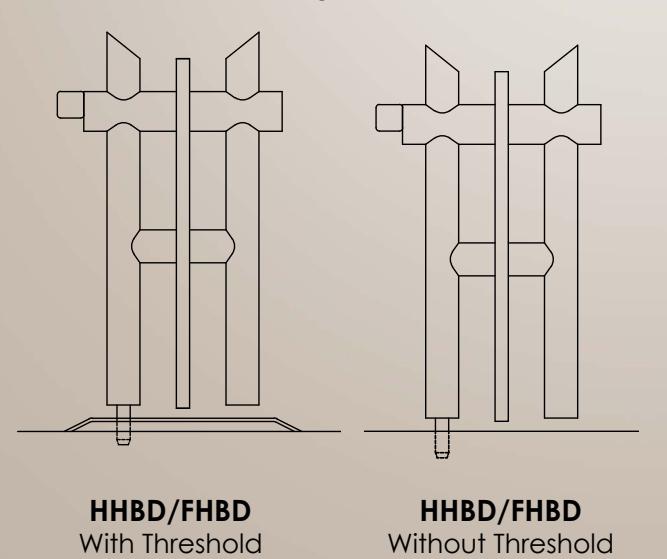

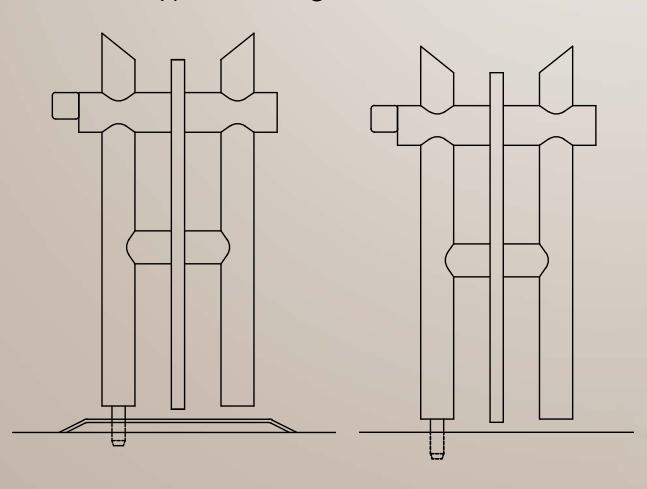

HHBD/FHBD With Threshold
Locking Ladder Up or Down
HHBD/FHBD
Aluminum Frame Head Detail with Surface Strike (single acting offset pivot) Typical configuration shown
Standard Finishes
Custom Finishes Available - Contact Factory
| PRODUCT | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Doo
r P ulls & Cu sto m P |
Doo
r P ulls & Cu sto m P |
Res
cue Ha rdw are |
Ele
ctri cal Po we r Tr ans fers |
Loc
kin g L add er P ulls |
Cu
sto m S trik es |
Ho
Ele lde ctro rs ma gne tic Doo r |
Co
Ver Su ver rfac tica s e B l Ro olts d P , Sl rote ide cto Bo rs & |
Co
ord ina tors & Lat che s |
Flu
sh Bol ts |
Ap
Wa plie ll S d S top top s, F s P loo ipe r St St ops ops , |
Sto
Ov erh ps ead Ho lde rs & |
Hos
pita l Pu sh/ Pul ls |
Spe
Ca m L cia ift H lty Hin ing ges es & |
Cu
sto m S lim Lin e P ivot s |
Piv
ots & Piv ot S ets |
Sta
Edg inle e G ss uar Ste ds el P in D oor |
Co
Sta ntin inle uou ss Ste s H el P ing es in & Ba |
Alu
min um Ge are d H ing |
||
| FINISHES | ulls | ulls | lts, | rrel | es | |||||||||||||||
| AM | CRYSTAL CLEAR - ANTI-MICROBIAL | • | ||||||||||||||||||
| S8/WSP | WHITE SUEDE POWDER COATING | • | • | • | • | • | • | • | • | • | ||||||||||
| S5 | PAINTED DARK BRONZE | • | • | • | • | • | • | |||||||||||||
| S4/BSP | BLACK SUEDE POWDER COATING | • | • | • | • | • | • | • | • | • | • | |||||||||
| S3 | PAINTED BRONZE | • | • | • | • | • | • | |||||||||||||
| S2 | PAINTED BRASS | • | • | • | • | • | • | |||||||||||||
| S1 | PAINTED ALUMINUM | • | • | • | • | • | ||||||||||||||
| USP | PRIME COAT | |||||||||||||||||||
| US32 | BRIGHT STAINLESS | • | • | • | • | • | • | • | • | • | • | • | • | |||||||
| US32D | SATIN STAINLESS STEEL | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | ||||
| US26D | SATIN CHROME (US32D) | • | • | • | • | |||||||||||||||
| US26 | BRIGHT CHROME (US32) | • | • | • | • | |||||||||||||||
| US17A | SATIN BLACK NICKEL CLEAR COAT | |||||||||||||||||||
| US15A | SATIN NICKEL ANTIQUE OXIDIZED | |||||||||||||||||||
| US15 | SATIN NICKEL | |||||||||||||||||||
| US14B | BRIGHT BLACK NICKEL | |||||||||||||||||||
| US14 | BRIGHT NICKEL (US32)S | |||||||||||||||||||
| US10B | BRONZE OILED | • | • | • | • | • | • | • | • | • | • | |||||||||
| US10A | ANTIQUE BRONZE LACQUERED | • | ||||||||||||||||||
| US10 | SATIN BRONZE | • | • | • | • | • | • | • | • | • | • | |||||||||
| US9 | BRIGHT BRONZE - CLEAR COATED | • | ||||||||||||||||||
| US5 | BRASS SATIN OXIDIZED BLACKENED | |||||||||||||||||||
| US4 | SATIN BRASS | • | • | • | • | • | • | • | • | • | • | • | ||||||||
| US3 | BRIGHT BRASS | • | • | • | • | • | • | • | • | • | • | • | ||||||||
| ABH 628 | CLEAR ANODIZED (US28) | • | • | • | • | |||||||||||||||
| ABH | LIGHT BRONZE ANODIZED | • | ||||||||||||||||||
| ABH | MEDIUM BRONZE ANODIZED | • | ||||||||||||||||||
| ABH | DARK BRONZE ANODIZED | • | ||||||||||||||||||
| ABH | STAT BRONZE ANODIZED | • | ||||||||||||||||||
| ABH | BLACK ANODIZED | • | ||||||||||||||||||
| ABH | GOLD ANODIZED | • | ||||||||||||||||||
| ABH | CUSTOM ANODIZED FINISHES | • | ||||||||||||||||||
ABH STANDARD FINISHES 8/2/2021
