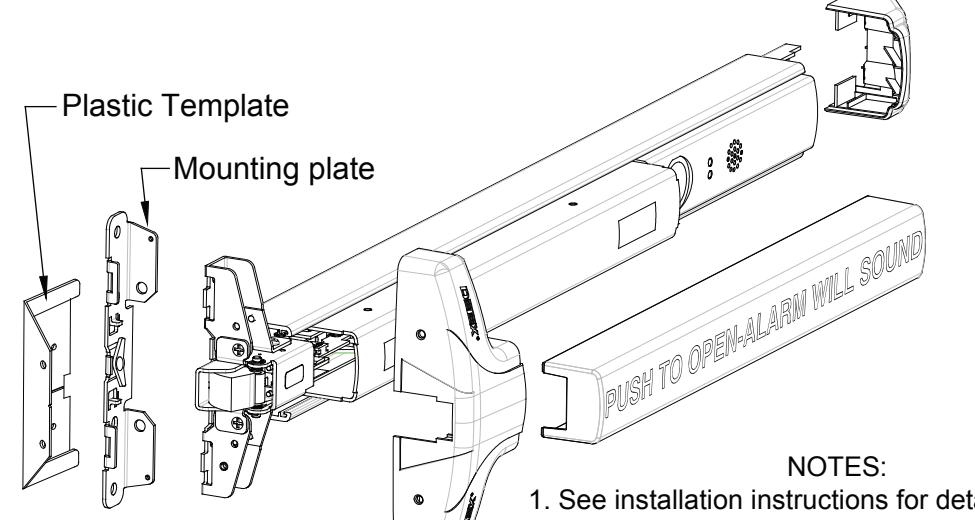

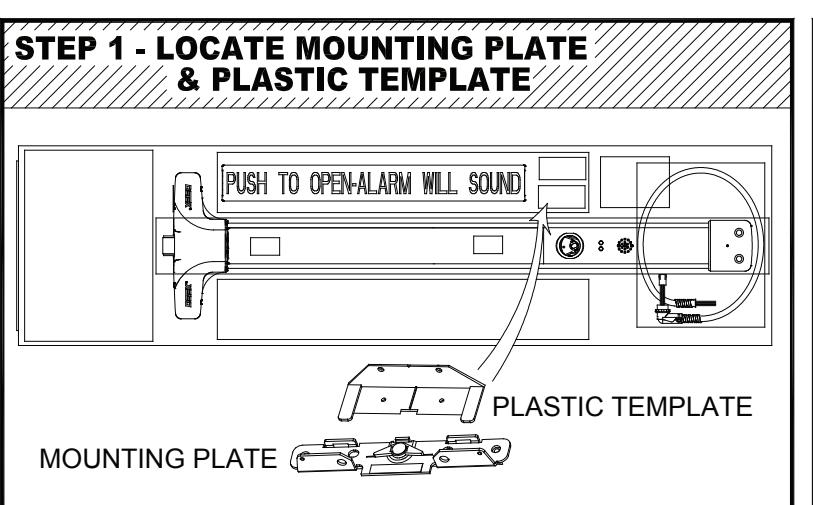

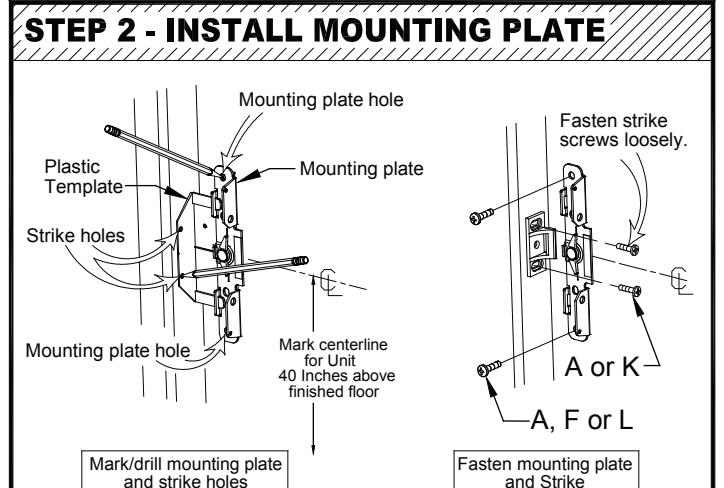

View PDFQUICK INSTALL GUIDE USING PLASTIC TEMPLATE AND MOUNTING PLATE VALUESERIES®

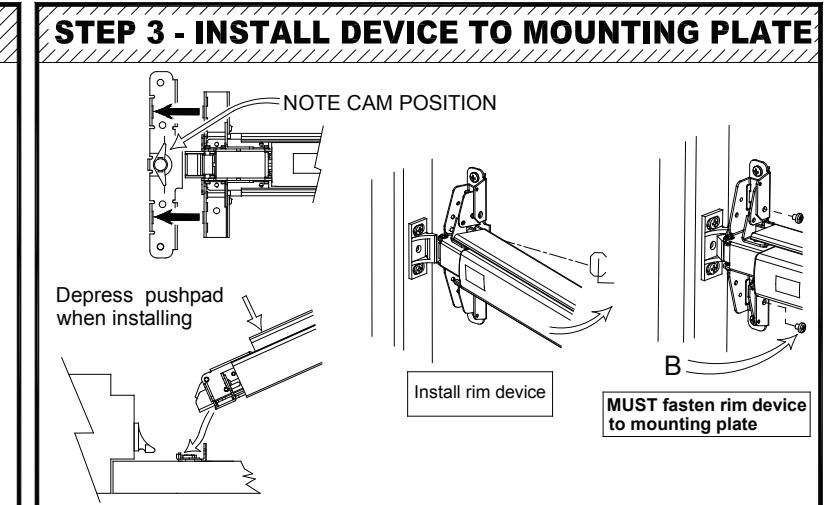

V40/V4000 Series Rim Device (Refer to Installation Manual for Detail)
- 1. See installation instructions for detailed installation, operation and electrical options (including glass door applications).
- 2. Refer to outside trim instructions.
- 3. Hurricane models refer to installation booklet for special requirements.
- 4. Optional sex bolt kit: p/n SN1-X.

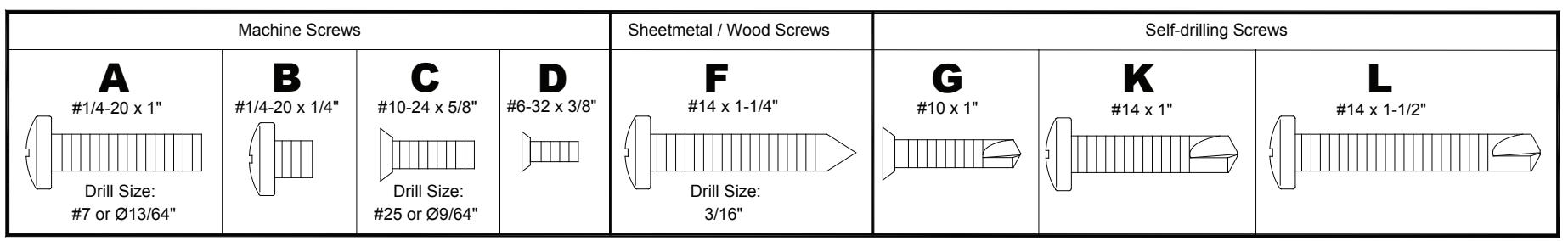

- 5. Optional wood door screw kit: p/n 103991.
101316 10-25-10(YELLOW SHEET)
