LockeyUSA P Series Mechanical Lock Templates 1

Important Template Disclosure:

File may NOT print at 100% accuracy. Please refer to measurements when drilling final holes.

Please email info@lockeyusa.com for a faxed or mailed template due to .pdf file printing with possible inaccuracies.

PLEASE CHECK MEASUREMENTS BEFORE DRILLING!

Please scroll down to view templates.

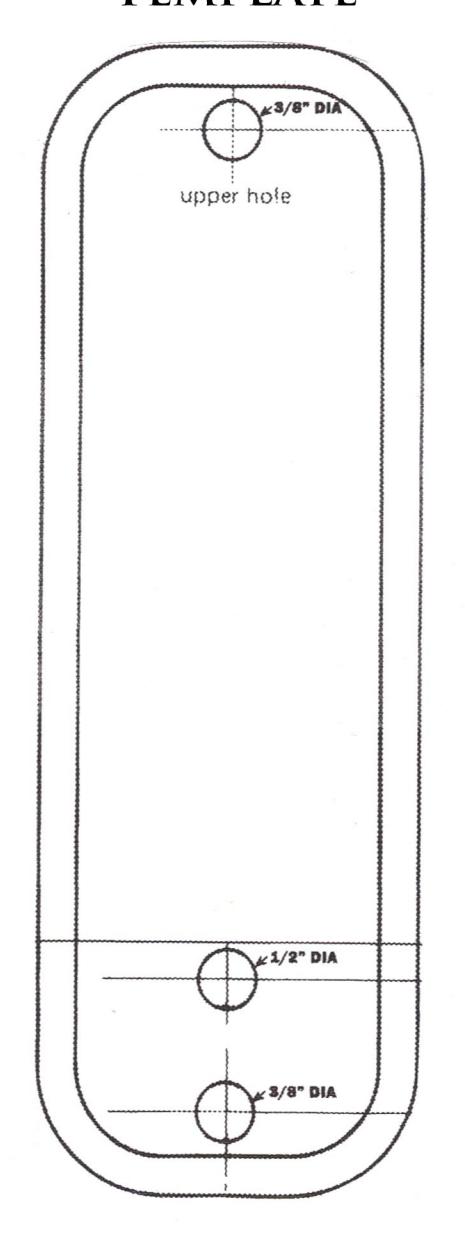

230-P/285-P TEMPLATE

310-P TEMPLATE 10^m/mφ TROU DU HAUT TROU DU HAUT $10^\{\backslash text\{m\}\}/\backslash text\{m\}\backslash phi$
