LOCK CATALOG vol. 1902

DEADBOLT LOCKS

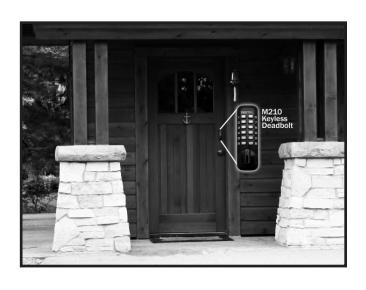

M210 2210 www.LockeyUSA.com/product/M210 www.LockeyUSA.com/product/2210

Lifetime Mechanical Warranty!

Mechanical, keyless deadbolt lock Installs in minutes with EZ Plates Thumbturn on exterior & interior Covers standard 2 1/8" hole Adjustable deadbolt backset Door Thickness: 1 1/8" to 2" Dimensions: 5" L x 1 1/2" W x 1 7/8" D OPTIONS:

Keypad:

Single Combination, Double Combination (DC) Finish:

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB),

Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

2210KO www.LockeyUSA.com/product/2210 SL910

Limited Lifetime Mechanical

Warranty!

Mechanical, keypad, key override deadbolt lock Knob on exterior, thumbturn on interior Covers standard 2 1/8" hole Adjustable deadbolt backset Door Thickness: 1 1/8" to 2" Schlage keyway

Dimensions: 5 5/8″ L x 1 5/8″ W x 2 1/8″ D OPTIONS:

Keypad:

Single Combination, Double Combination (DC) Finish:

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB),

Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

SL910 www.LockeyUSA.com/product/SL910 E910 www.LockeyUSA.com/product/E910

Electronic/mechanical combination deadbolt Manual drive deadbolt saves power Covers standard 2 1/8" hole Key override (Kwikset keyway) LED Illumination for easy operation in the dark Up to 20 user codes, 4-10 digits in length Low battery alarm Slim/small interior lock body

Dimensions: Exterior: 4 1/16" L x 2 3/4" W x 1 11/16" D Interior: 3 1/2" L x 2 9/16" W x 1 1/4" D

OPTIONS: Finish:

Antique Brass (AB), Bright Brass (BB), Oil Rubbed Bronze (OIL), Satin Nickel (SN)

E915 www.LockeyUSA.com/product/E915

Battery-powered electronic deadbolt lock Remote capable (1 included, up to 5 capable) Up to 6 user codes, 4-10 digits in length Key Override (Schlage keyway) Auto-locking function Covers standard 2 1/8" hole LED Illumination for easy operation in the dark Disposable (one-time use) code capable Dimensions:

Exterior: 5 1/8″ L x 3 1/8″ W x 1 3/8″ D Interior: 7 1/4″ L x 2 7/8″ W x 1 3/4″ D OPTIONS:

Finish:

Antique Brass (AB), Bright Brass (BB), Satin Nickel (SN), Antique/Oil Rubbed Bronze (OIL)

Images of available lock finishes, descriptions of the various options & more product information can be found on the inside back cover of this catalog.

Lifetime Mechanical Warranty!

Mechanical, keyless deadbolt lock Knob on exterior, thumbturn on interior Covers standard 2 1/8" hole Adjustable deadbolt backset Door Thickness: 1 1/8" to 2"

Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D OPTIONS:

Keypad:

Single Combination, Double Combination (DC) Key Override Available ( 2210KO, 2210DCKO) Finish:

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

3210

www.LockeyUSA.com/product/3210

Lifetime Mechanical Warranty!

Mechanical, keyless deadbolt lock Oversized knob on exterior & interior Covers standard 2 1/8" hole Adjustable deadbolt backset Door Thickness: 1 1/8" to 2" Dimensions: 6 1/4" L x 1 3/4" W x 2" D

OPTIONS: Keypad:

Single Combination, Double Combination (DC) Finish:

Only available in Marine Grade finish. Closely resembles the color of a Satin Chrome (26D) finish. Recommended for saltwater environments where the lock will sustain consistent exposure to the elements. Longer lifetime than a standard finish.

Battery-powered electronic deadbolt lock Remote capable (1 included, up to 5 capable) Up to 6 user codes, 4-10 digits in length Key Override (Schlage keyway) Auto-locking function Covers standard 2 1/8" hole LED Illumination for easy operation in the dark Dimensions:

Interior: 7 1/4″ L x 2 3/4″ W x 1 3/4″ D OPTIONS: Finish:

Antique Brass (AB), Bright Brass (BB), Satin Chrome (SC), Satin Nickel (SN), Antique/Oil Rubbed Bronze (OIL)

Exterior: 5 1/2″ L x 3 1/8″ W x 1 3/8″ D

EB915 www.LockeyUSA.com/product/EB915

Bluetooth App Compatible!

Battery-powered electronic deadbolt lock Bluetooth connectivity (up to 70 feet) Up to 6 user codes, 4-10 digits in length Administrator Usage Log, records unlocks via app Key Override (Schlage keyway) Auto-locking function Covers standard 2 1/8" hole LED Illumination for easy operation in the dark

Dimensions:

Exterior: 5 1/2″ L x 3 1/8″ W x 1 3/8″ D Interior: 7 1/4″ L x 2 3/4″ W x 1 3/4″ D OPTIONS:

Finish:

Antique Brass (AB), Bright Brass (BB),

Satin Nickel (SN), Antique/Oil Rubbed Bronze (OIL)

SPRING LATCH LOCKS

For complete product information, including a full list of features, dimensions & specifications, visit LockeyUSA.com.

1150/1600 M230 www.LockeyUSA.com/product/1150 www.LockeyUSA.com/product/M230 www.LockeyUSA.com/product/1600

1150: Heavy-duty levers on exterior & interior 1600: Heavy-duty knobs on exterior & interior Auto-locking with passage function Covers standard 2 1/8″ hole Adjustable backset deadlocking spring latch

Door Thickness: 1 1/8" to 2" LIFETIME MECHANICAL WARRANTY

1150 Dimensions: 7 5/16″ H x 2 3/16″ W x 2 5/16″ D 1600 Dimensions: 7 5/16″ H x 2 3/16″ W x 2 11/16″ D

OPTIONS: Keypad:

Single Combination, Double Combination (DC) Finish:

Jet Black (JB), Oil Rubbed Bronze (OIL), Marine Grade (MG)

2830 www.LockeyUSA.com/product/2830 2835 www.LockeyUSA.com/product/2835

Mechanical, keyless deadlocking spring latch lock

Lifetime Mechanical

Auto-locking with passage function Knobs on exterior & interior Covers standard 2 1/8" hole Adjustable backset deadlocking spring latch Door Thickness: 1 1/8" to 2" Dimensions: 5 5/8" L x 1 5/8″ W x 2 1/4″ D OPTIONS:

Keypad:

Single Combination, Double Combination (DC) Finish:

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Warranty!

NEW! NEW!

Mechanical, keyless deadlocking spring latch Auto-locking with passage function Knobs on exterior & interior Covers standard 2 1/8" hole Adjustable backset deadlocking spring latch Door Thickness: 1 1/8" to 2" Dimensions: 6 5/16" L x 1 3/4" W x 2 1/4" D OPTIONS: Keypad:

Lifetime Mechanical

Warranty!

Single Combination, Double Combination (DC) Finish:

Jet Black Marine Grade (JBMG), Oil Rubbed Bronze (OIL), Satin Chrome Marine Grade (SCMG), Satin Nickel (SN)

E930/E985 www.LockeyUSA.com/product/E985 E995 www.LockeyUSA.com/product/E995 www.LockeyUSA.com/product/E930

Battery-powered electronic spring latch lock Remote capable (1 included, up to 5 capable) Up to 6 user codes, 4-10 digits in length Key Override (Schlage keyway) Auto-locking function

Covers standard 2 1/8" hole LED Illumination for easy operation in the dark Customizable programming code for setup

Ability to temporarily disable user codes Low battery indicator Dimensions: 5 1/2" L x 3 1/8" W x 2 1/2" D

OPTIONS:

Finish:

Antique Brass (AB), Bright Brass (BB), Satin Chrome (SC), Satin Nickel (SN), Antique/Oil Rubbed Bronze (OIL)

Lifetime Mechanical Warranty!

Mechanical, keyless deadlocking spring latch lock Automatically locks when door is closed Knobs on exterior & interior Covers standard 2 1/8" hole Adjustable backset deadlocking spring latch Door Thickness: 1 1/8" to 2" Dimensions: 5″ L x 1 1/2″ W x 1 7/8″ D

OPTIONS: Keypad:

Single Combination, Double Combination (DC) Finish:

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Mechanical, keyless deadlocking spring latch lock Auto-locking with passage function Levers on exterior & interior Covers standard 2 1/8" hole Adjustable backset deadlocking spring latch Door Thickness: 1 1/8" to 2" Dimensions: 5 5/8" L x 1 5/8″ W x 2 1/4″ D OPTIONS:

Lifetime Mechanical

Single Combination, Double Combination (DC) Finish: Antique Brass (AB), Bright Brass (BB),

Bright Chrome (BC), Jet Black (JB), Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Keypad:

3830 www.LockeyUSA.com/product/3830 3835 www.LockeyUSA.com/product/3835

Mechanical, keyless deadlocking spring latch

Adjustable backset deadlocking spring latch

Dimensions: 6 5/16" L x 1 3/4" W x 2 1/4" D

Satin Chrome Marine Grade (SCMG),

Auto-locking with passage function Levers on exterior & interior Covers standard 2 1/8" hole

Door Thickness: 1 1/8" to 2"

Warranty!

Lifetime OPTIONS: Keypad: Single Combination, Double Combination (DC) Finish: Jet Black Marine Grade (JBMG), Oil Rubbed Bronze (OIL),

Satin Nickel (SN)

Mechanical Warranty!

Battery-powered electronic spring latch lock Remote capable (1 included, up to 5 capable) Up to 6 user codes, 4-10 digits in length Key Override (Schlage keyway) Auto-locking function Covers standard 2 1/8" hole

LED Illumination for easy operation in the dark Customizable programming code for setup Ability to temporarily disable user codes Low battery indicator

Dimensions: 5 1/8" L x 3 1/8" W x 2 5/8" D OPTIONS: Finish:

Antique Brass (AB), Bright Brass (BB), Satin Nickel (SN), Antique/Oil Rubbed Bronze (OIL)

SURFACE MOUNT LOCKS

Images of available lock finishes, descriptions of the various options & more product information can be found on the inside back cover of this catalog.

C120 C150

Mechanical, keyless, surface mount deadbolt lock Reversible long/short bar

One user code, thousands of possible combinations Low profile, ideal for light-duty applications

Dimensions: 5" L x 1 1/4" W x 1 7/8" D Door Thickness: 1 1/8" to 2"

1/8" thick & up with Thin Door Kit Up to 5" thick with Extension Kit

Compatible with (sold separately): C25 Pull Handle, Thin Door Kit, Extension Kit OPTIONS:

Finish:

Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Lifetime Mechanical Warranty!

C170 www.LockeyUSA.com/product/C170 SL910

Mechanical, keyless, surface mount cam lock One user code, thousands of possible combinations Low profile

Ideal for cabinet doors

Dimensions: 5" L x 1 1/4" W x 1 7/8" D

Door Thickness: 1 1/8" to 2" 1/8" thick & up with Thin Door Kit Up to 5" thick with Extension Kit

Compatible with (sold separately):

C25 Pull Handle, Thin Door Kit, Extension Kit OPTIONS:

Lifetime Mechanical Warranty!

Finish:

Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Oil Rubbed Bronze (OIL),

Satin Chrome (SC), Satin Nickel (SN), White (WH)

Lifetime Mechanical Warranty!

Mechanical, keyless, surface mount deadbolt lock Narrow Stile

Long (2 1/4") and short (7/8") bar included One user code, thousands of possible combinations Knob on exterior, thumbturn on interior Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D

Door Thickness: 1 1/8" to 2" 1/8" thick & up with Thin Door Kit Up to 5" thick with Extension Kit

(Thin Door Kit and Extension Kit sold separately) Oversized Knob (OSK) Available (sold separately)

OPTIONS:

Finish:

Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

2500 www.LockeyUSA.com/product/2500

Mechanical, keyless, surface mount hook bolt lock Narrow Stile

One user code, thousands of possible combinations Knob on exterior, thumbturn on interior Multiple strikes for mortise or surface mounting Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D

Door Thickness: 1 1/8" to 2" 1/8" thick & up with Thin Door Kit Up to 5" thick with Extension Kit

(Thin Door Kit and Extension Kit sold separately) Oversized Knob (OSK) Available (sold separately)

OPTIONS: Lifetime

Mechanical Warranty!

Finish:

Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

www.LockeyUSA.com/product/C120 www.LockeyUSA.com/product/C150 Mechanical, keyless, surface mount hook bolt lock

Thumbturn on exterior & interior One user code, thousands of possible combinations Low profile, ideal for sliding/patio doors Dimensions: 5″ L x 1 1/4″ W x 1 7/8″ D, Throw: 3/8″ Door Thickness: 1 1/8" to 2" 1/8" thick & up with Thin Door Kit Up to 5" thick with Extension Kit Compatible with (sold separately): C25 Pull Handle, Thin Door Kit, Extension Kit

Lifetime Mechanical

OPTIONS: Finish:

Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Warranty!

M220 www.LockeyUSA.com/product/M220

Mechanical, keyless, surface mount deadbolt lock Reversible long/short bar

One user code, thousands of possible combinations Low profile, ideal for narrow stile doors & cabinets Thumbturn on exterior & interior

Dimensions: 5″ L x 1 1/4″ W x 1 7/8″ D, Throw: 3/8″ Door Thickness: 1 1/8" to 2" 1/8" thick & up with Thin Door Kit

Up to 5" thick with Extension Kit (Thin Door Kit and Extension Kit sold separately) OPTIONS:

Lifetime Mechanical Warranty!

Finish: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

2200 www.LockeyUSA.com/product/2200 2200KO www.LockeyUSA.com/product/2200

Mechanical, surface mount deadbolt lock Key Override, Schlage keyway, 3 keys included Narrow Stile

Long (2 1/4") and short (7/8") bar included One user code, thousands of possible combinations Knob on exterior, thumbturn on interior Dimensions: 5 5/8″ L x 1 5/8″ W x 2 1/8″ D Door Thickness: 1 1/8" to 2" 1/8" thick & up with Thin Door Kit

Up to 3" thick with Extension Kit (Thin Door Kit and Extension Kit sold separately)

OPTIONS: Finish:

Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

2500KO www.LockeyUSA.com/product/2500

Mechanical, surface mount hook bolt lock Key Override, Schlage keyway, 3 keys included Narrow Stile

One user code, thousands of possible combinations Knob on exterior, thumbturn on interior Multiple strikes for mortise or surface mounting Dimensions: 5 5/8″ L x 1 5/8″ W x 2 1/8″ D

Door Thickness: 1 1/8" to 2" 1/8" thick & up with Thin Door Kit Up to 3" thick with Extension Kit

(Thin Door Kit and Extension Kit sold separately) OPTIONS:

Finish:

Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

NARROW STILE LOCKS

For complete product information, including a full list of features, dimensions & specifications, visit LockeyUSA.com.

2900 www.LockeyUSA.com/product/2900 2930 www.LockeyUSA.com/product/2930

Lifetime Mechanical Warranty!

Mechanical, keyless, narrow stile deadbolt lock Replaces Adams-Rite style locks Knob on exterior, thumbturn on interior One user code, thousands of possible combinations 1 1/8" backset

Ideal for aluminum storefront doors & gates Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D OPTIONS:

Keypad:

Single Combination, Double Combination (DC) Finish:

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Lifetime Mechanical Warranty!

2950 www.LockeyUSA.com/product/2950 2985 www.LockeyUSA.com/product/2985

Mechanical, keyless, narrow stile hook bolt lock Replaces Adams-Rite style locks Knob on exterior, thumbturn on interior

One user code, thousands of possible combinations 1 1/8" backset

Ideal for aluminum storefront doors & sliding gates Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D

OPTIONS: Keypad:

Single Combination, Double Combination (DC) Finish:

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB),

Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Lifetime Mechanical Warranty!

Mechanical, keyless, narrow stile deadlatching lock One user code, thousands of possible combinations Knob on exterior & interior

One user code, thousands of possible combinations

1 1/8" backset Ideal for gates

Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D OPTIONS:

Keypad:

Single Combination, Double Combination (DC) Finish:

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB),

Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Lifetime Mechanical Warranty!

Mechanical, keyless, narrow stile deadlatching lock One user code, thousands of possible combinations Knob on exterior & interior

One user code, thousands of possible combinations 1 1/8" backset

Ideal for aluminum storefront doors & gates Dimensions: 5 5/8″ L x 1 5/8″ W x 2 1/4″ D

OPTIONS: Keypad:

Single Combination, Double Combination (DC) Finish:

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

PANIC TRIMS

www.LockeyUSA.com/product/115P www.LockeyUSA.com/product/160P

www.LockeyUSA.com/product/285P www.LockeyUSA.com/product/310P

115P

115P Heavy-Duty Lever Lock (1150 Lock Body) Compatible with panic bars that accept a flat tail piece & have a turn radius of 74° or less.

OPTIONS: Finish: Jet Black (JB), Oil Rubbed Bronze (OIL) Marine Grade (MG)

160P Heavy-Duty Knob Lock (1600 Lock Body) Compatible with panic bars that accept a flat tail piece & have a turn radius of 74° or less.

OPTIONS: Finish: Jet Black (JB), Oil Rubbed Bronze (OIL) Marine Grade (MG)

285P Lever Lock (2835 Lock Body) Compatible with panic bars that accept a flat tail piece & have a turn radius of 74° or less.

OPTIONS: Finish:

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Oil Rubbed Bronze (OIL), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

160P 285P 310P

310P Knob Lock (3210 Lock Body) Compatible with panic bars that accept a flat tail piece & have a turn radius of 90° or less.

Finish: Marine Grade (MG)

MG finish is recommended for coastal environments. Longer lifetime than a standard finish and provides added strength against the corrosive elements of coastal/ saltwater environments.

Panic Trims

Pull Handle Entry Trim PB-DUMED

Lever Handle Passage Trim PB-LHPS

Lever Handle Clutch Trim PB-LHCL

Lever Handle Keyed Entry PB-LHED

Lever Handle Storeroom PB-LHSR

www.LockeyUSA.com/panic-trims

Night Latch Handleset Trim PB-NLED

Thumbpiece Keyed Entry Trim PB-TPED

SPECIALTY LOCKS

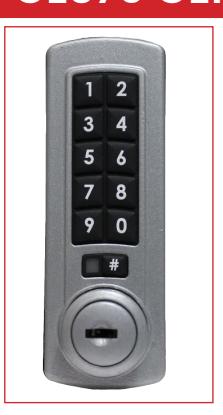

GE370 GEMINI GM270 GEMINI

www.LockeyUSA.com/product/GE370 www.LockeyUSA.com/product/GM270

Electronic cam lock, 1/2 AA Battery included Public and private user modes Flush or surface mounting Emergency Key Override (7 Disc Barrel) LED lights with low battery indicator 8-digit master, 6-digit sub-master, 4-digit user code Technician Mode Dimensions: 3 3/4" L x 1 5/16 W x 1 3/8" D Material: Zinc Alloy and ABS Construction

For Internal Use

OPTIONS:

Keypad Direction:

Vertical (V), Right (R), Left (L)

Finish:

Silver (S), Black (B), White (W)

MC728 www.LockeyUSA.com/product/MC728 SL910

Lifetime Mechanical Warranty!

Mechanical four wheel combination cam lock 10,000 possible combinations Key override

Code Finding Feature:

- 10 Disc barrel with shutter cap

- Allows emergency access if code is lost

Code change function accessible while unlocked

Easy Installation Diameter: 56mm Depth: 28mm

For Exterior & Interior Use

Weather Resistant

OPTIONS:

Finish:

Silver (S), Black (B), Custom* special order only

EC SERIES LOCKS SL910 www.LockeyUSA.com/ecseries

View our Electronic Cabinet & Locker Lock Catalog for complete product information.

ADA

Flush

EC790 Locker Lock

Flush

Public & Private Modes standard, Remote Allocation System Mode by custom order Key Override, 2 keys included

Up to 80,000 cycles per pair of batteries (included)

8-digit master code, 6-digit submaster code, 6-digit technician code, 4-digit user codes Contact LockeyUSA for minimum order quantities and lead times for custom orders.

KOS www.LockeyUSA.com/product/KOS

Add-on key override system (KOS) Compatible with 2000 series locks

Schlage keyway, keyed alike or keyed different Three keys included

Dimensions: 8 1/16" L x 2 1/2 W x 2 3/4 D

Door Thickness: 1 1/8" to 2" 1/8" thick & up with Thin Door Kit (surface mount only)

Up to 5" thick with Extension Kit (Thin Door Kit and Extension Kit sold separately)

OPTIONS: Finish:

Lifetime Mechanical Warranty!

Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OIL)

Satin Chrome (SC), Satin Nickel (SN), White (WH)

Mechanical four wheel combination cam lock 10,000 unique combinations

Key Override

Flush or surface mounting

View our Electronic Cabinet & Locker Lock Catalog for a full listing of our locking solutions for cabinets, drawers, cupboards, lockers, and more.

Simple, quick installation, easy to change code

4-digit user code Lost code finder key

Dimensions: 3 3/4″ L x 1 5/16″ W x 1 3/8″ D

OPTIONS:

Keypad Direction:

Vertical (V), Right (R), Left (L)* special order only Finish:

Silver (S), Black (B), White (W)

EC950 HORIZON www.LockeyUSA.com/product/EC950

Public, Private & Remote Allocation System (RAS) Flush or surface mounting

Key override

Batteries included (CR123 Lithium Battery)

Auto unlock/lock mode

Secure pop-out turn handle

8-digit master, 6-digit sub-master, 6-digit technician 4 or 6 digit user code

OPTIONS:

Keypad Direction:

Vertical (V), Right (R), Left (L)

Finish:

Black (B), White (W), Custom (C)* special order only

Mode:

Remote Allocation System Mode* special order only

KEY SAFE BOX

www.LockeyUSA.com/product/keybox

Secure solution to control access to keys Designed using a LockeyUSA keyless lock

OPTIONS: Finish:

Jet Black (JB), Marine Grade (MG), Satin Nickel (SN), White (WH)

ORDER NUMBERS:

KEYBOX (specify finish)

C25 PULL HANDLE

www.LockeyUSA.com/product/C25

Pull handle for mounting behind C Series locks Compatible with C120, C150, C170

ORDER NUMBER:

C25 (specify finish) (not available in BB or MG)

MS40

www.LockeyUSA.com/product/ms40

Mechanical, keyless surface mount slide-bolt lock Ideal for retrofitting gates, sheds, cabinets, trailers ORDER NUMBER: MS40

COMBO CORK

www.LockeyUSA.com/product/botloc

Perfect solution for securing fine wines and liquors Simply set the combination, twist the top Fits most wine & liquor bottles ORDER NUMBER:

BOTLOC

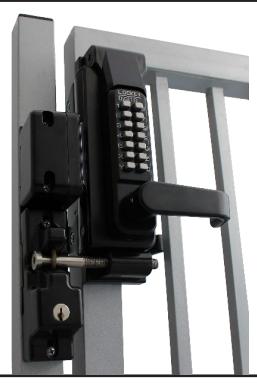

Dimensions on gate: Length: 9 5/16" Width: 2 1/2" Depth: 4"

Dimensions on fence post:

Length: 8 5/8" Width: 1 1/2" Depth: 2 1/4"

Easy to install surface mount gate kit, lock included Locks automatically

Equipped with passage function

Keyed cylinder lockout function prevents code use when locked Deadlocking spring latch prevents tampering

Adjustable strike accommodates gaps between gate & post up to 2" One user code, thousands of possible combinations Changeable handing

Ideal for ornamental, aluminum, vinyl, and wood gates Fits up to 3.5" thick gates (5" thick with extension kit, sold separately)

NO WELDING NEEDED!

KEY LOCKOUT:

DC: Double Combination Many of our products are available in Double Combination (DC). DC locks have a combination body on both the interior and exterior. DC locks require a code to unlock from both the interior and exterior. Codes on exterior and interior do not have to be the same. MG: Marine Grade

Once locked with the key, SUMO remains locked, even with use of code, until unlocked with the key. Perfect for securing gates after-hours & community pool gates.

Visit www.LockeyUSA.com for a complete listing of LockeyUSA products. Refer to Gate & Panic Hardware Catalog vol. 1902 for information on LockeyUSA gate and panic hardware and the Electronic Cabinet & Locker Series Catalog vol. 1609 for our Electronic Cabinet & Locker Series.

ACCESSORIES & ORDERING INFO

FINISHES

www.LockeyUSA.com/resources/ordering-information

Many products are offered in the Marine Grade (MG) finish, which is designed to extend the life of the finish when exposed to corrosive elements of saltwater environments. The Marine Grade finish closely resembles the Satin Chrome finish, unless otherwise KO: Key Override Many of our products are available in Key Override (KO). Locks with Key Override have a Limited Lifetime Warranty which covers manufacturer defects to the keypad.

T-COVER 1150 T-COVER 2500

T-METAL TRIM PLATE

specified.

PUSH/PULL GUARD (PPG)

OVERSIZED KNOB (OSK)

ACCESSORY NAME	COMPATIBLE WITH	PART #
E-Digital Remote	E910, E915, E930, E985, E985, E995	E-REMOTE
C-Series Pull Handle	C120, C150, C170 (Not available in BB or MG finish)	C-25
Extra Combination Tumblers	C, M, 1000, 2000, 2900, 3000, & P Series Locks	PIN KIT
Tamper Proof Screws	C, M, 1000, 2000, 2900 & 3000 Series	TPS (TPSDC for DC locks)
Extension Kit-1150	1150, 1600 (New Style)	EXT-1150
Extension Kit-2000	C Series, M Series, 2200, 2210, 2500, 2900, 2950 & 3000 Series	EXT-2000
Extension Kit-2835	2830, 2835, 2930 (New Style), 2985	EXT-2835
Thin Door Kit	C Series, M220, 2200, 2500	TDK
Adjustable Deadbolt	M210, 2210 & 3210	D-ADJ
Adjustable Knob Latch	M230	SKADJUSTABLE
Adjustable Latch	1150, 1600, 2830, 2835, 3830, 3835	SLADJUSTABLE
Drive-in Deadbolt	M210, 2210 & 3210	DID
900 Deadbolt	2900	900-BOLT
930 Latch	2930, 2985	930-LATCH
950 Hookbolt	2950	950-HOOK
T-Cover 1150 (3" x 8 1/2")	1150, 1600	T-COVER 1150
T-Cover 2500 (3 1/2" x 8 3/8")	2000 & 3000 Series	T-COVER 2500
Metal Trim Plate	2000 Series	T-METAL
Oversized Knob	2200, 2210, 2230, 2500, 2900, 2950	OSK
Push/Pull Guard	2000 Series, 3000 Series & 310P	PPG

Narrow Stile Mounting Tabs 2900 Series AR-2991-0965

4245 S. Lincoln Rd. Mt. Pleasant, MI 48858 888.395.0163 LockeyUSA.com
