DETEX PANIC DEVICES OFFERED BY LOCKEYUSA PHONE: 989-773-2363 FAX: 989-772-1936
WWW.LOCKEYUSA.COM
INSTALLATION INSTRUCTIONS FOR NARROW STILE RIM DOOR KIT - DETEX VALUE SERIES™

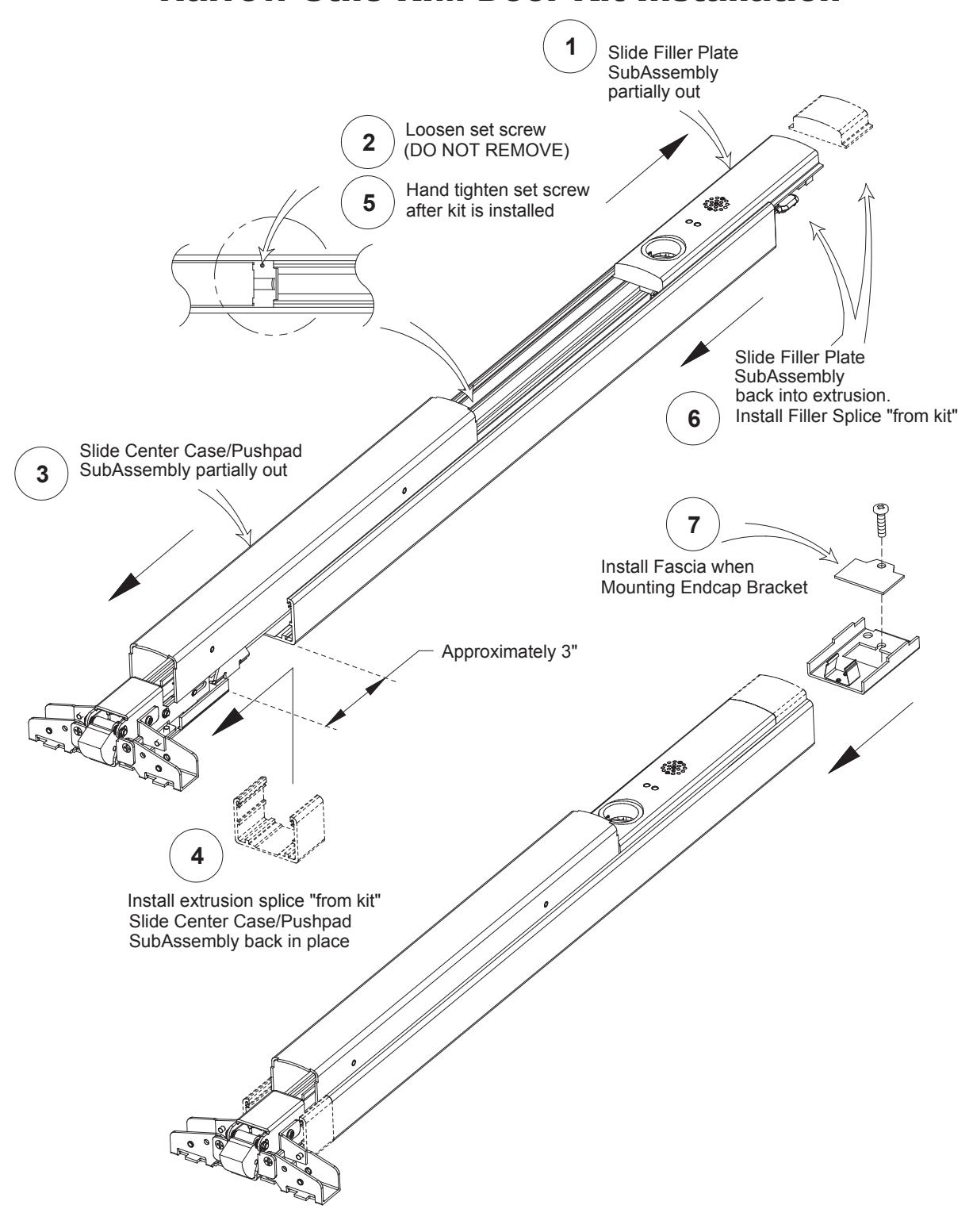

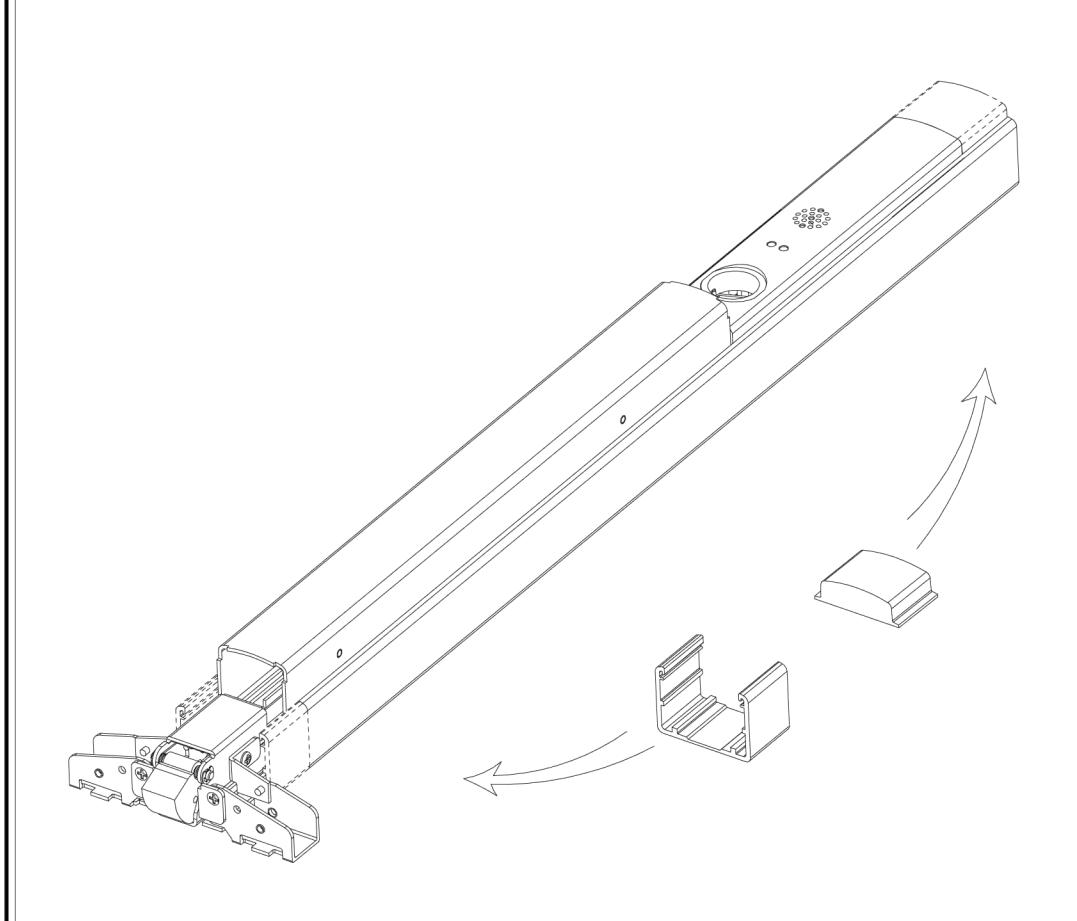

Narrow Stile RIM Door Kit Installation
| Fastener Table | |||||
|---|---|---|---|---|---|
| Drill Bit | Tap Wrench | Comments | |||
|
Use Either Machine Screws, Sheet Metal Screws,
or Sex Nuts |
|||||

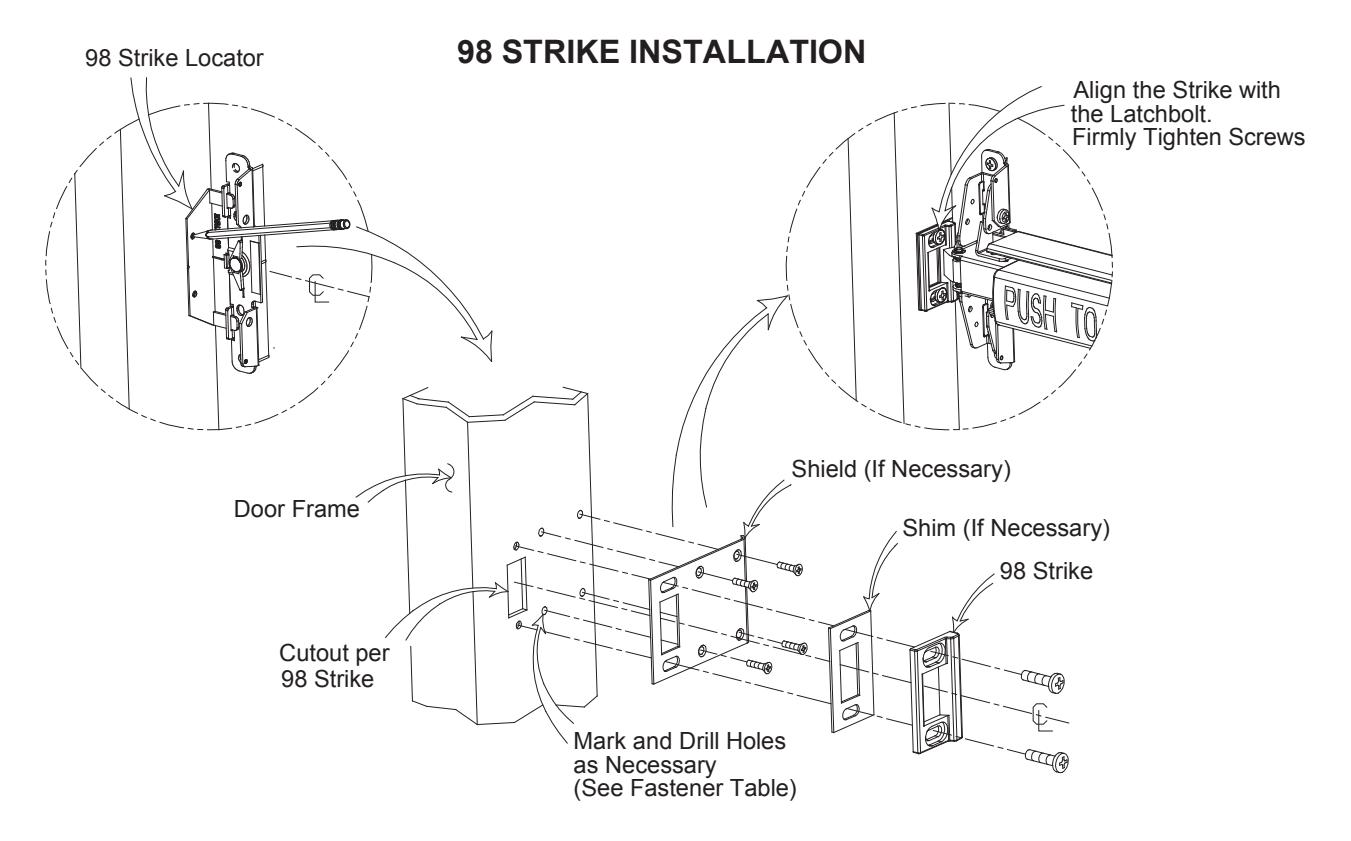

| Machine Screws | #6-32 x 5/8" | PPH | #36 or 7/64 | #6-32 Tap | Used on 98 Strike Shield Mounting Holes |
| #6-32 x 3/8" | PPH | Used to Mount Centercase Cover and Endcap | |||
| #10-24 x 5/8" | PPH | #25 or 9/64" | #10-24 Tap | Used on 99 Strike Center Mounting Hole | |
| #1/4-20 x 1/4" | PPH | Used to Fasten Centercase Unit onto Backplate | |||
| #1/4-20 x 1" | PPH | #7 or 13/64" | #1/4-20 Tap | Used on Strike, Backplate, and Endcap Mounting Holes | |
| Sheet Metal Screws | #6 x 1" | PPH | 9/64" | Used on 98 Strike Shield Mounting Holes | |
| #10 x 1" | PPH | #22 or 5/32" | Used on 99 Strike Center Mounting Hole | ||
| PPH | 7/32" |
Metal Applications
Used on Strike, Backplate, and Endcap Mounting Holes |
|||
| #14 x 1-1/4" | PPH | 15/64" | Mullion | ||
| PPH | 3/16" |
Wood Applications
Used on Backplate, and Endcap Mounting Holes |
|||
| Sex Nut | #1/4-20 | 9/32" Interior Door Face |
Recommended on Fire Rated Wood and
Unreinforced Hollow Metal Doors Used on Backplate and Endcap Mounting Holes |
||
| 3/8" Exterior Door Face | |||||
| #10-32 | 13/64" Interior Door Face |
Recommended on Fire Rated Wood and
Unreinforced Hollow Metal Doors Used on Strike Hook Mounting Holes |
|||
| 5/16" Exterior Door Face | |||||
Note: (1) Fastener selection will vary per catalog configuration and kits ordered.
