LockeyUSA Gate Hardware TB950 LINX Instructions

	Part Name	Qty.
	Weldable Plates	2
	U-Bolt – 3 x 4 ½	2
	Lock-Nuts – 3/8	4
TB950-L INX Kit Instructions	Post-Mount Collar	2

The TB950-LINX Kit is intended to adapt your TB950 Magnum Hydraulic Gate Closer to fence posts 3-inches or smaller. The TB950-LINX kit comes with a 3" U-Bolt to fit to a 2 7/8" post.

If the post is smaller than 3-inches, a smaller U-Bolt must be used to match the post size.

TO INSTALL:

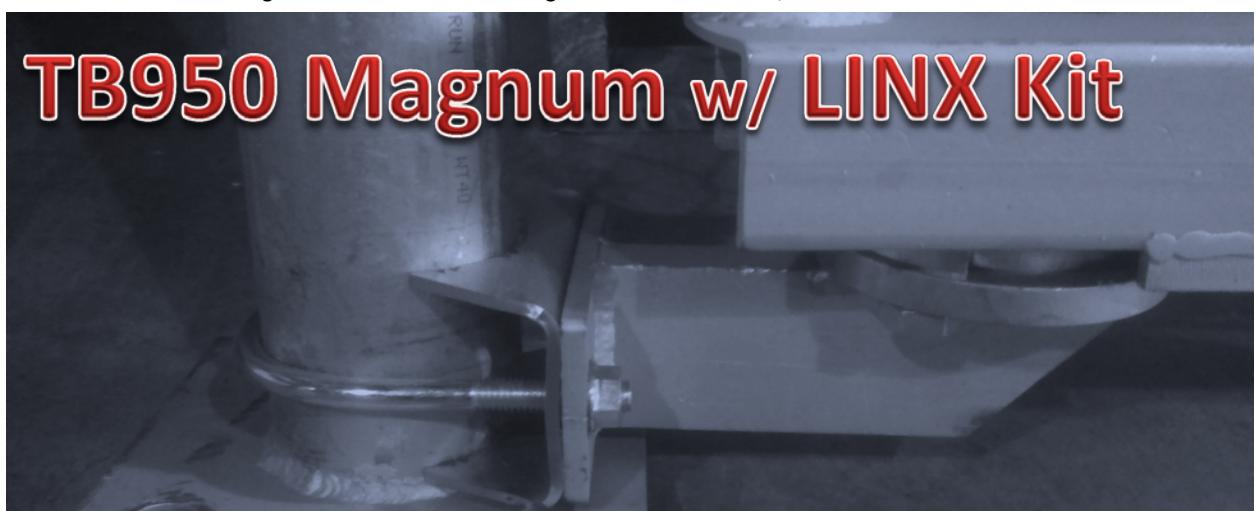

Mounting the TB950 Magnum w/ TB950-LINX Kit

• 1. Determine the desired gap from the gate to the post.
• 2. Cut the heel of the TB950 Magnum to desired length.
• 3. Before welding, remove bearings and bushings from the gate closer.
• 4. Place Weldable Plate to the heel of the TB950 Magnum and center.
• 5. Weld the Plate to the heel of the closer.
• 6. Secure the TB950 Magnum to the Gate Closer using the Post-Mount Collar, U-Bolt and Lock-Nuts.

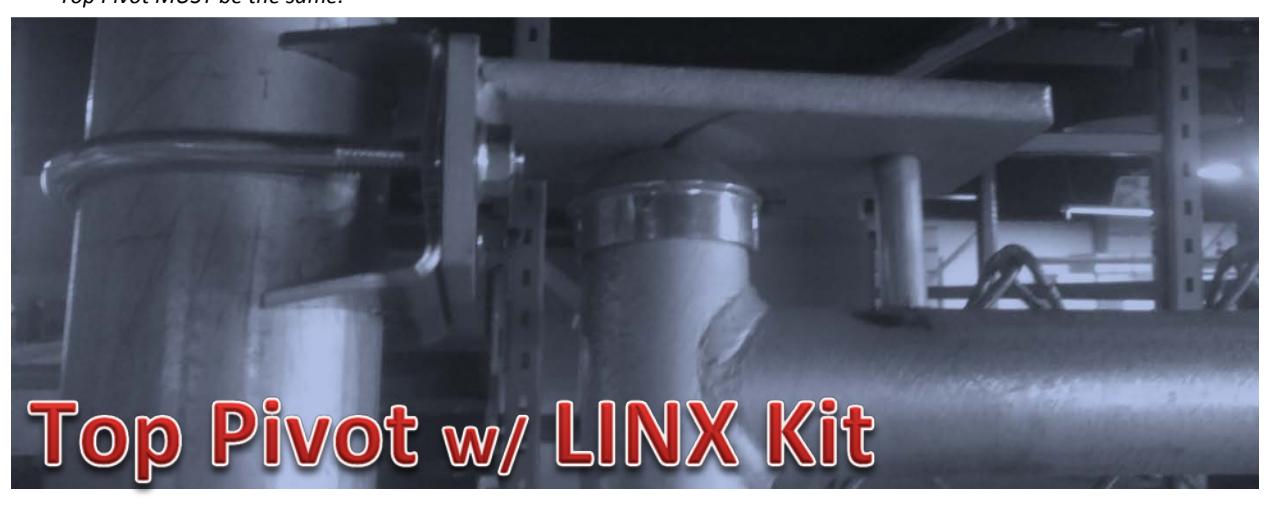

Mounting the Top Pivot w/ TB950-LINX Kit

• 1. Measure the distance from the edge of the gate post to the center pivot of the TB950 Gate Closer (shown above).
• 2. Measure and mark the Top Pivot with the exact measurement from Step 1 (include Weldable Plate in measurement).
• 3. Cut Top Pivot accordingly to attain desired distance.
• 4. Place Top Pivot plate to the Weldable Plate.
• 5. Weld the Plate to the Top Pivot.
• 6. Secure the Top Pivot to the Gate Post using the Post-Mount Collar, U-Bolt and Lock Nuts. *NOTE: The distance between the edge of the gate post and the center pivot points of the TB950 Magnum Gate Closer and Top Pivot MUST be the same.
