Lockey 2230 | 2435 | 3230 Installation Instructions

2230 | 2230 DC | 2435 | 3230 | 3230 DC

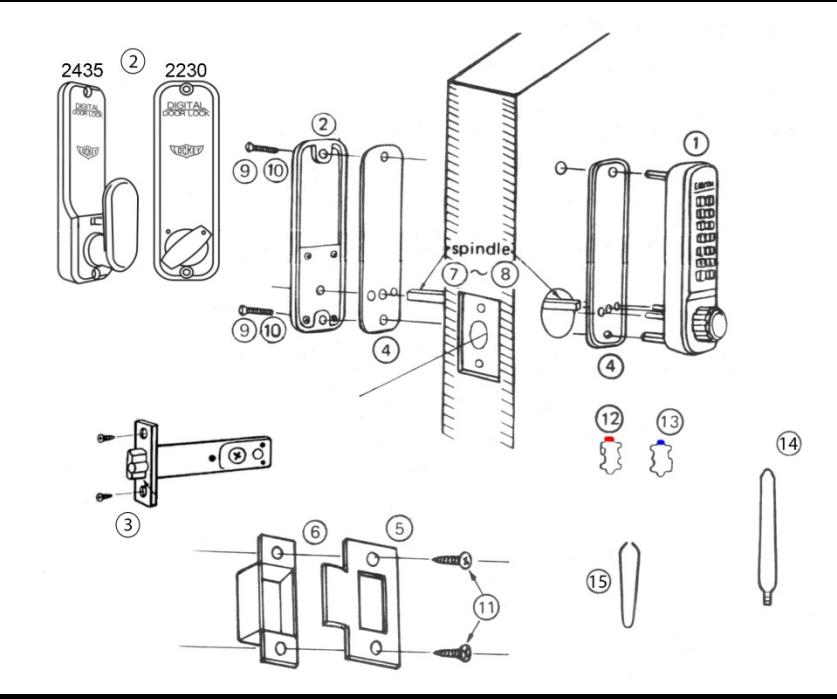

No.	Part Name	2230 2435
1	Outside Body	1
2	Inside Body	1
3	Deadlatch (2 3/8" - 2 3/4")	1
4	Rubber Trim Plate	2
5	Strike Plate	1
6	Mortised Striker	1
7	Spindle 40-55mm.	1
8	Spindle 30-45 mm.	1
9	Machine Screw M4 x 50 mm.	2
10	Machine Screw M4 x 35 mm.	2
11	Wood Screws M4	4
12	Extra Code Tumblers (Red)	1
13	Extra Non-Code Tumblers (Blue)	2
14	Brass Support Pin	1
15	Tweezers	1

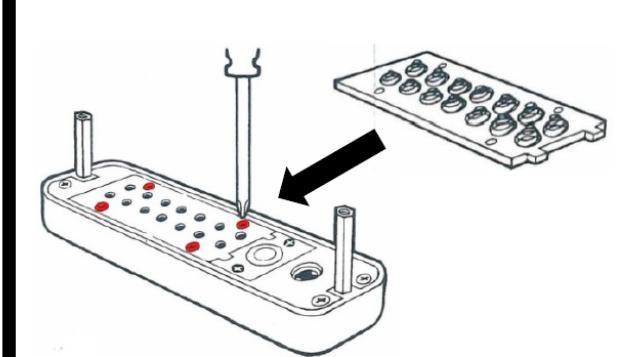

Step 1: Change User Code ( OPTIONAL )

If you wish to change your code, see instructions on reverse side.

Step 2: Prep Door for Installation with Template

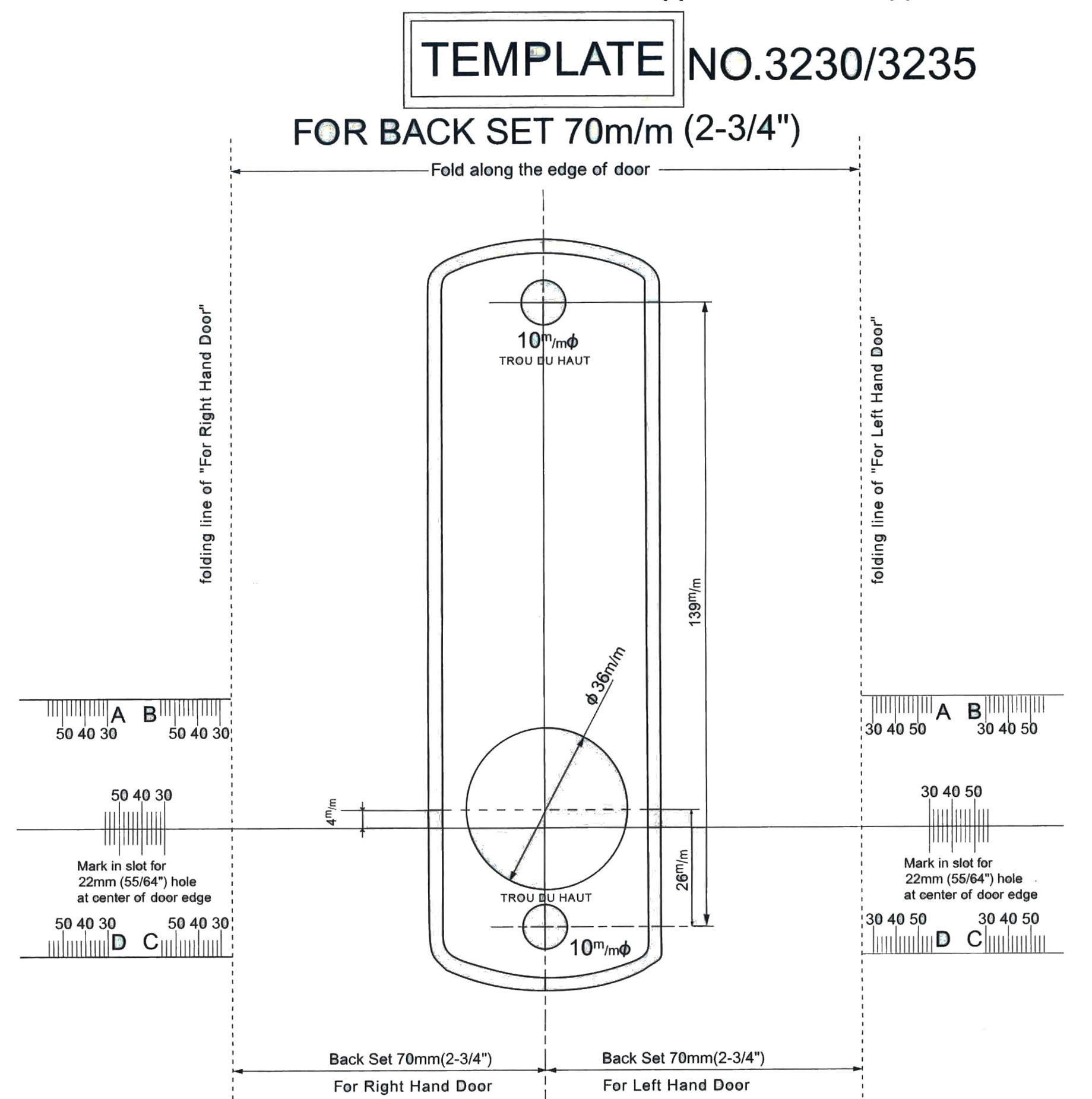

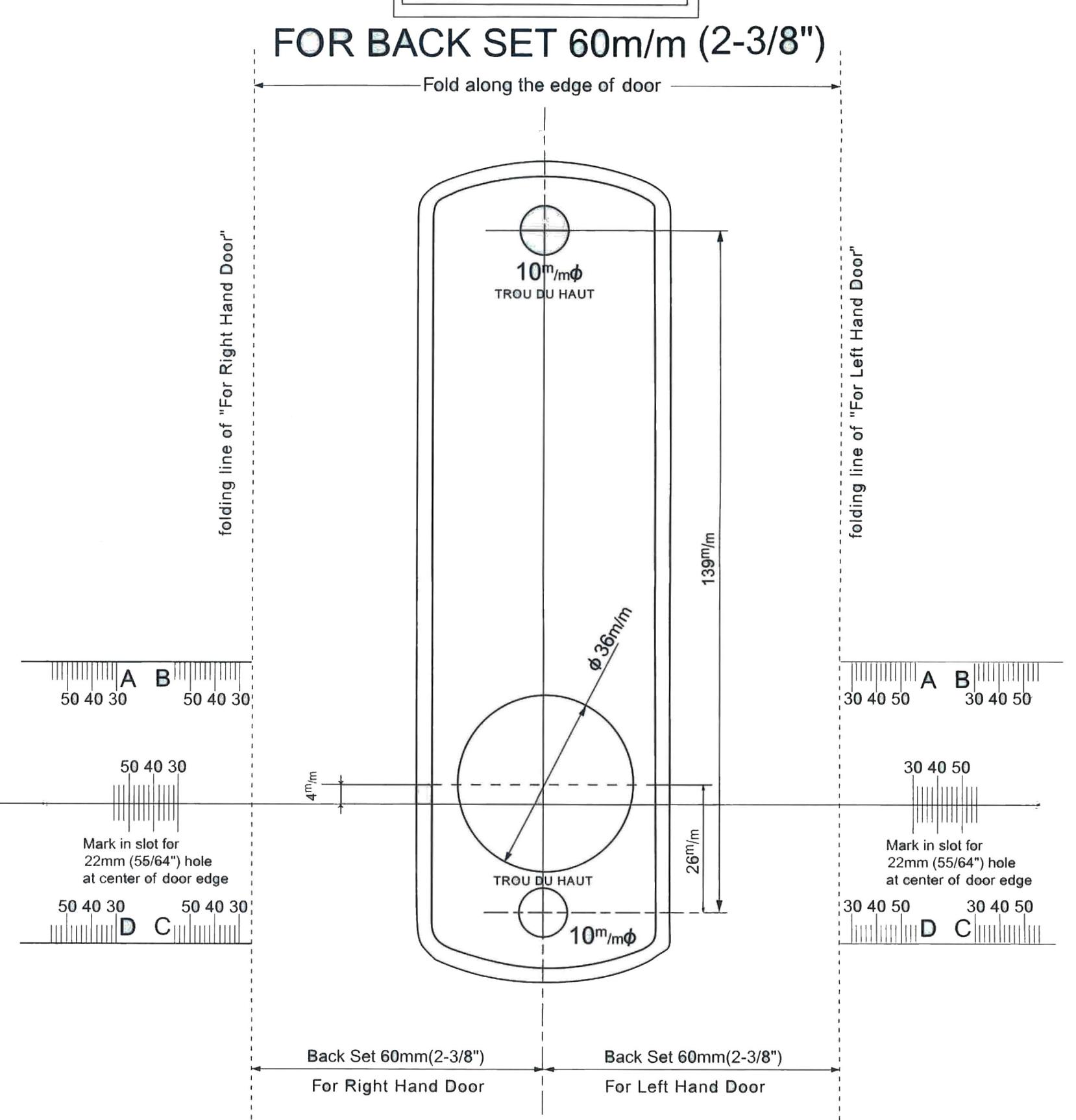

• 1. Place template (supplied) on door and fold along door's edge.
• 2. Mark holes for 2 3/8" or 2 3/4" backset.
• 3. Drill holes as instructed.

NOTE: For Pre-Prepped 2 1/8" doors, you only need to drill top hole.

Step 3: Adjust Latch ( if necessary ) & Install

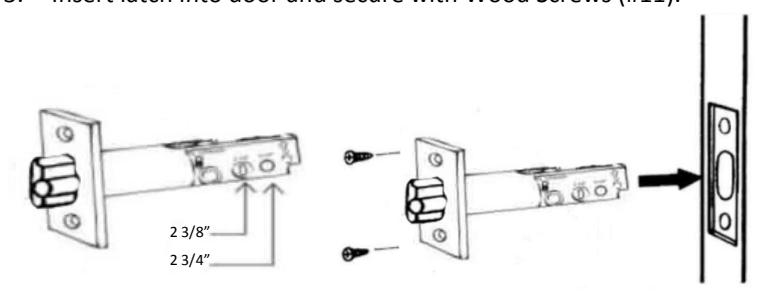

• 1. Adjustable latch (#3) is factory preset for a 2 3/8" backset.
• 2. For 2 3/4" backsets, slide the Cam assembly on the latch to 2 3/4".
• 3. Insert latch into door and secure with Wood Screws (#11).

Step 4: Install Support Pin & Hex Bolts

Install Brass Support Pin (#14) into either hole on Outside Body as shown in the figure to the Right.

Install/screw Hex Bolts into the top and bottom of the Outside Body as shown in the figure.

Step 5: Verify Correct Spindle Length

• 1. With latch (#3) installed, hold the Inside Body (#2) and Rubber Trim Plate (#4) to the door. Inside Knob or Lever
• 2. Place Spindle (#7/8) through latch, into the Inside Body, as far as possible.
• 3. Spindle should extend from exterior of door 3/8" min. – 5/8" max.
• 4. If the 30-45 mm (#8) is too long, cut it to the correct length. IMPORTANT: If spindle extends less than 3/8" it may not engage the lock. If spindle extends more than 5/8", it will cause the lock to bind.

Step 6: Determine Knob Turn Direction ( to unlock )

The lock is preset to unlock when turned clockwise after combination is entered.

If desired, you can unlock the door with a counter-clockwise turn. Remove the two blue screws and move the pin to the opposite side as shown.

*2230 DC – Inside Body pin must on opposite side from Outside Body.

Step 7: Install the Lockey 2230/2435

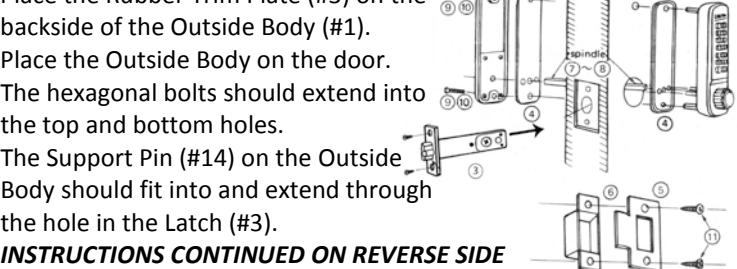

• 1. Place the Rubber Trim Plate (#3) on the backside of the Outside Body (#1).
• 2. Place the Outside Body on the door. The hexagonal bolts should extend into the top and bottom holes.
• 3. The Support Pin (#14) on the Outside Body should fit into and extend through the hole in the Latch (#3).

Door Edge

3/8" to 5/8"

Spindle (#5/6)

Inside Body (#2)

Step 7 cont: Install the Lockey 2230/2435

• 1. Insert the Spindle (#7/8) into the Outside Body (#1) ensuring it's in the proper angled position. *( SEE FIGURES BELOW )
• 2. Using a screwdriver, secure the lock to the door with the Screws (#9 or #10). Screw length is dependent on door thickness .
• 3. Test the operation of the Latch by turning the inside knob/lever.
• 4. Locate position where Latch strikes door frame and install Mortised Strike (#5) and Strike Plate (#6).

*IMPORTANT: SPINDLE POSITION/ANGLE

CLOCKWISE TURN TO UNLOCK WITH COMBINATION

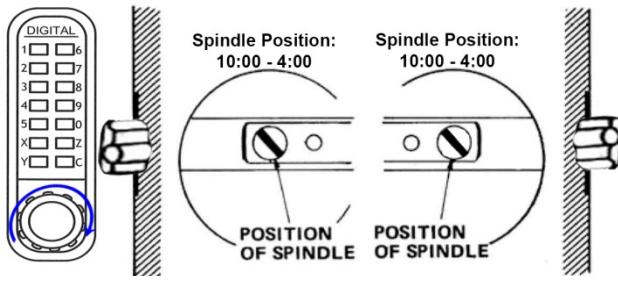

The 2230/2435 is factory preset to unlock with a clockwise turn when the combination is entered. The Spindle MUST be placed through the latch, at a 10:00 – 4:00 angle as shown.

COUNTER-CLOCKWISE TURN TO UNLOCK WITH COMBINATION

If desired, the 2230/2435 can be unlocked with a counter-clockwise turn when the combination is entered. To unlock the 2230/2435 with a counter-clockwise turn, please refer to Step 6 to change the Handing Pin.

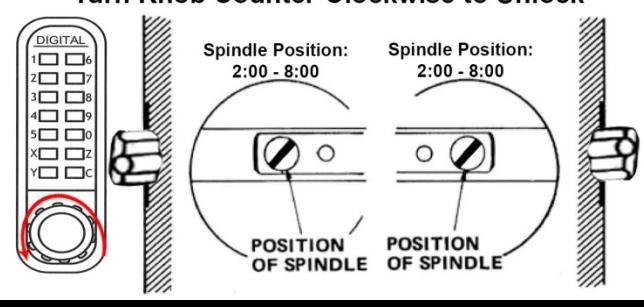

After changing the Handing Pin, the Spindle MUST be placed through the latch at a 2:00 – 8:00 angle as shown.

DIGITAL DOOR LOCK ((DX TYPE))

TEMPLATE NO.3230/3235

DIGITAL DOOR LOCK ((DX TYPE))
