Lockey PB1100 FR Fire Rated Panic Hardware Instructions Template

Open the original PDF document

View PDF

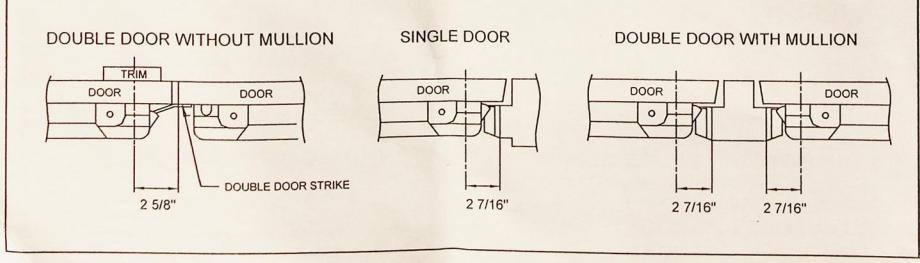

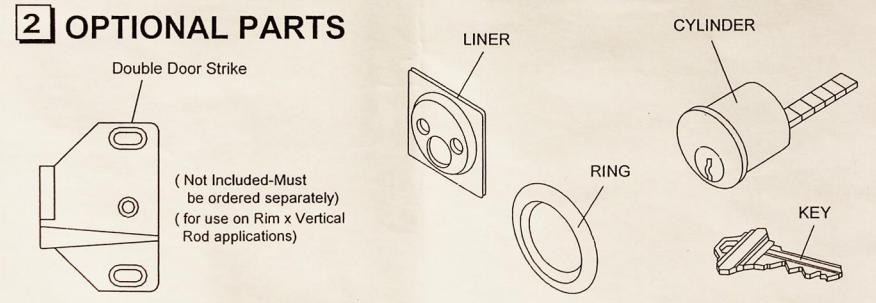

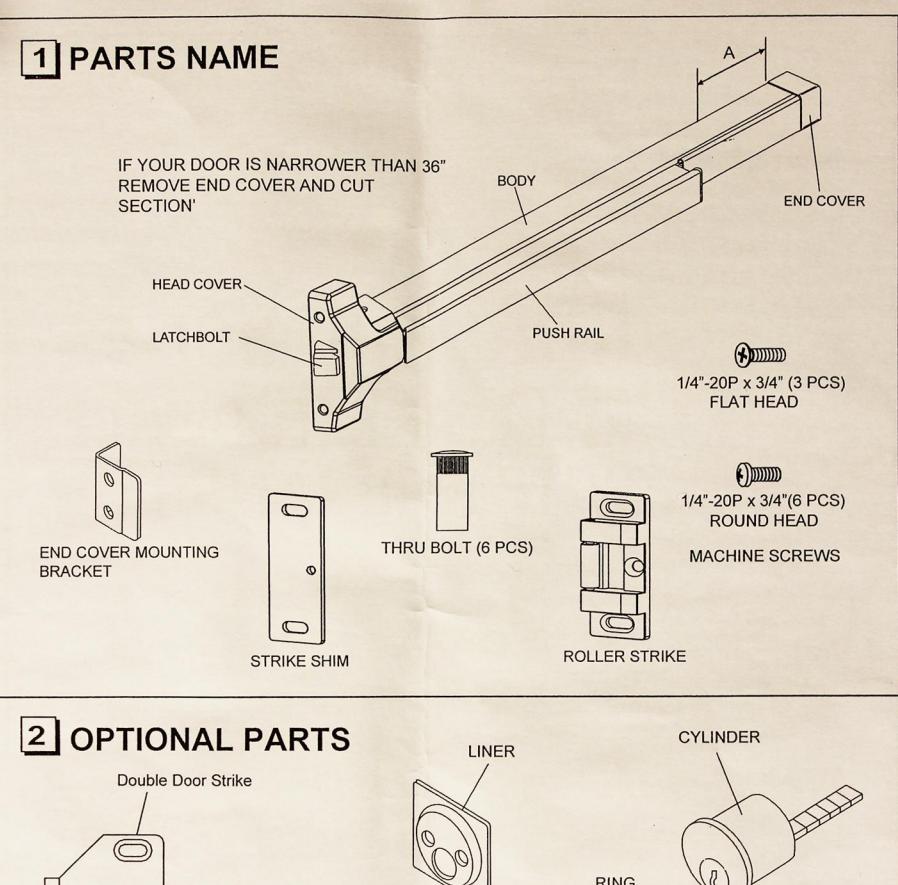

3 TYPE OF INSTALLATION

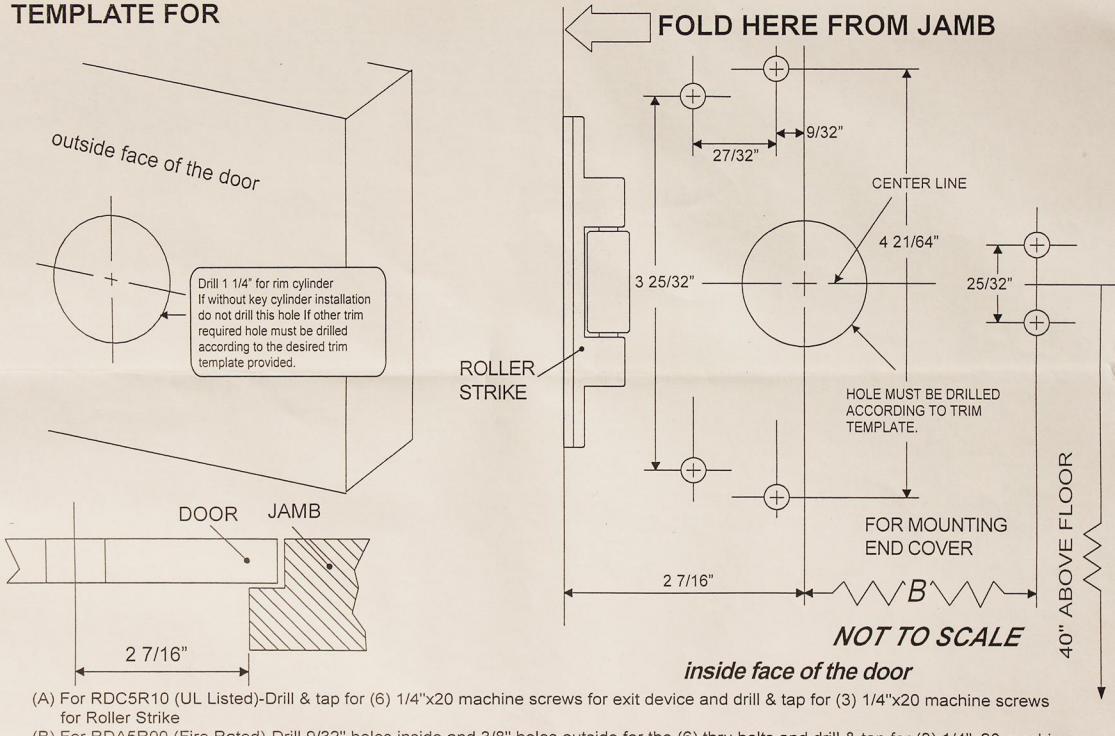

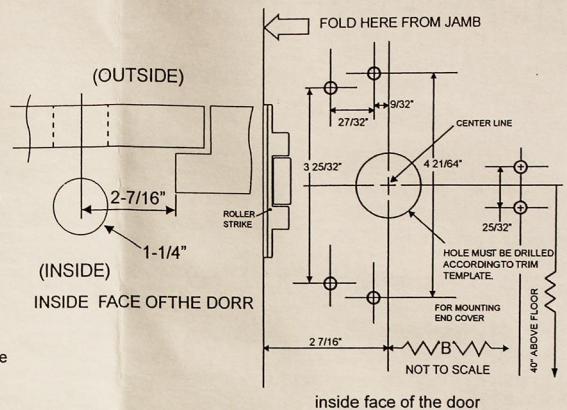

1.USE TEMPLATE ENCLOSED TO MARK DOOR FACE AND DRILL HOLES WITH THE DIAMETERS SHOWN.

2."B"LENGTH SHOULD BE MEASURED FROM THE CENTER OF CYLINDER HOLEO THE END OF THE BODY.

Drill 9/32" holes inside and 3/8" holes outside for the (6) thru bolts and drill & tap for (3) 1/4"x20 machine screws for the Roller Strike

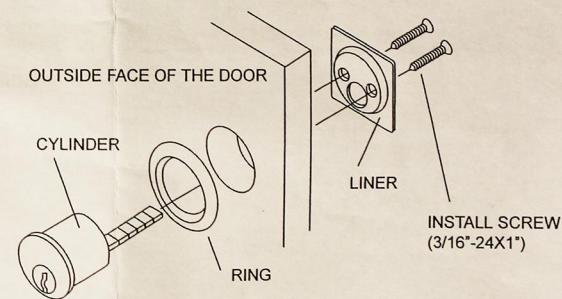

5 INSTALL CYLINDER (IF REQUIRED)

1.PLACE THE CYLINDER INTO THE HOLE ON THE DOOR 2.KEEP THE TAILPIECE HORIZONTAL 3.TIGHTEN THE SCREWS

TAILPIECE PROJECTION

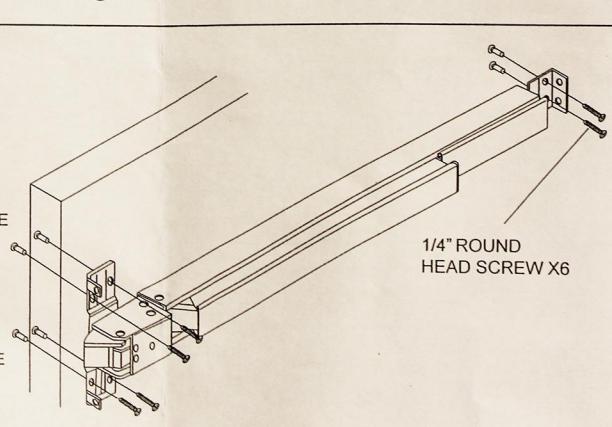

6 INSTALL BODY

  • 1.REMOVE THE HEAD COVER AND END COVER.
  • 2.ALIGN THE SCREW HOLES ON THE BODY WITH THE HOLES ON THE DOOR.
  • 3.INSERT SCREW BOLT (6PCS)3/8" FFOM OUTSIDE OF THE DOOR THEN TIGHTEN THE 1/4" ROUND HEAD SCREW (6PCS)FROM INSIDE OFTHE DOOR ON THE BODY AND THE MOUNTING PLATE OF END COVER.

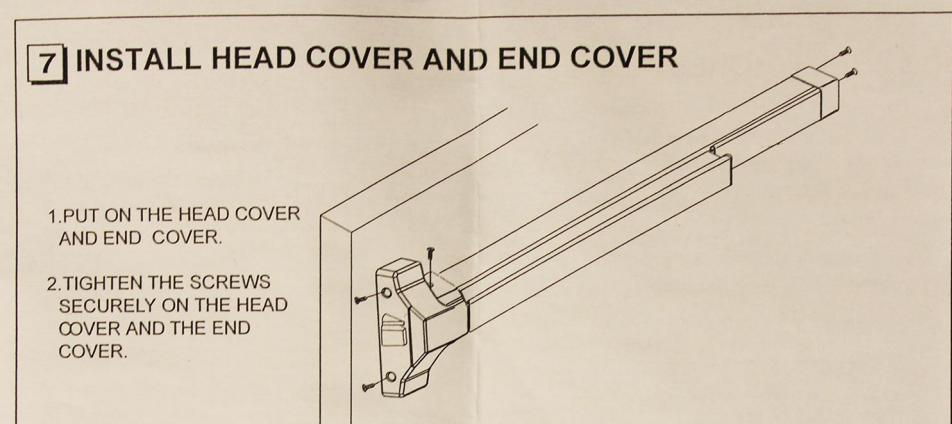

8 INSTALL ROLLER STRIKE

1.WITH THE DOOR IN THE CLOSED POSITION MARK THE CENTERLINE OF LATCHBOLT ON DOOR JAMB, 2.PLACE ROLLER STRIKE ON DOOR JAMB, ALION CENTER OF ROLLER STRIKE WITH THE LATCHBOLT CENTERLINE MARK ON THE JAMB, THEN ALIGN THE OUTSIDE EDGE OF THE ROLLER STRIKE WITH THE OUTSIDE EDGE OF THE THE DOOR JAMB,

3.MARK THE CENTER OF THE 2 ADJUSTABLE SLOTTED HOLES AND DRILL 7/32" PILOT HOLES. TAP PILOT HOLES WITH 1/4"-20 THREADS AND INSTALL MACHINE SCREWS, OR INSTALL SELF TAPPING MACHINE SCREWS OR WOOD SCREWS IN PILOT HOLES.CLOSE DOOR TO CHECK IF LATCHBOLT EXTENDS PROPERLY, ADJUST ROLLER STRIKE IF NECESSARY.

4.WITH ROLLER STRIKE IN FINAL POSITION, DRILL A 7/32" PILOT HOLE FOR THE CENTER MOUNTING HOLE. TAP PILOT HOLE WITH 1/4"-20 THREADS AND INSTALL MACHINE SCREW. OF INSTALL SELECTION OF MICHINES SCREW OF WOOD SCREWIN

OR INSTALL SELF TAPPING MACHINE SCREW OR WOOD SCREW IN PILOT HOLE.

NOTE INSTALL STRIKE SHIM UNLESS THE EXIT DEVICE HEAD COVER RUBS THE ROLLER STRIKE. THEN REMOVE THE STRIKE SHIM TO GAIN ADDITIONAL CLEARANCE.

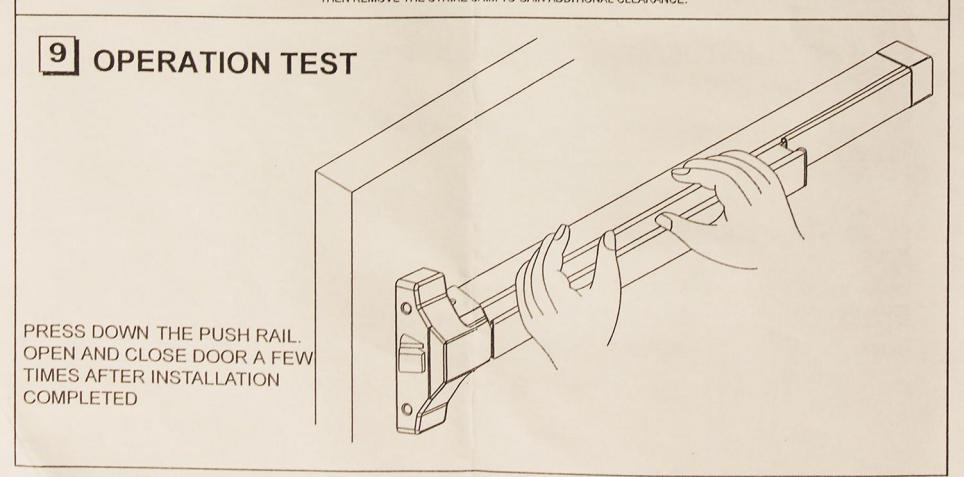

(B) For RDA5R00 (Fire Rated)-Drill 9/32" holes inside and 3/8" holes outside for the (6) thru bolts and drill & tap for (3) 1/4"x20 machine screws for Roller Strike.
