ELECTRONIC ENTRY DEVICE

SPECIFICATIONS

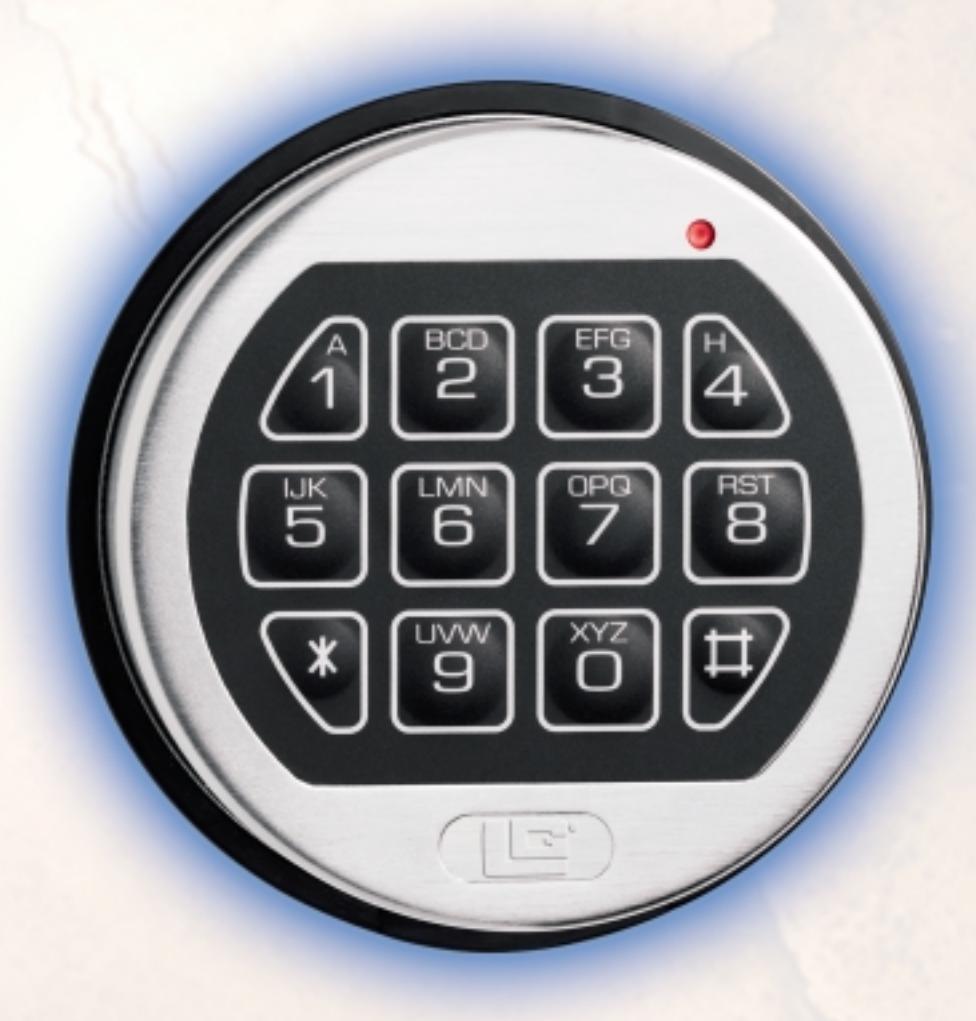

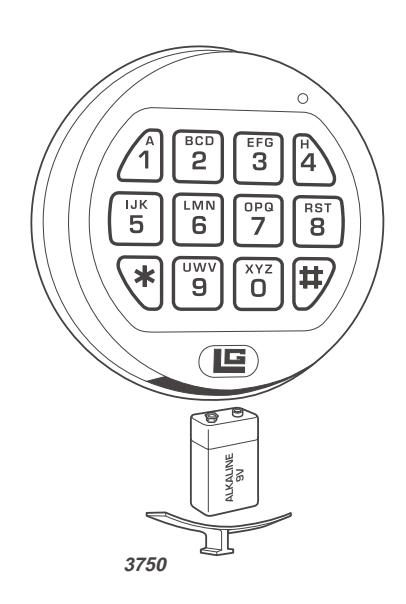

3750 LGCOMBO FEATURES

• Available in Satin Chrome, Brass and Black
• Outside Battery Compartment (Located Under Keypad)
• One User-Supplied 9V Alkaline Battery

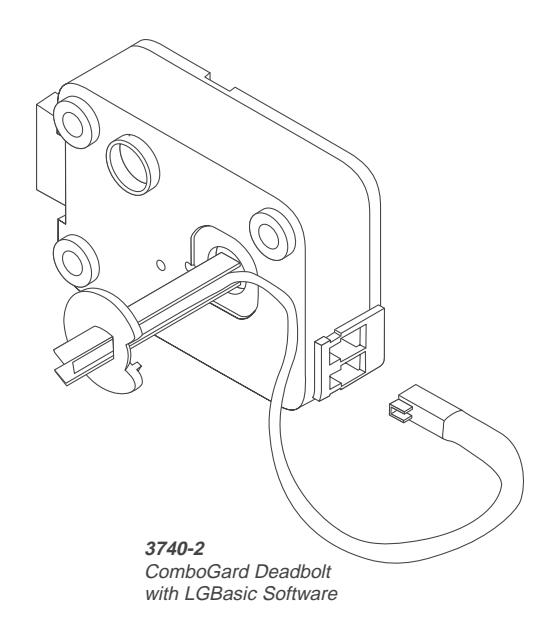

3740-2 Deadbolt (LGBASIC) STANDARD FEATURES

• Manager Mode
  • -Manager and One User Combination
• Wrong Try Penalty
• UL Listed, Type 1
• Made in the USA

3040-DB Deadbolt (COMBOGARD) STANDARD FEATURES

• Signal to Disable Lock
  • -Optional Alarm Box Required (Sold Separately)
• U.L. Listed, Type 1
• Made in the USA

3040-DB PROGRAMMABLE FEATURES

(With Optional Hand-Held Programmer)

• Manager Mode
• Second User
• Time Delay

-Delay Period: 1 – 99 minutes -Open Period: 1 – 19 minutes

• Time Delay Override
• Dual Control
• Silent Signal Alarm

-Optional Alarm Box Required (Sold Separately)

• Remote Override Signal
  • -Optional Alarm Box Required (Sold Separately)

310-325-5670

Offices Located Worldwide

LA GARD, INC. 3330 Kashiwa Street, Torrance, CA 90505 Ph: 310-325-5670 Fax: 310-325-5615 Fax On Demand: 877-LAGARD2 Email: theone@lagard.com www.lagard.com
