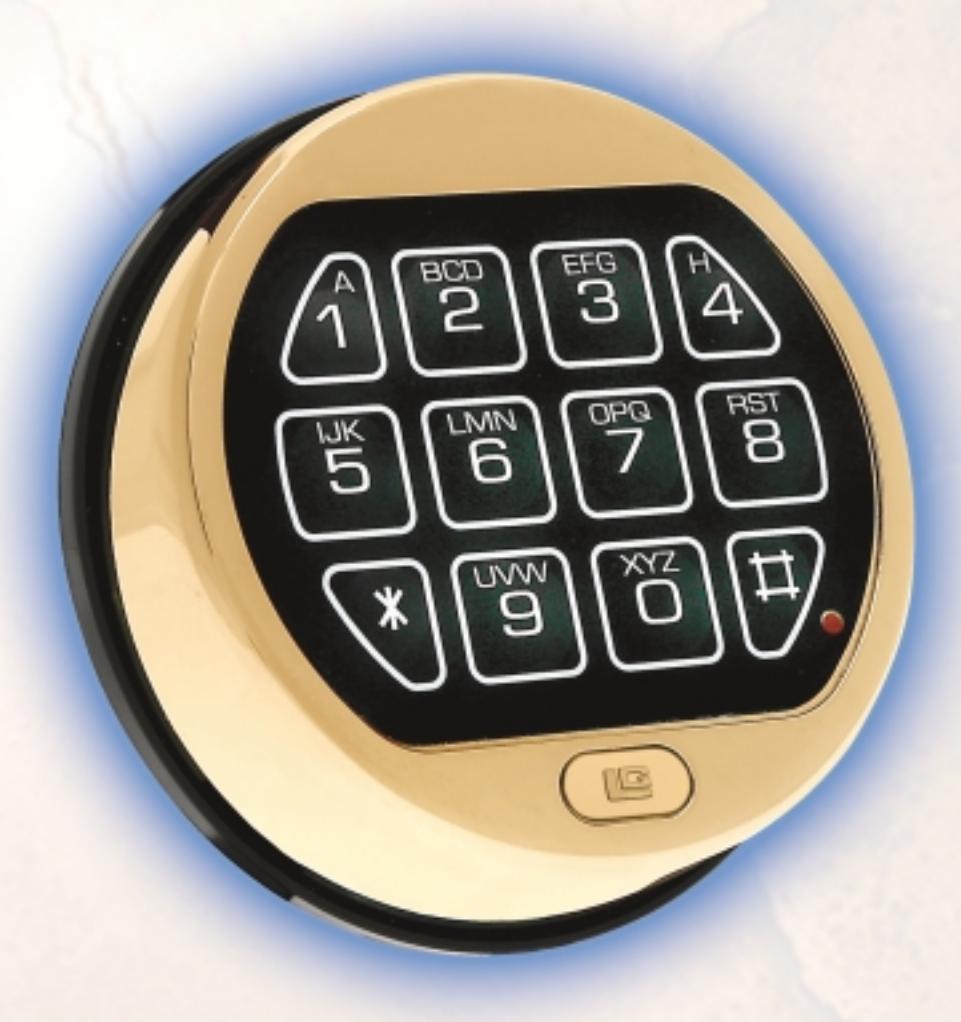

ELECTRONIC ENTRY DEVICE

®

SPECIFICATIONS

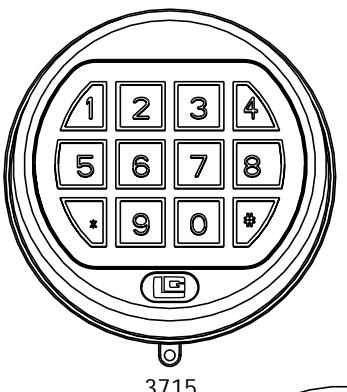

3715 LGBASIC FEATURES II

• Available in Satin Chrome, Brass and Black

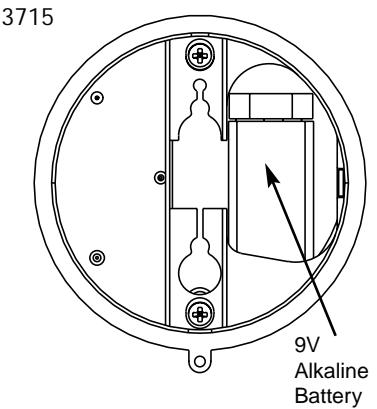

• Outside Battery Compartment (Located Behind Keypad)
• One User-Supplied 9V Alkaline Battery

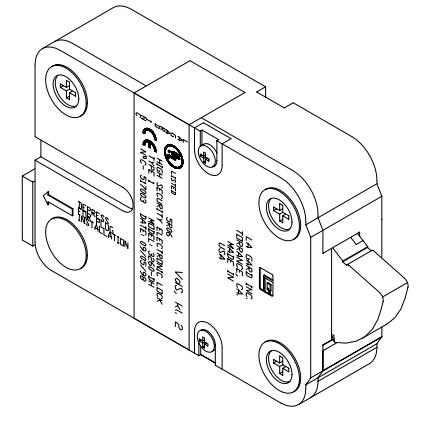

3765-2 Dual-Handed Swingbolt (LGBASIC) STANDARD FEATURES

• Manager Mode
  • -Manager and One User Combination
• Wrong Try Penalty
• UL Listed, Type 1
• Made in the USA

3260 Dual-Handed Swingbolt (SAFEGARD) STANDARD FEATURES

• Signal to Disable Lock
  • Optional Alarm Box Required (Sold Separately)
• U.L. Listed, Type 1
• Made in the USA

3260 PROGRAMMABLE FEATURES

(With Optional Hand-Held Programmer)

• Manager Mode
• Second User
• Time Delay

-Delay Period: 1 – 99 minutes

-Open Period: 1 – 19 minutes

• Time Delay Override
• Dual Control
• Silent Signal Alarm

-Optional Alarm Box Required (Sold Separately)

• Remote Override Signal

-Optional Alarm Box Required (Sold Separately)

3765-2 or 3260

310-325-5670

Offices Located Worldwide

LA GARD, INC. 3330 Kashiwa Street, Torrance, CA 90505 Ph: 310-325-5670 Fax: 310-325-5615 Fax On Demand: 877-LAGARD2 Email: theone@lagard.com www.lagard.com
