LA GARD Mechanical Combination Locks

3 Wheel - 1985, 3390 4 Wheel - 1947 Key Lock 4 Wheel 2270 Dials and Rings

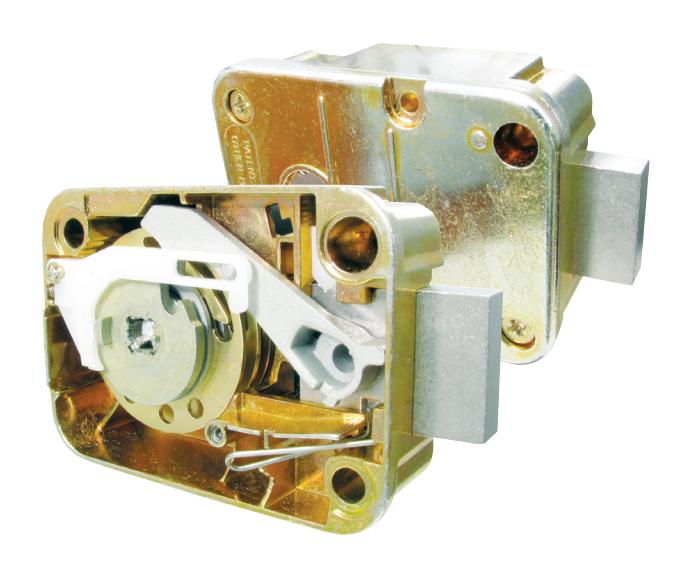

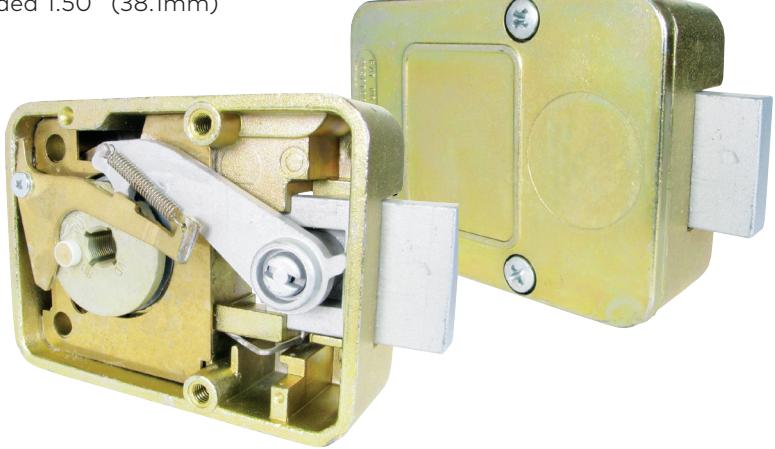

Model 1985 - 3 Wheel Combination Lock

UL Group 1, EN1300B, VdS Class 2

• Die-cast bolt and drop lever
• Standard footprint
• One million possible combinations
• Integrated re-locker, bolt blocking in case of manipulation of the lock cover
• Bolts available in standard 0.5" (12.7mm) and extended 1.50" (38.1mm)
• Drilled and tapped bolts available
• US (10-32) and Metric (4mm)
• Mounting RH, LH, VU or VD

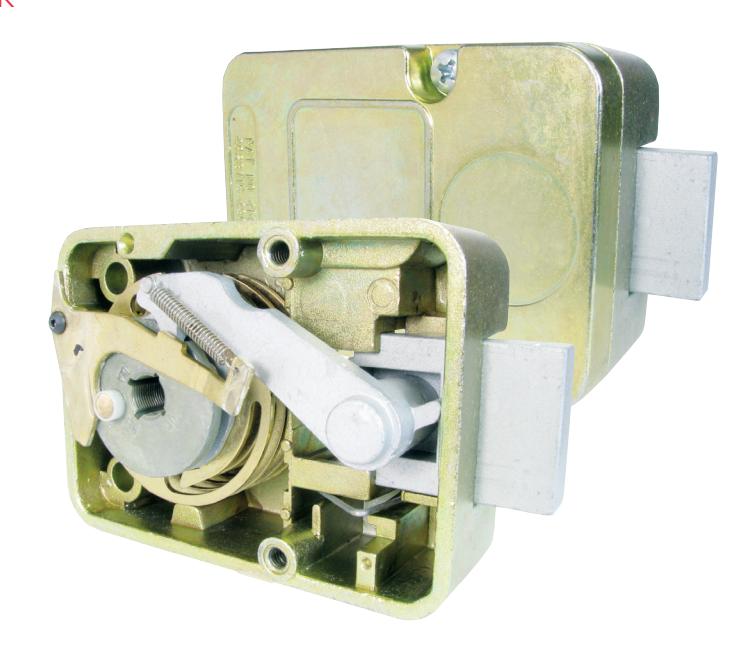

Model 3390 - 3 Wheel Combination Lock

UL Group 2M, EN1300B, VdS Class 2

• Thru-case mounting
• Sintered steel bolt and die-cast drop lever
• Standard footprint
• One million possible combinations
• Integrated re-locker, bolt blocking in case of manipulation
• Bolts available in standard 0.5" (12.7mm) and extended 1.50" (38.1mm) lengths
• Drilled and tapped bolts available US (10-32) and Metric (4mm)
• Mounting RH, LH, VU or VD

Model 1947 - 4 Wheel Combination Lock

UL Group 1, EN1300C, VdS Class 3

• Die-cast bolt and drop lever
• Standard footprint
• One hundred million possible combinations
• Integrated re-locker, bolt blocking in case of manipulation
• Bolts available in standard 0.5" (12.7mm) and extended 1.50" (38.1mm) lengths
• Drilled and tapped bolts available US (10-32) and Metric (4mm)
• Mounting RH, LH, VU or VD

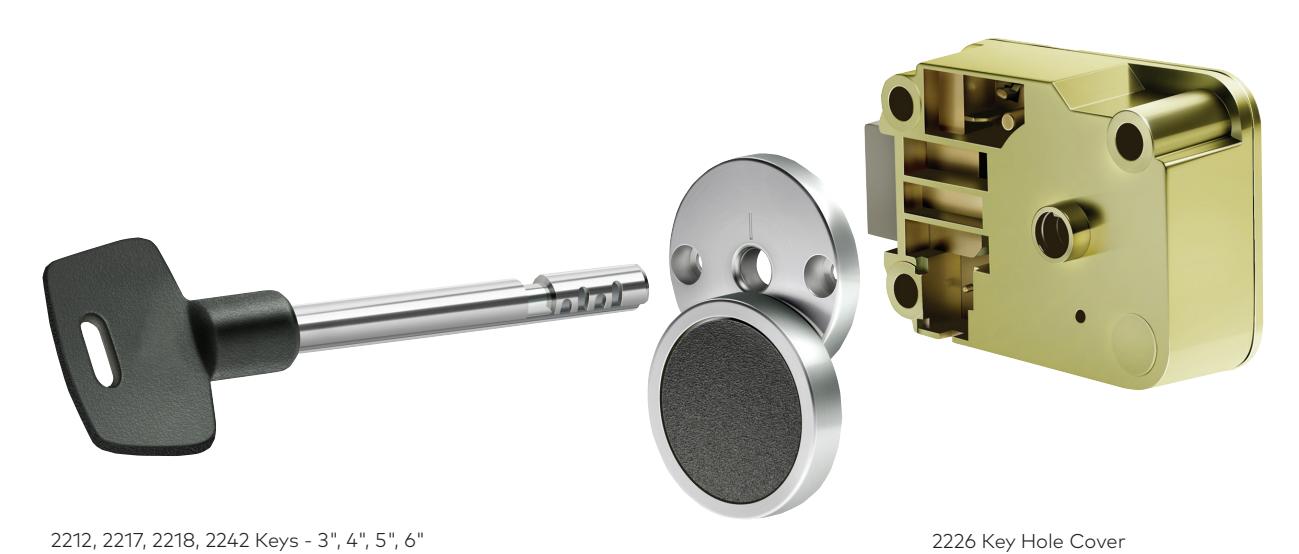

Model 2270 - 4 Wheel Keyed Combination Lock

UL Type 2, CNPP, a2p(E)

• Four brass wheels for long life
• Standard footprint
• Key retained when in open position
• Integrated re-locker, bolt blocking in case of manipulation
• Bolts available in standard 0.5" (12.7mm) and extended 1.50" (38.1mm) lengths
• Drilled and tapped bolts available US (10-32) and Metric (4mm)

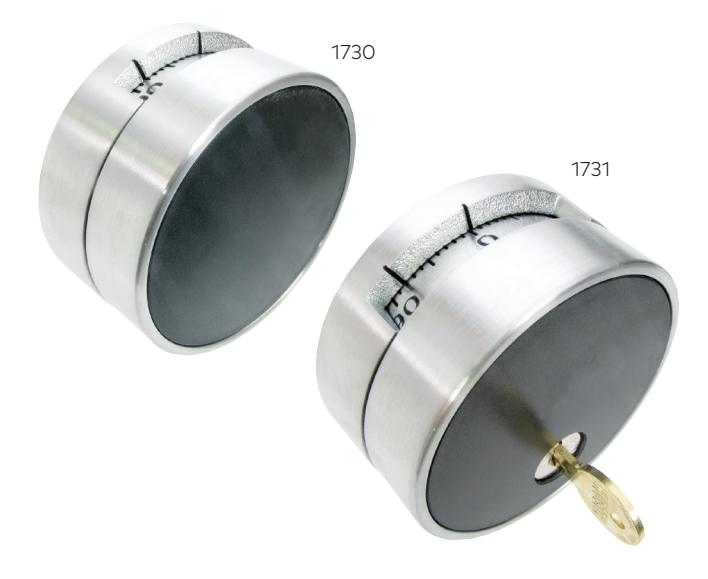

Models 1730 and 1731

1730 - Restrict-A-Vision Dial and Ring 1731 - Restrict-A-Vision Key Locking Dial and Ring

• For use with all LA GARD Mechanical Combination Locks
• Top reading
• Satin chrome finish and black numbers
• Die cast spindle 4" (102mm)

Options:

• Steel spindle 7.50" (191mm)
• Steel spindle 11.5" (292mm)

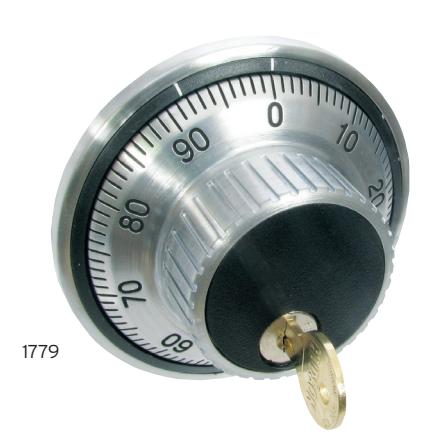

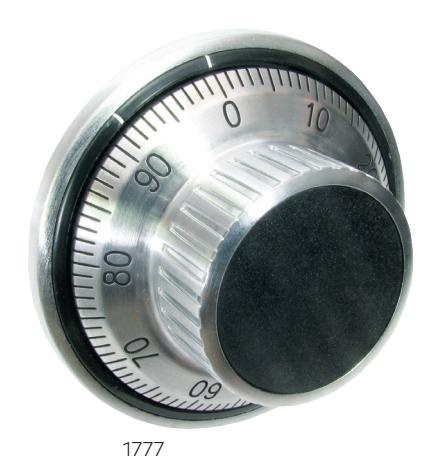

Models 1777 and 1779

1777 - Dial and Ring 1779 - Key Locking Dial and Ring

• For use with all LA GARD Mechanical Combination Locks
• Front reading
• Satin chrome finish and black numbers
• Die cast spindle 4" (102mm)

Options:

• Steel spindle 7.50" (191mm)
• Steel spindle 11.5" (292mm)
• Black finish with white numbers

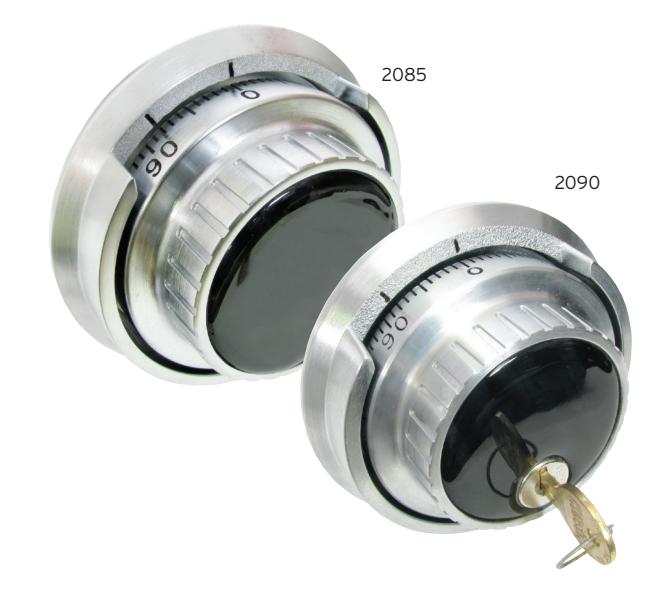

Models 2085 and 2090

2085 - VisionGard, Dial and Ring 2090 - VisionGard, Key Locking Dial and Ring

• For use with all LA GARD mechanical combination locks
• Top reading
• Satin chrome with black numbers
• Die cast spindle 4" (102mm)

Options:

• Steel spindle 7.50" (191mm)
• Steel spindle 11.5" (292mm)
• Brass finish with black numbers

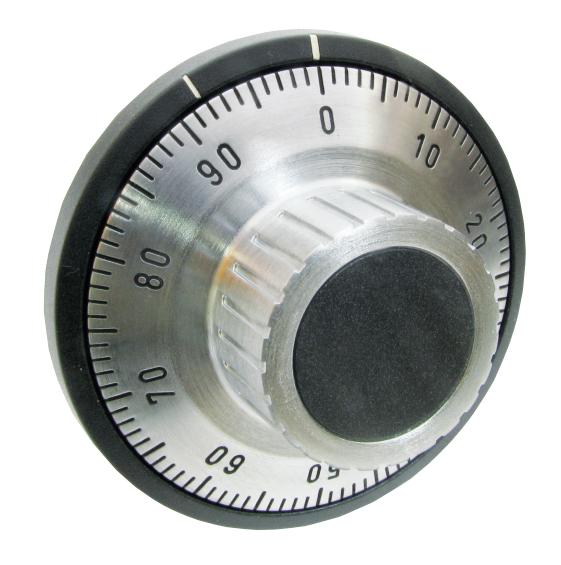

Model 2107

2107 - Small Dial and Ring

• For use with all LA GARD mechanical combination locks
• Front reading
• Die cast with satin chrome or black & white finish
• Die cast spindle 4" (102mm)

Options:

• Steel spindle 7.50" (191mm)
• Steel spindle 11.5" (292mm)
• Black finish with white numbers

Accessories

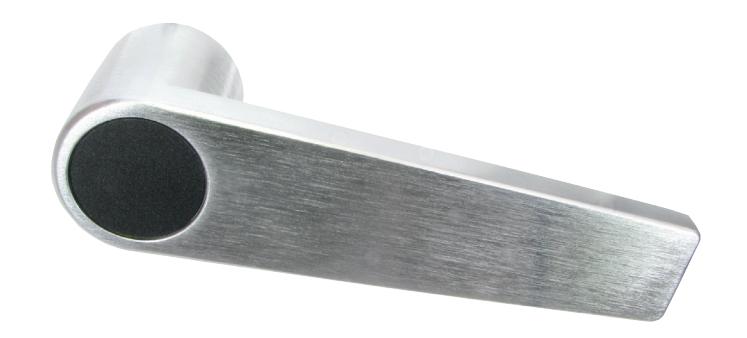

2300 - Satin Chrome Handle with Stem (2.5" x 7/16-20) 2300-1 - Satin Chrome Handle with Stem (2.0" x 5/16-40) 2301 - Satin Chrome Handle without Stem

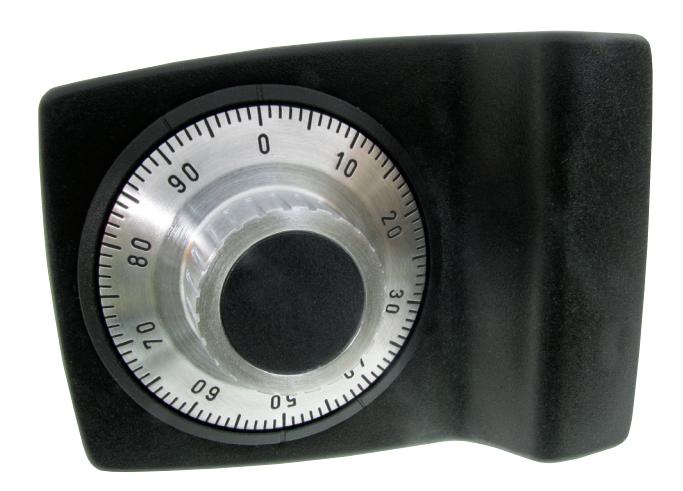

2109 - Small Dial Pull Handle - Black (dial not included)

2106 - Small Dial - Satin Chrome

2106B - Small Dial - Black

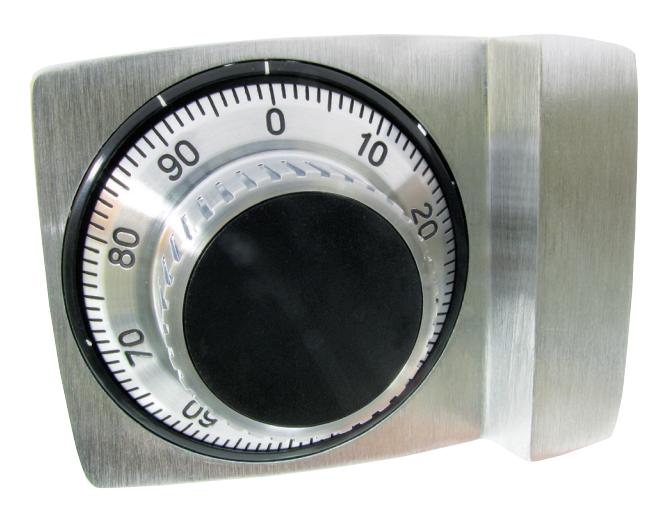

1776 - Large Dial Pull Handle (dial not included)

1762 - Dial, Satin Chrome, Key Locking

1763 - Dial, Satin Chrome
