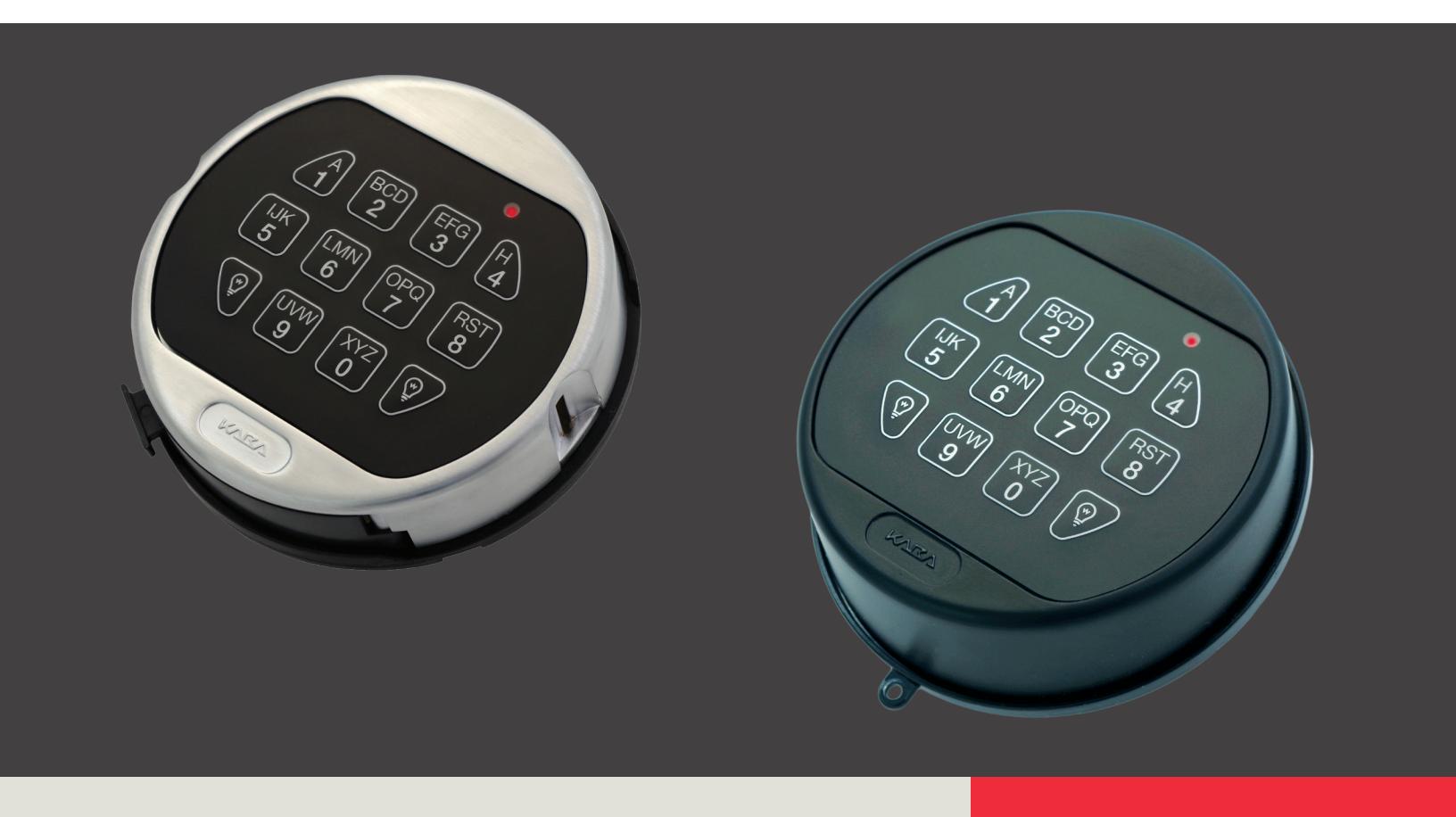

LA GARD Basic/Basic Plus Series

LA GARD Basic Series at a Glance

The LA GARD Basic Series electronic combination locks are the industry standard for security and reliability, at an economical price. The Basic offers users a simple, secure solution for access control and can be used on home safes, gun safes or any safe requiring the security and convenience of an electronic lock. Whether residential or retail, the Basic is the perfect upgrade or replacement for the traditional mechanical lock.

The Basic is a flexible entry lock, with interchangeable locks and keypads offering a multitude of choices. Swingbolt and deadbolt lock designs are available with this series. The Basic provides both affordability and dependability second to none.

• Gun Safes
• Residential
• Retail Safes
• Light Commercial

The Basic provides peace of mind by restricting access to firearms to protect family members. At the same time, quick and dependable access is guaranteed should you need to defend your home or family.

Multiple input units are available for use with the Basic lock. With so many input styles and finishes available the Basic can provide both security and beauty. Whether your home is traditional, modern or anything in between, the Basic will make the perfect accessory.

Gun Safes Residential Retail/Light Commercial

As a replacement for mechanical locks, reliability and simplicity are the Basic's best features. No need to worry that too many know a safe's combination; with the Basic, changing the combination is quick and easy. An additional level of access control is provided by the Manager Mode's capability to add or delete a user at any time.

Secure and reliable Discreet and elegant Quick and customer friendly

Basic Series Features/Specifications

Super Master Reset (SMR) Manager Mode:

• Allows the Manager to Add/Delete or Enable/Disable an additional User.
• Wrong Try Penalty
• Low Battery Signal

Programmable Features:

• None

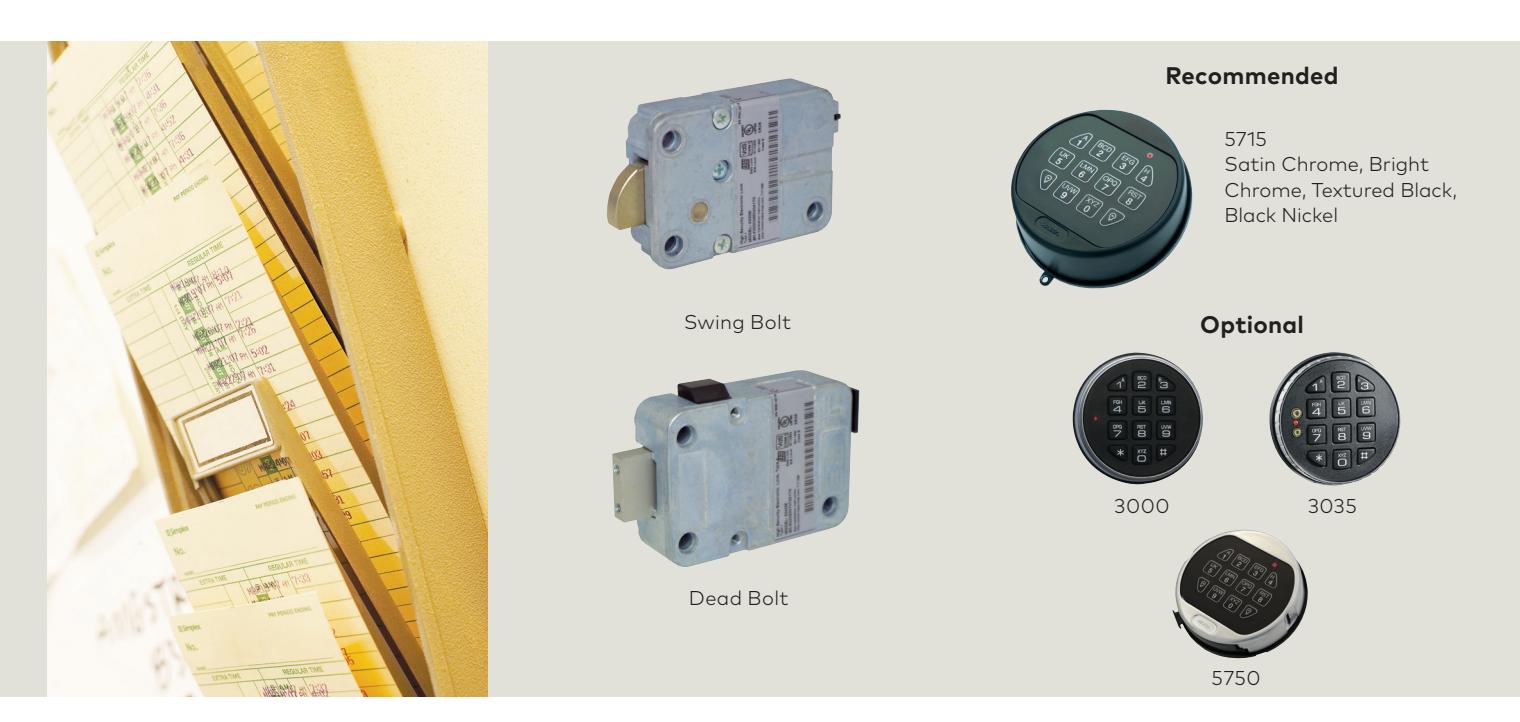

Basic Functionality Variety of Lock Types Multiple Entry Options

• Lock Types Available: • 4200M Swing Bolt
• 3740M Dead Bolt

• Entries: • Recommended
  • 5715 5750
• Optional 3000

3035 (Battery Box Required)

Backlit Keypad Standard on Models 5715 and 5750

Approvals/Certificates

4200M	5715	3750	3000	3035
Swingbolt Lock	Input Unit	Input Unit	Input Unit	Input Unit
EN 1300 VdS CNPP A2P UL	B Class 1 Listed Type 1	B Class 2 Listed Type 1	A Class 1 Listed Type 1	B Class 2 Type 1
3740M	5715	3750	3000	3035
Deadbolt Lock	Input Unit	Input Unit	Input Unit	Input Unit
EN 1300 VdS CNPP A2P UL	B Class 1* Listed* Type 1*	B Class 2 Listed Type 1	A* Class 1* Listed* Type 1*	B Class 2 Type 1

^*2666 knob required

The Basic Plus Safe Lock

The LA GARD Basic Plus is an economically priced, dual user electronic combination safe lock designed for a wide range of commercial safe applications. The Basic Plus offers users a simple, secure solution for auditable access control and is the perfect upgrade or replacement for the traditional mechanical lock.

The LA GARD Basic Plus has the following features and benefits:

Super Master Reset (SMR)

When programmed, an emergency code that will return the lock back to default mode.

• Manager performs administrative functions, can open the lock
• One or two access users lock will accept either one or two combinations
• Dual control mode two valid combinations are required to open the lock

Silent Duress Alarm (Alarm box 2789 or 4002 required)

Duress signal is sent if the last number of the combination is entered using either one number higher or lower. Lock will open without indication that a duress signal has been sent.

Audit Trail

The last 63 sequential events.

(Use of Audit Cable 43097, Audit Software and 5750-K or 3125 entry unit is required.)

Wrong Try Penalty

Four consecutive invalid codes initiate a five minute delay period.

Low Battery Indicator

Audio and visual signals.

Power Source

Single 9v alkaline battery located in the entry unit or optional battery box.

Financial Residential Retail/Commercial

Basic Plus Features/Specifications

Lock Types Standard Firmware

Swing Bolt 4200M

Dead Bolt 3470M

Recommended Entries

5750-K Only required for auditing

3125 For low-profile applications

Super Master Reset (SMR) Manager Mode:

• Configure up to 2 Users and Audits
• Single/Dual Control
• Wrong Try Penalty
• Silent/Duress Alarm
• Low Battery Signal

Lock Types Available:

• 4200M Swing Bolt
• 3740M Dead Bolt

Basic Functionality Variety of Lock Types Multiple Entry Options

Entries:

• Recommended 5750 5750-K (for audit) 3125
• Optional 3000 3035 5715

Backlit Keypad Standard on Models 5715, 5750 and 5750-K

Approvals/Certificates

4200M Swingbolt Lock	5715 Input Unit	3750 Input Unit	3000 Input Unit	3035 Input Unit
EN 1300	B	B	A	B
VdS	Class 1	Class 2	Class 1	Class 2
CNPP A2P	Listed	Listed	Listed	Type 1
UL	Type 1	Type 1	Type 1
3740M Deadbolt Lock	5715 Input Unit	3750 Input Unit	3000 Input Unit	3035 Input Unit
EN 1300	B	B	A*	B
VdS	Class 1*	Class 2	Class 1*	Class 2
CNPP A2P	Listed*	Listed	Listed*	Type 1
UL	Type 1*	Type 1	Type 1*

dormakaba USA Inc. 749 W. Short St. Lexington KY 40508 T: 859 253 4744 F: 859 255 2655

Toll-free: 877 522 2627

www.dormakaba.us
