FEATURES

• Cat.2/PL "C" high performance safety solution certified by TÜV for industrial doors
• High level of safety with a three–dimensional, complete presence detection area in front of the door
• Detects objects as small as 2 in.
• Alternative solution to contact edges, light beams, light curtains or any other safety solution
• Option of creating up to 2 virtual push buttons
• Reduces the possibility of collision/tampering damage due to the overhead mounting position
• Easy installation

DESIGNED FOR INDUSTRIAL ENVIRONMENTS

• Filters door vibrations and environmental interferences
• Filters door panel deformation caused by wind force
• Degree of protection: IP65 / NEMA 4
• External, Self Monitoring

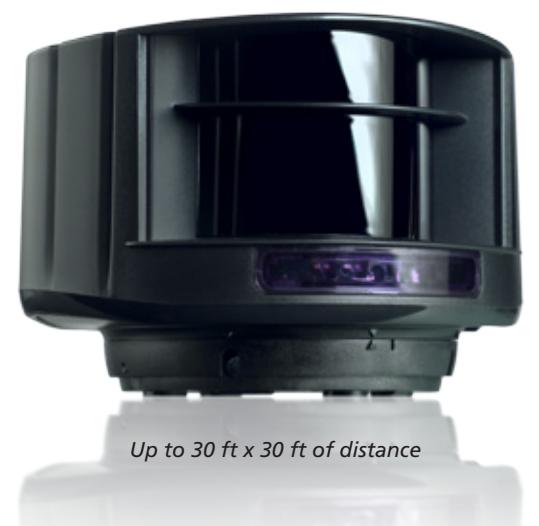

LZR®–i30 SAFETY SENSOR FOR INDUSTRIAL DOORS

LASER SCANNER

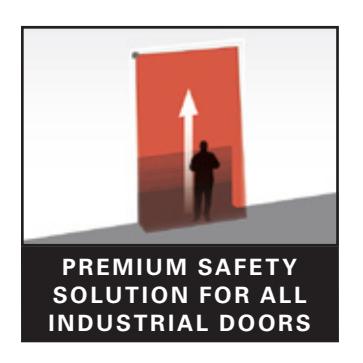

The Premium Industrial Safety Solution

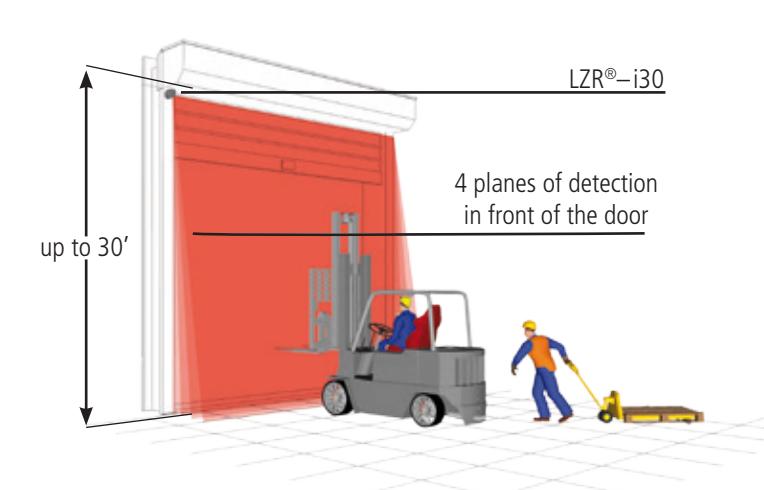

The LZR®–i30 , works according to the principle of time of flight. It emits a light impulse and measures the amount of time it takes to receive the impulse back. This accurate technology enables the sensor to scan 4 planes in the front of the door, which helps to significantly reduce hazards within the door threshold and surrounding area.

LASER DETECTION

• Time of flight measurement: allows field dimensions to be customized (floor changes can be ignored)
• Maximum detection range: 30 ft × 30 ft
• Minimum object detection size: 2 in

EASE OF INSTALLATION

• 3 visible LASER beams show the LASER safety field position
• Automatic teach–in of safety field dimensions
• Safety field depth adjustment through deactivation of curtains

Technology LASER scanner, time-of-flight measurement Detection Mode Presence (EN 12453 Typ. E) Max. Detection Range 30 ft × 30 ft Remission Factor > 2% Emission Characteristics IR LASER Red Visible LASER Wavelength 905nm; maximum output pulse power 75W Wavelength 650nm; maximum output CW power 3mW Supply Voltage 12 – 35 VDC @ Sensor Terminal Peak Current at Power-On 1.8 A (Max. 80 ms @ 35 V) Power Consumption < 5W Response Time Min 20ms; Max 80ms Output Max. Switching Voltage Max. Switching Current 2 electronic relays (galvanic isolated – polarity free) 35V DC / 24V AC 80 mA (resistive) LED-Signal 1 Blue LED: Status «Power–on» 1 Orange LED: Status «Error» 2 Bi-colored LEDs: Status «Detection / Output» Dimensions (W×L×H) 4.92 in × 3.66 in × 2.76 in (With Mounting Bracket + ½" ) / Cable Length 30 ft Material PC/ASA Color Black Rotation Angle on Bracket ±5° (Lockable) Tilt Angle on Bracket ±3° Degree of Protection IP65 / NEMA 4 Temperature Range -22ºF to +140ºF if powered Humidity 0–95% non-condensant Vibrations < 2G

TECHNICAL SPECIFICATIONS

Specifications are subject to change without prior notice.

DISCLAIMER This document as well as all other enclosed documents (quotation / specification / other) are provided «as is» without warranties of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. / Information is supplied upon the condition that the persons receiving it will make their own determination as to its suitability for their purposes prior to use. In no event will IDC be responsible for damages of any nature whatsoever resulting from the use of or reliance upon information from this document or the products to which the information refers. / IDC has the right without liability to change descriptions and specifications at any time. / Prices, shipping and availability are subject to change without prior notice.

Cut Target < 11.81 in × 7.87 in × 27.56 in @ 23 ft (EN 12445 testbody A)

2006/95/EC: LVD; 2002/95/EC : RoHS; EN 60825-1; EN 61000-6-1:

EMC-Commercial Level; EN 61000-6-2: EMC - Industrial level; 9.9 < 1999/5/EC : R&TTE; 2004/108/EEC: EMC ; 2006/42/EC: MD EN 60950-1; EN 60529; IEC 60825; EN ISO 13849-1Performance Level "c", CAT 2; EN 12445; EN 12453 Typ E

Pollution on Front Screens Max. 30%; Homogenous

Norm Conformity
