LRPDQ1L – LRPDQ1R PDQ INSTALLATION INSTRUCTIONS FIELD RETROFIT LATCH STATUS-REX SWITCH KIT

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

LRPDQ1L / LRPDQ1R PDQ INSTALLATION INSTRUCTIONS FIELD RETROFIT LATCH STATUS/REX SWITCH KIT

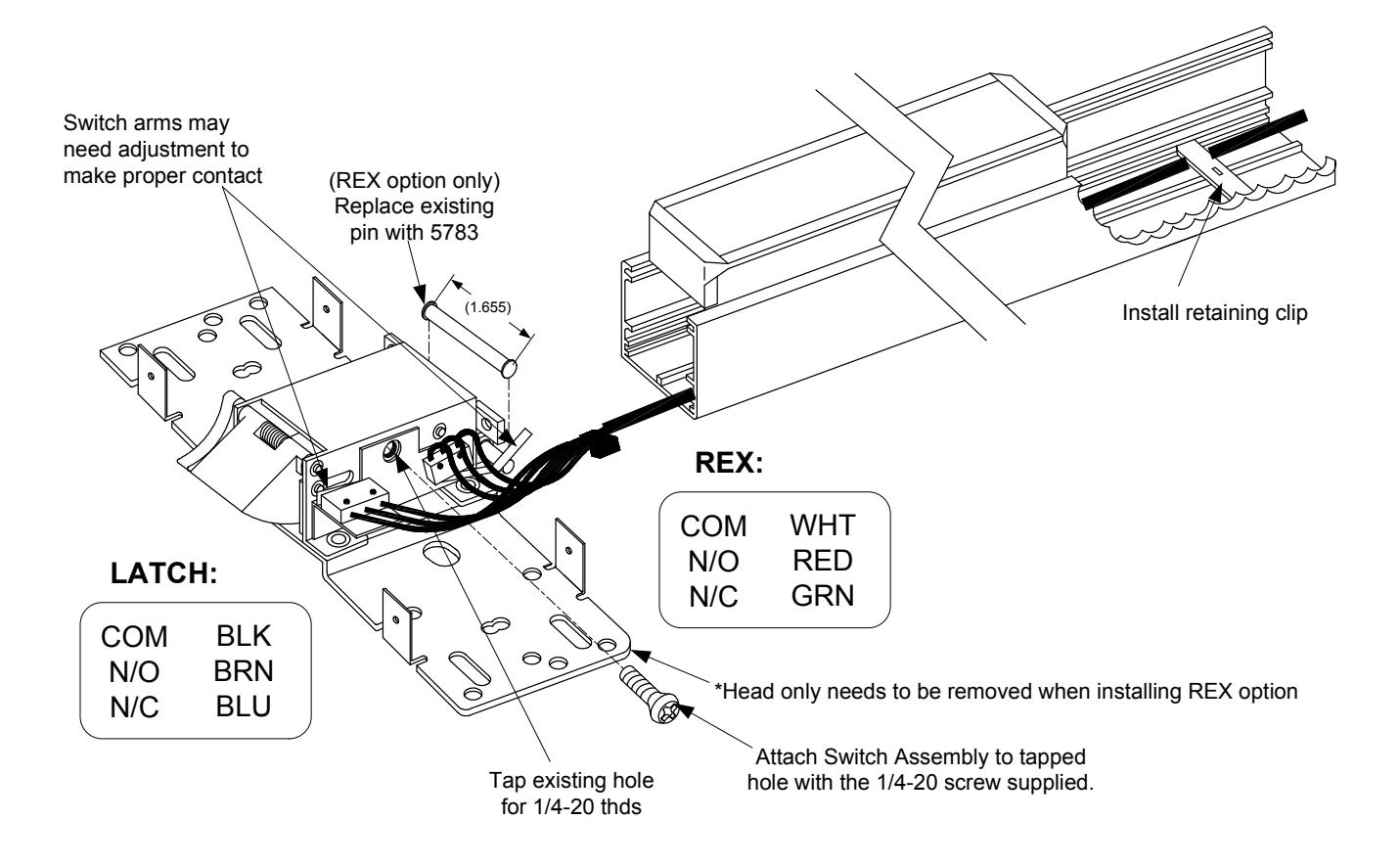

Remove Head Cover (For REX option remove head from device). Tap existing hole for 1/4-20. Replace existing pin with SDC P/N 5783. Attach switch assembly using the supplied 1/4-20 screw. Route wires thru extrusion as shown and use retaining clip to safely lock wires in place. Replace Head and Head Cover

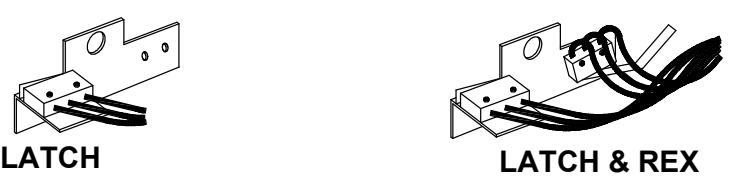

LRPDQ1R LRPDQ1L LRPDQ1RL
