LRAR1R Rex Switch Assembly Installation Instructions for Adams Rite Rim and Vertical Rod Exit Device

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

LRAR1R INSTALLATION INSTRUCTIONS REX SWITCH ASSEMBLY

ADAMS RITE MODELS: 3100, 3600, 3700, 8100, 8200, 8500, 8600 & 8700

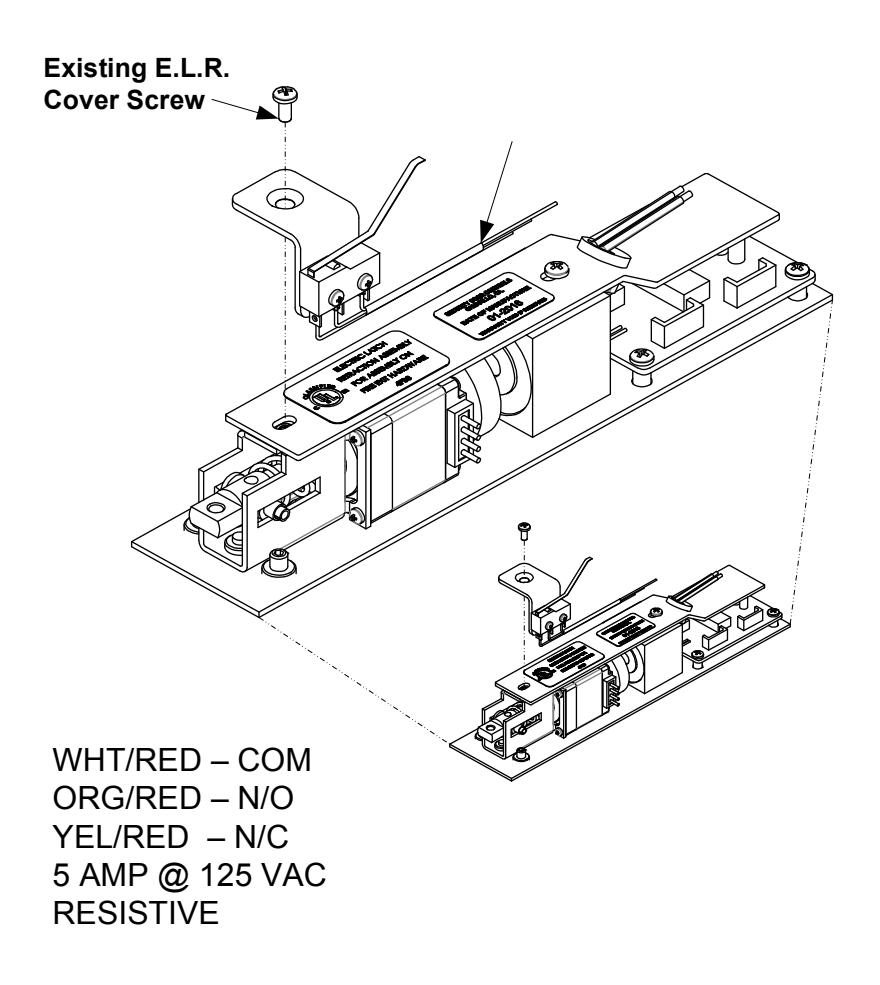

Use the existing screw located on front of the cover to attach the LRA1R Switch Assembly where shown. NOTE: Remove E.L.R. Assy. from device for proper installation
