Hospital Push/Pull Latches

LR6700 Series – Ligature-Resistant Trim Only for use with Other Manufacturers' Mortise Lock Body

Standard Features

  • New ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
  • ABH custom manufactures the hospital push/pull trim to work with other manufacturers' mortise lock bodies
  • existing lock bodies and keyway system in-tact and keep costs low
  • Models and manufacturers are as follows:
    • LR6710 Trim for Best*, Falcon*, Marks* or Dorma* mortise lock body
    • LR6720 Trim for Schlage* mortise lock body
    • LR6730 Trim for Yale* mortise lock body
    • LR6740 Trim for Corbin Russwin* mortise lock body
    • LR6750 Trim for Sargent* mortise lock body
    • LR6760 Trim for PDQ* mortise lock body
    • LR6770 Trim for Arrow* mortise lock body
  • No mortise lock body or strike supplied
  • Must complete special order form found online www.abhmfg.com or by sending in a sample mortise lock body being used prior to manufacturing
  • 1-¾" standard door thickness minimum (specify if greater than 1-¾")
  • Meets ADA requirements
  • All mounting hardware goes through existing mortise lock body prep – no additional prep required
  • One continuous spring provides a smoother operation and an extended life for the unit
  • Push/pull trim is non-handed for installation ease
  • Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
    • For mortise lock functions where thumb turn will be used, mount the trim horizontal to achieve required clearance
  • or less, up to 4'0" x 8'0"

*Brand names are trademarks or registered trademarks of their respective companies.

• Patents Pending

How to Order:

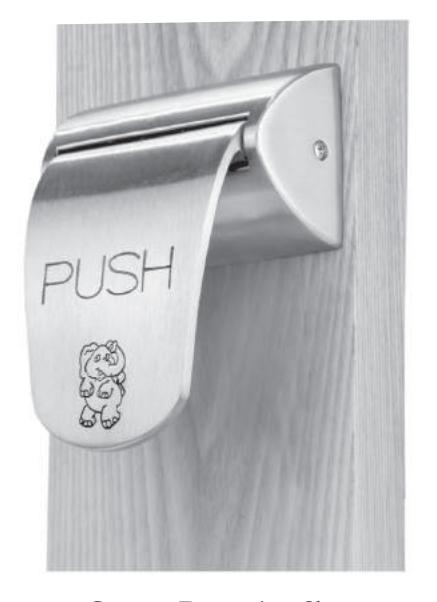

Custom Engraving Shown (Mortise Lock Body not included)

ABH HIGHLY RECOMMENDS THE USE OF A KNOB VERSION LOCK BODY VS. A LEVER VERSION LOCK BODY

Example: LR6710 – US32D – AM
Model:
• LR6710 • LR6720 • LR6730
• LR6740 • LR6750 • LR6770
     Finish: • US32D • US32 • US10B • US3
     • US26D • US26 • US10 • US4
               Options, if Needed:
               • AM • L • PL • PS • SEC • THICK • P
               (See pages C-3 to C-5 for details)

Architectural Builders Hardware Manufacturing, Inc. 1222 Ardmore Avenue, Itasca, IL 60143 Tel: 630-875-9900 • Fax: 630-875-9918 / 800-932-9224
