LR6600 Series Wide Paddle, Push Pull latch Trim with Mortise Lock – Cut Sheet

Hospital Push/Pull Latches

LR6600 Series – Ligature-Resistant Trim with Mortise Lock Body

Standard Features

• Mortise lock body provided specify function (see page C-16 to C-17 for details)
• New ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
• Mortise lock body only available in 2-¾" backset
• 4-⅞" ASA strike supplied standard
• ¾" latch bolt throw
• Mortise lock cylinder and cam not provided
• Uses clover leaf-type cam Best®* C258 or equal (except 6638 and 6645 models, which use Best®* C293 or equal on outside)
• 6 Pin Cylinder = 1-⅛" long
• 7 Pin Cylinder = 1-¼" long
• 1-¾" standard door thickness minimum (specify if other than 1-¾")
• Meets ADA requirements
• All mounting hardware goes through mortise lock body prep – no additional prep required
• Trim is non-handed; however, the mortise lock
• Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
• For mortise lock functions where thumb turn will be used mount the trim horizontal to achieve required clearance
• Handles can be mounted up or down by simply rotating trim 180º
• rated 90 minutes or less, up to 4'0" x 8'0"
• Patents Pending

How to Order:

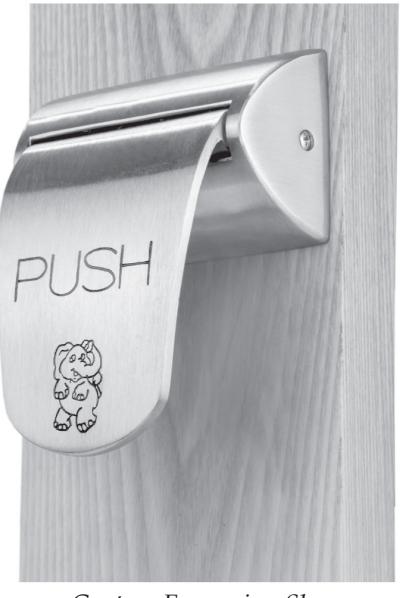

Custom Engraving Shown

Example: LR6610 LH – US32D – AM
Model:
• LR6610 = Passage • LR6641 = Institutional • LR6656 = Classroom
• LR6632 = Privacy • LR6645 = Hotel • LR6658 = Storeroom
• LR6637 = Communicating • LR6653 = Dormitory
• LR6638 = Public Entrance
 Lock Body Handing:
 • LH = Left Hand • LR = Left Hand Reverse
 • RH = Right Hand • RR = Right Hand Reverse
 Finish:
 • US32D • US32 • US10B • US3
 • US26D • US26 • US10 • US4
 Options, if Needed: • AM • L • PL • PS • SEC • THICK • EL • EU • RX • P
 (See pages C-3 to C-5 for details)

*Brand names are trademarks or registered trademarks of their respective companies.
