LR6000 Series Cut Sheet – Wide Paddle Cylindrical Push Pull Latch

Open the original PDF document

Hospital Push/Pull Latches

New ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
Cylindrical latch application passage function
1-3/4" standard door thickness (specify if different)
Meets ADA requirements
Trim is mounted using four thru-bolts for maximum stability
Non-handed for installation and stocking ease
Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
LR trim also available for mortise lock bodies LR6600 and LR6700 Series (See pages C-16 and C-20 for details)
1/2" Latch Bolt Throw
Patent# 7,258,374 & Additional Patents Pending

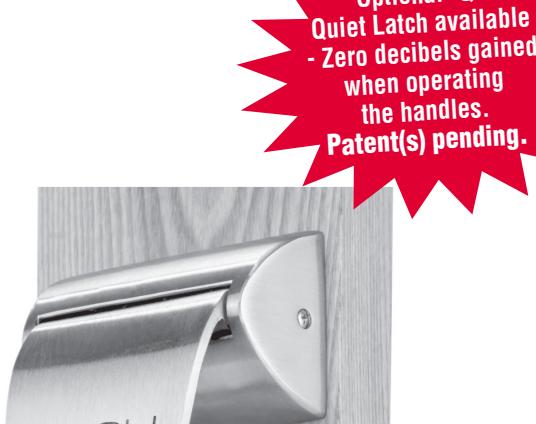

Optional Custom Engraving Shown
