LPR36 Inch Specification Sheet
Open the original PDF document
View PDF
1ST PEDESTRIAN DOOR PUSH PLATE LISTED UNDER UL325
DAMAGE RESISTANT TO HEAVY DUTY IMPACTS
IDEAL FOR INDIVIDUALS WITH LIMITED MOBILITY
International Door Closers, Inc.
COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com
36" FACEPLATE FOR MAXIMUM ACCESSIBILITY

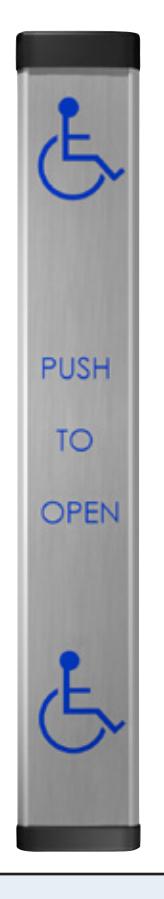

LPR36 PUSH PLATE
ACCESSIBILITY SERIES
The LPR36 maximizes accessibility and independence for people with disabilities. The entire surface is "all-active" with four redundant membrane switches for consistent coverage. The LPR36 is constructed from a stainless steel faceplate that makes it highly durable and able to withstand harsh weather conditions, while keeping it rust and corrosion free.
FEATURES
- 36 × 6 inch activation area
- Low profile and 1-inch thick with a stainless steel faceplate
- Clear, powdercoat finish reduces unwanted fingerprinting
- "All-active" faceplate allows activation from any angle
- Listed under UL325 for both US and Canada
- Exceeds the California Building Code: Section 1117B.6
- Can be mounted to either a wall or bollard in a few easy steps
- Ideal for users with limited mobility or when accessibility is key
- Optional built-in wireless transmitter is pre-installed in the top end cap
West: 800-544-4422 • East: 800-225-6737
WIRELESS OPTIONS 10LPR361 - 433 , 300
RELATED PRODUCTS

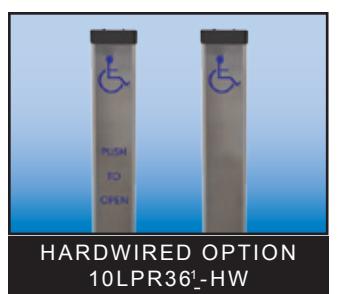

PRODUCT FAMILY
BLK= Black, SLV= Silver, BRZ= Bronze

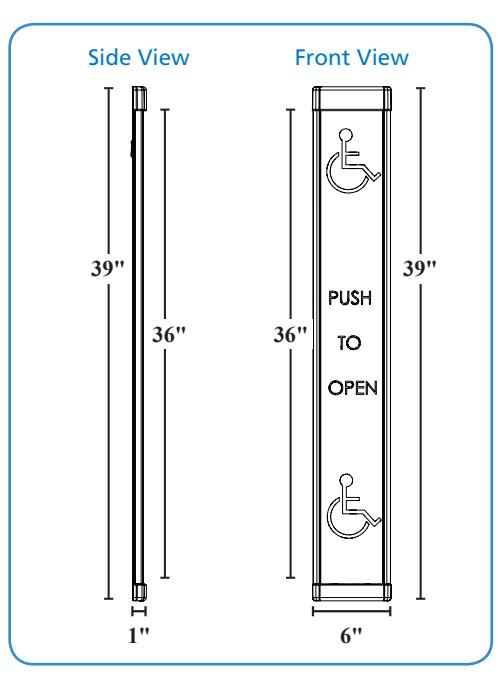

DIMENSION DETAILS

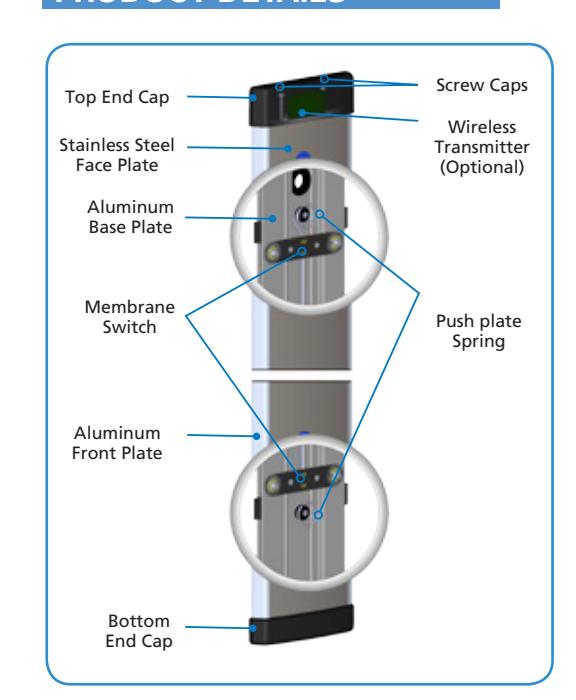

PRODUCT DETAILS
MATERIAL SPECIFICATIONS
| Switch Traces | FR4 Gold Plated |
|---|---|
| Membrane Switches | 3M 7993MP |
| Base Plate | Aluminum |
| Faceplate | Stainless Steel |
| End Cap | UL94 ABS |
TECHNICAL SPECIFICATIONS
| Contact Configuration | SPST N.O. |
|---|---|
| Switching Voltage | .1 to 50 VDC |
| Switching Capacity | 1 Watt |
| Switching Current | .005 to 100 ma DC |
| Contact Bounce | < .3 ms make; |
| < .6 ms break | |
| Trip Force | 1.5 lbs |
| Two Conductor Cabling | 24 awg |
| 7 x 32 stranding UL 1007 | |
| Operation Temperature | -31º F to +212º F |
| -35º C to +100º C | |
| Contact Life | 2 million cycles |
| Transmitter Frequency | 300, 390, or 433 MHz |
Specifications are subject to change without prior notice.
