Electrified Latch Pullback Mortise Lock

LPM1 SERIES

• Latch Retraction in ^a mortise lock
• Great integrated solution for doors w/ auto-operators
• Direct retrofit for Schlage L series
• Dual solenoid functions offer greater control, ideal for single occupancy restrooms
• UL Listed
• 3 year no hassle warranty

Innovative and Affordable Solution

The Command Access LPM1 series mortise lock utilizes a high quality Grade 1 chassis built to withstand years of abuse. This unique model brings latch retraction to a standard mortise lockset. Requiring no special door prep, this is the perfect solution for push-pull conditions, handicap access, and for automatic operators where panic devices are not necessary. The LPM1 takes advantage of out patented PM300 technology, allowing for favourable wire runs and multiple locks on one power supply. It is field handible and available in Fail Secure (EU) functionality. This mortise lock uses standard 'type 86' door prep and can retrofit to Schlage L9000 compatible trim. We offer this model as chassis only or with complete trim.

**Must be used with a Command Access PS210, PS1, PS2, PS220/220B, PS440B, or PS5-4 power supply.**

18 ga + wire required for power transfer

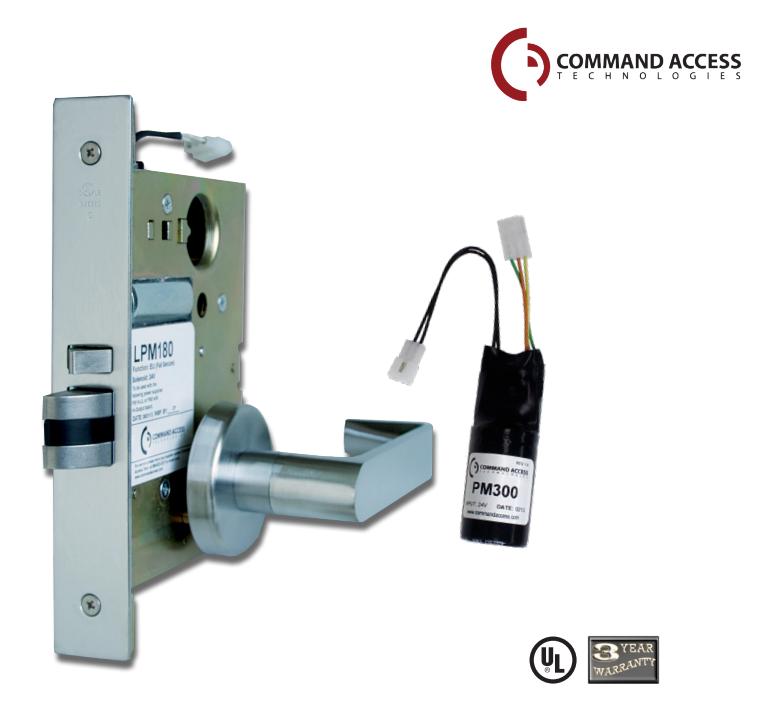

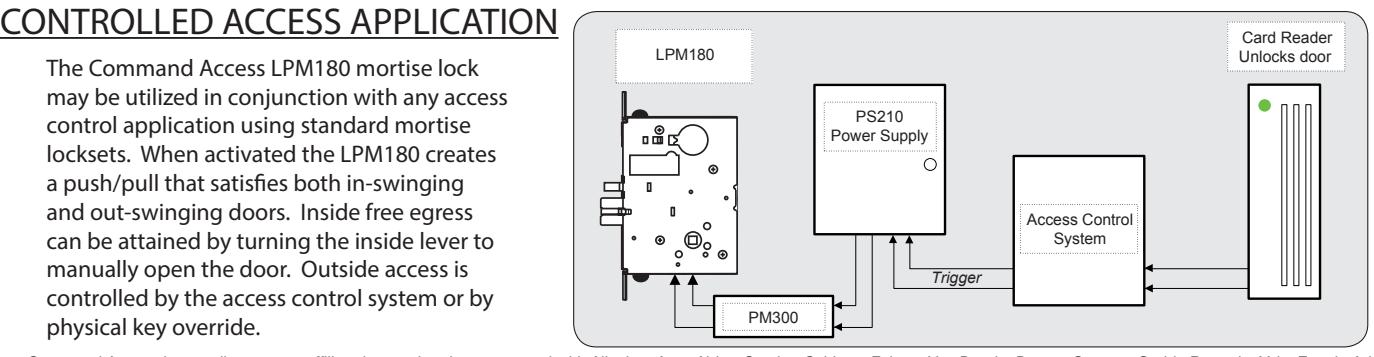

The Command Access LPM180 mortise lock may be utilized in conjunction with any access control application using standard mortise locksets. When activated the LPM180 creates a push/pull that satisfies both in-swinging and out-swinging doors. Inside free egress can be attained by turning the inside lever to manually open the door. Outside access is controlled by the access control system or by physical key override.

Command Access is not a licensee, or affiliated, associated or connected with Allegion, Assa Abloy, Stanley, Schlage, Falcon, Von Duprin, Dorma, Sargent, Corbin Russwin, Yale, Emtek, Adams Rite, Best, Precision, Arrow, Design Hardware, Cal Royal, Jackson, AHT, Marshall Best, Marks, Accurate, Baldwin, FSB, PDQ, Lawrence, Trans Atlantic, Hager, LSDA, General Lock, or Omnia or any of their subsidiaries or affiliates. 20203_G

Electrified Latch Pullback Mortise Lock

LPM110EU

Passage

Latchbolt retracted by lever outside or by lever inside. Applied power Latchbolt Control:

electronically (EU) retracts latchbolt for push/pull operation.

Outside Lever & Inside Lever Lever Control:

Always free ingress & egress

LPM180EU Storeroom

Latchbolt retracted by key outside or by lever inside. Applied power Latchbolt Control:

electronically (EU) retracts latchbolt for push/pull operation.

Outside Lever Lever Control:

Always Rigid (Locked)

Inside Lever Always free egress

LPM182EU

Institutional

Latchbolt retracted by key outside or inside (Double Cylinder operation). Latchbolt Control:

Applied power electronically (EU) retracts latchbolt for push/pull operation.

Outside Lever & Inside Lever Lever Control:

Always Rigid (Locked)

LPM183EUxEL LPM184EUxEU

Storeroom x Storeroom

Latchbolt retracted by key outside or by inside lever. Applied power Latchbolt Control:

electronically (EU) retracts latchbolt for push/pull operation.

Outside Lever Lever Control:

X

EL - locked electronically: Applied power prohibits Outside lever from

retracting latchbolt.

EU - unlocked electronically: Applied power allows Outside lever to

retract latchbolt. Inside Lever Always free egress.

LPM185EUxEL LPM186EUxEU

Institutional x Storeroom

Latchbolt retracted by key outside or inside (Double Cylinder operation). Latchbolt Control:

Applied power electronically (EU only) retracts latchbolt for push/pull

operation. X

Outside Lever Lever Control:

Always Clutching (Does not activate outside lever at anytime)

Inside Lever

EL - locked electronically: Applied power prohibits Inside lever from

retracting latchbolt.

EU - unlocked electronically: Applied power allows Inside lever to retract

latchbolt.

LPM187EUxEL LPM188EUxEU

Institutional x Institutional

Latchbolt retracted by key outside or inside (Double Cylinder operation). Latchbolt Control:

Applied power electronically (EU only) retracts latchbolt for push/pull

operation. X

Outside Lever & Inside Lever Lever Control:

EL - locked electronically: Applied power prohibits both levers from

retracting latchbolt.

EU - unlocked electronically: Applied power allows both levers to retract

latchbolt.

Electrified Latch Pullback Mortise Lock

Trims Available	Levers Available	Finishes Available	Sample
L	3	605	L3 605
L_B	6	612	L7B 613
		613	ESC17 626
ESC	7	625	Trim Dimensions L = 2-7/16"
	17	626	LB= 2-3/4" ESC= 1-3/4" x 8"

Note: Less OS or IS trim available upon request

All configurations not available . Call for availability

SPECIFICATIONS

FEATURES:

• • No special lock prep required fits standard mortise pocket prepped for a Schlage "L" series lock
• • Utilizes our patented PM/PWM technology
• • Circuitry allow for momentary or continuously on "push/pull" applications
• • Available is complete locksets or in chassis only (retrofits to Schlage "L" series compatible trim)
• • Must be used with a Command Access PS210,PS1, PS220/220B/ PS440B, or PS5-4 power supply
• • No hassle 3-Year Warranty

LATCHBOLT SOLENOID SPECIFICATIONS:

• • Operating Voltage 24 VDC (+/- 10%)
• • Holding Current Amperage 260mA@24VDC
• • Surge Current Amperage 1.9A for 350ms@24VDC
• • Peak Current 7 A @ 24VDC
• • Solenoid coil resistance 1.75 Ω
• • Wire gauge: Minimum 18 gauge
• • 300' with 18ga wire

LEVER SOLENOID SPECIFICATIONS:

• • Operating Voltage 24VAC/DC (+/- 10%)
• • Amperage 24v = 350mA
• • Solenoid coil resistance 24v = 69Ω

OPTIONS:

• • REX Request to Exit switch available
• • LBM- Latchbolt Monitor switch available
