LFIC Lockset Timing Instruction I-LS01987

3470 / 3473 LEVER SET TIMING INSTRUCTIONS

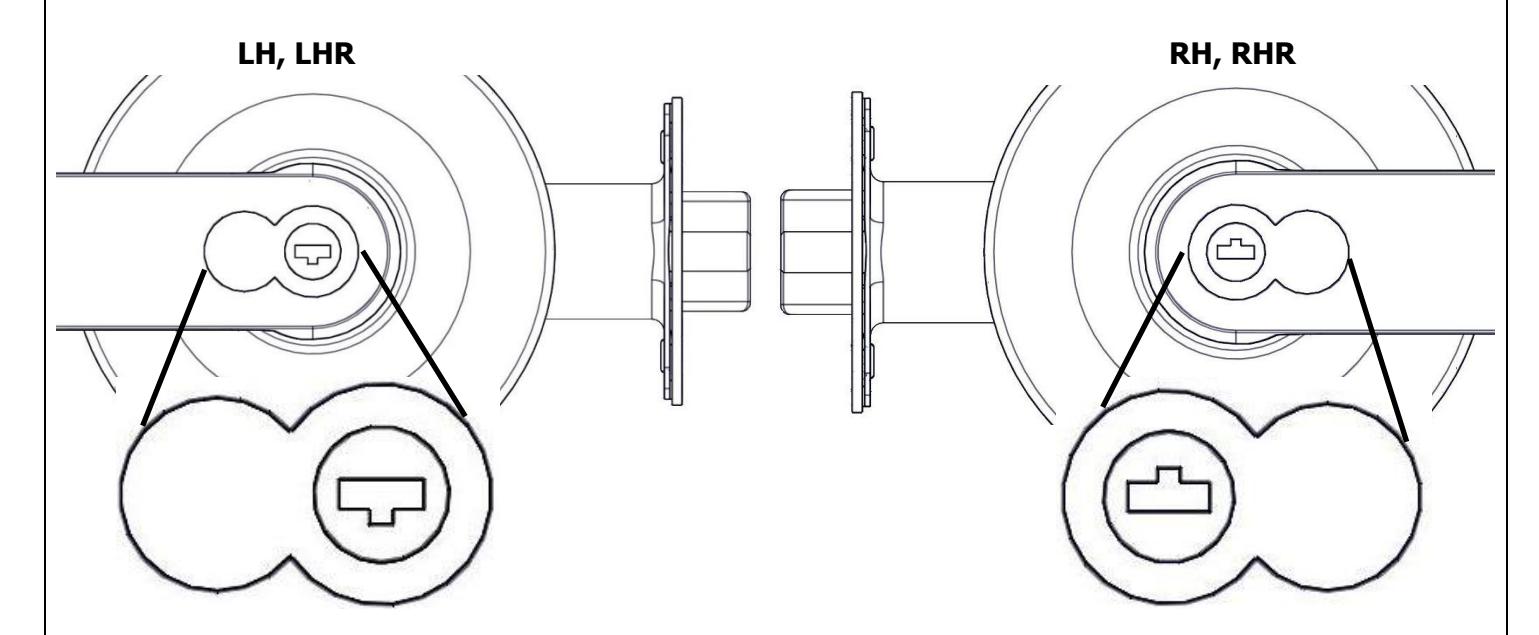

• 1. USING A SCREWDRIVER, ROTATE THE CAM CLOCKWISE UNTIL THE CAM PROFILE LOOKS LIKE THE PICTURE ABOVE (BASED ON HANDING).
• 2. INSERT THE CONTROL KEY INTO THE LFIC CYLINDER AND INSTALL PER INSTRUCTIONS.
• 3. WHEN INSERTING THE CYLINDER INTO THE LEVER, DO NOT FORCE! INSERT UNTIL THE FACE PLATE IS FLUSH WITH THE LEVER FACE.

[SEE PAGE 2 FOR 3495 TIMING INSTRUCTIONS]

3495 LEVER SET TIMING INSTRUCTIONS

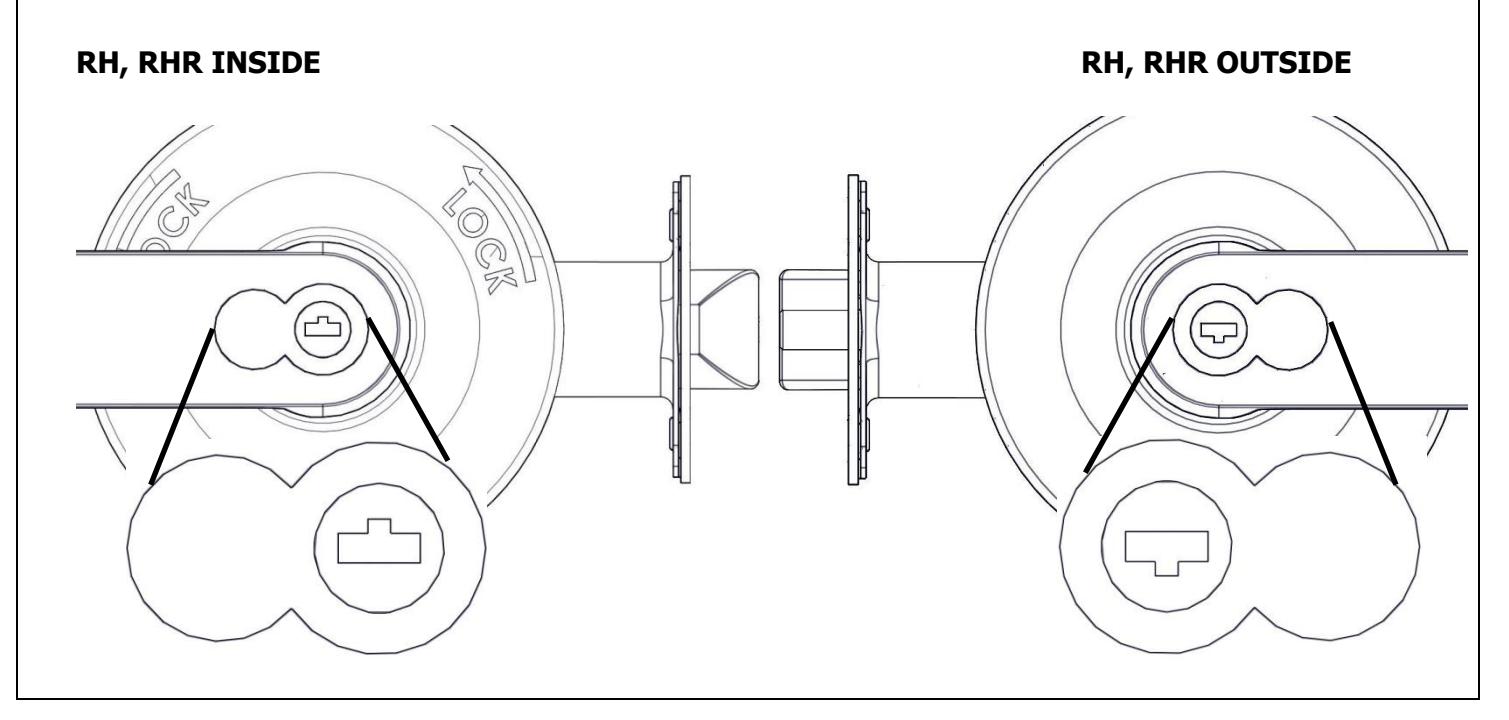

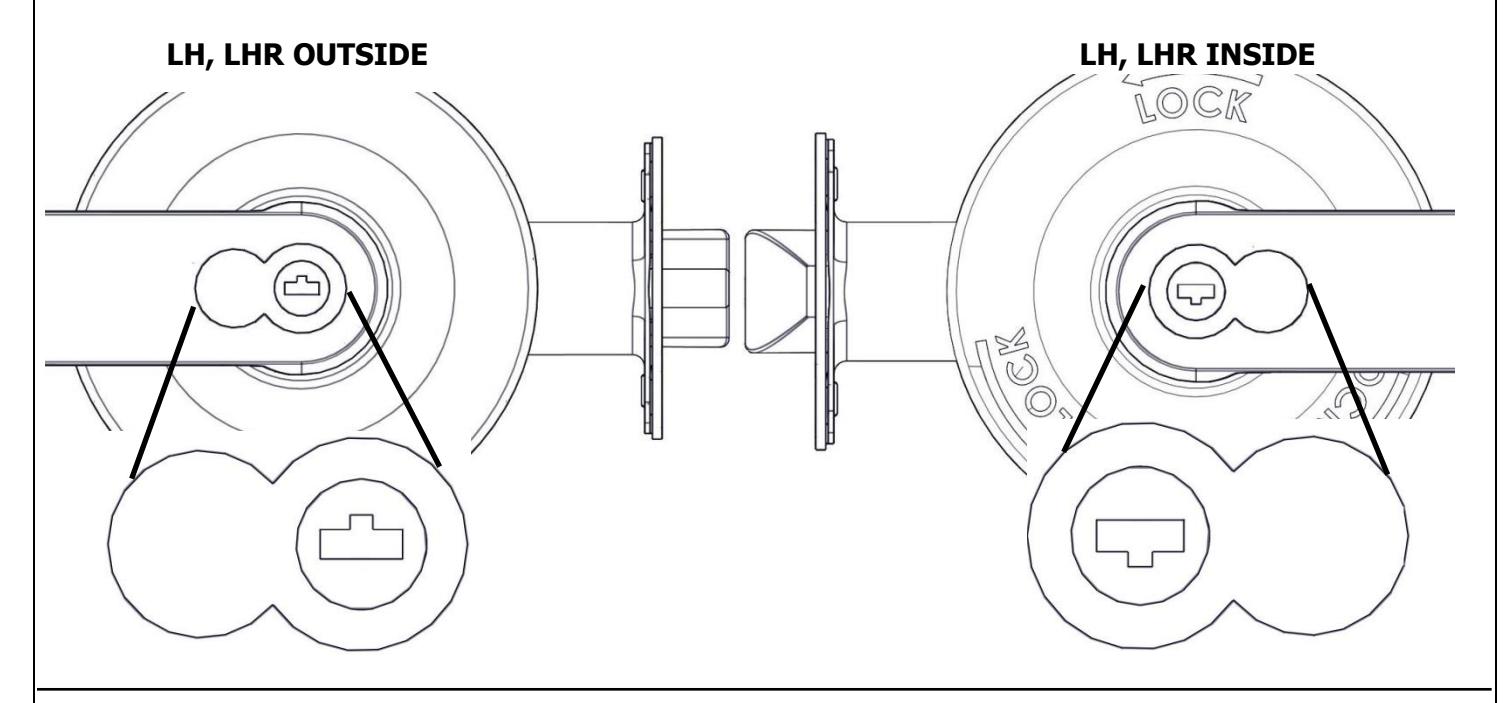

• 1. USING A SCREWDRIVER, ROTATE THE CAM CLOCKWISE UNTIL THE CAM PROFILE LOOKS LIKE THE PICTURE (BASED ON HANDING AND INSIDE / OUTSIDE).
• 2. INSERT THE CONTROL KEY INTO THE LFIC CYLINDER AND INSTALL PER INSTRUCTIONS.
• 3. WHEN INSERTING THE CYLINDER INTO THE LEVER, DO NOT FORCE! INSERT UNTIL THE FACE PLATE IS FLUSH WITH THE LEVER FACE.
• 4. REPEAT STEPS 1-3 FOR THE OPPOSITE SIDE OF THE LOCK.

NOTE : BOTH CYLINDERS NEED TO BE INSTALLED FOR THE LEVER SET TO FUNCTION
