LCN_Senior_Swing_Order_Form_111969

Senior Swing Ordering Guide

* Note: fill out for ONLY one package per order form

Customer Information
First Name				Last Name
Phone Number				Job Name
Email Address
Order Information
Shipping Address				Ship Via
Requested Ship Date				Customer PO
	Discount / Quote Number
1. Specify Header Style					Note for 2811 DD Series (only select one):
2811		2853	Double Door		Prep for mechanical closer (2011 Series +
9530		2863	Double Door		Hand) NO prep for mechanical closer (Check
9540		9550	Double Door		Only)
		9560	Double Door
2. Specify Header Length / Door Size * See Figure 1.1 for Senior Swing Header length					3. Specify Measurement (based on information in Step 2)
2811
2853
2863
9530/9540
9550
9560
4. Specify Spindle Location
-OR- Surface					Concealed
Other (please specify):
5. Specify Arm	Surface		-OR-		Concealed
				ONE below:	If you selected "Concealed Center Pivot" choose
				Fixed Positive	Breakaway Stop
6. Specify Hand				7. Specify Finish
Right Hand Double Egress RH					Anodized Clear (Aluminum)
Left Hand Double Egress LH				Anodized Bronze

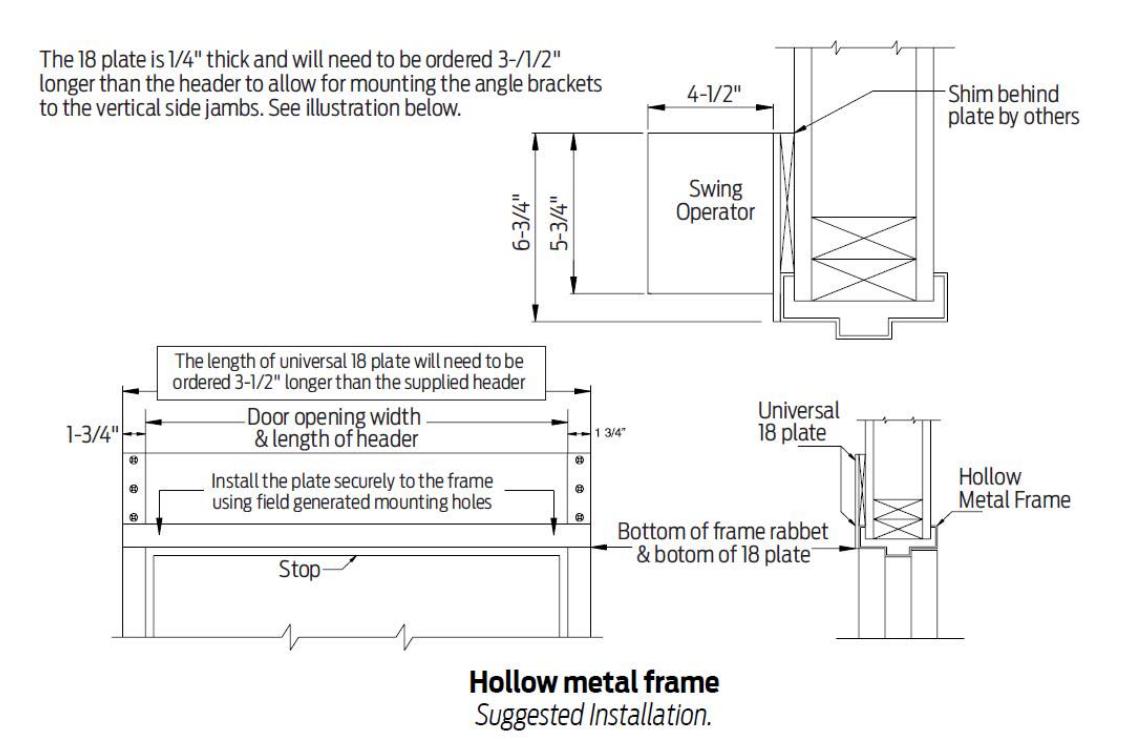

Figure 1.1 Senior Swing Header Length
