LCN_Offset_Pivot_Arm_Installation_Instructions_107506
Open the original PDF document
View PDF
740013

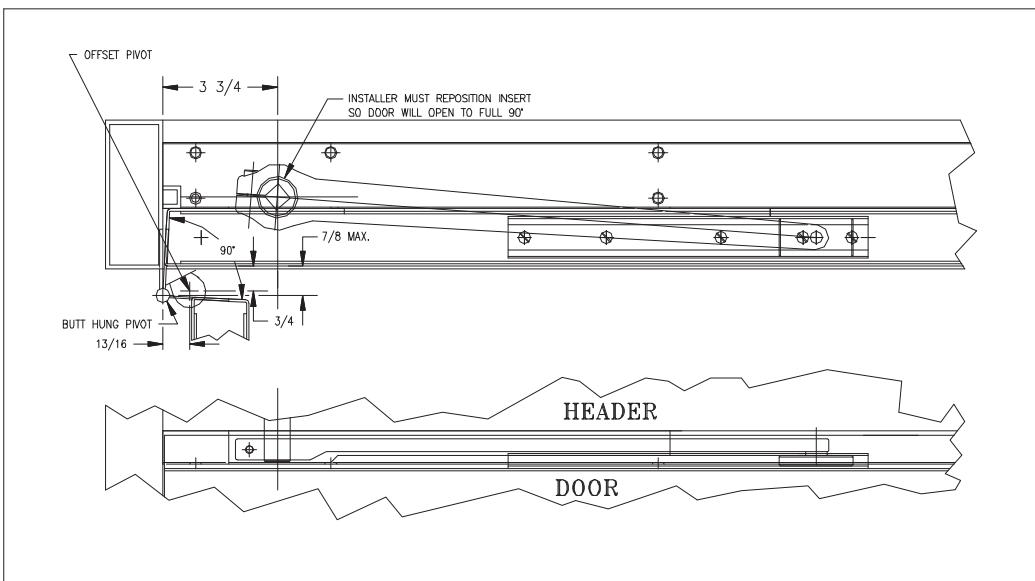

Offset Pivot Arm
Installation Instructions

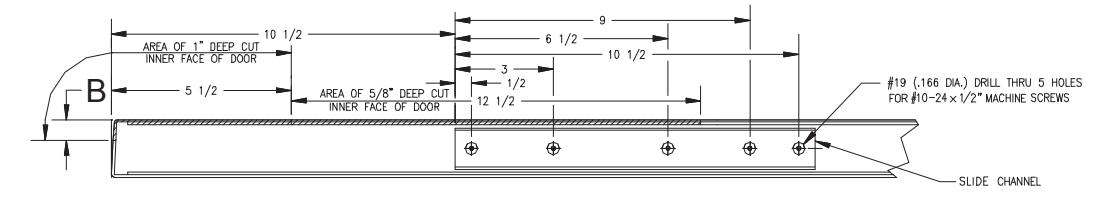

| Door Thickness (A) | Measurement B |
|---|---|
| 1 C\v" | B" |
| 2" | M" |
| 2 Z\v" | 1 Z" |
| 2 C" | 1 Z\v" |
| 2 Z\x" | 1 C" |
