4050A Series

62A Bracket Installation Instructions

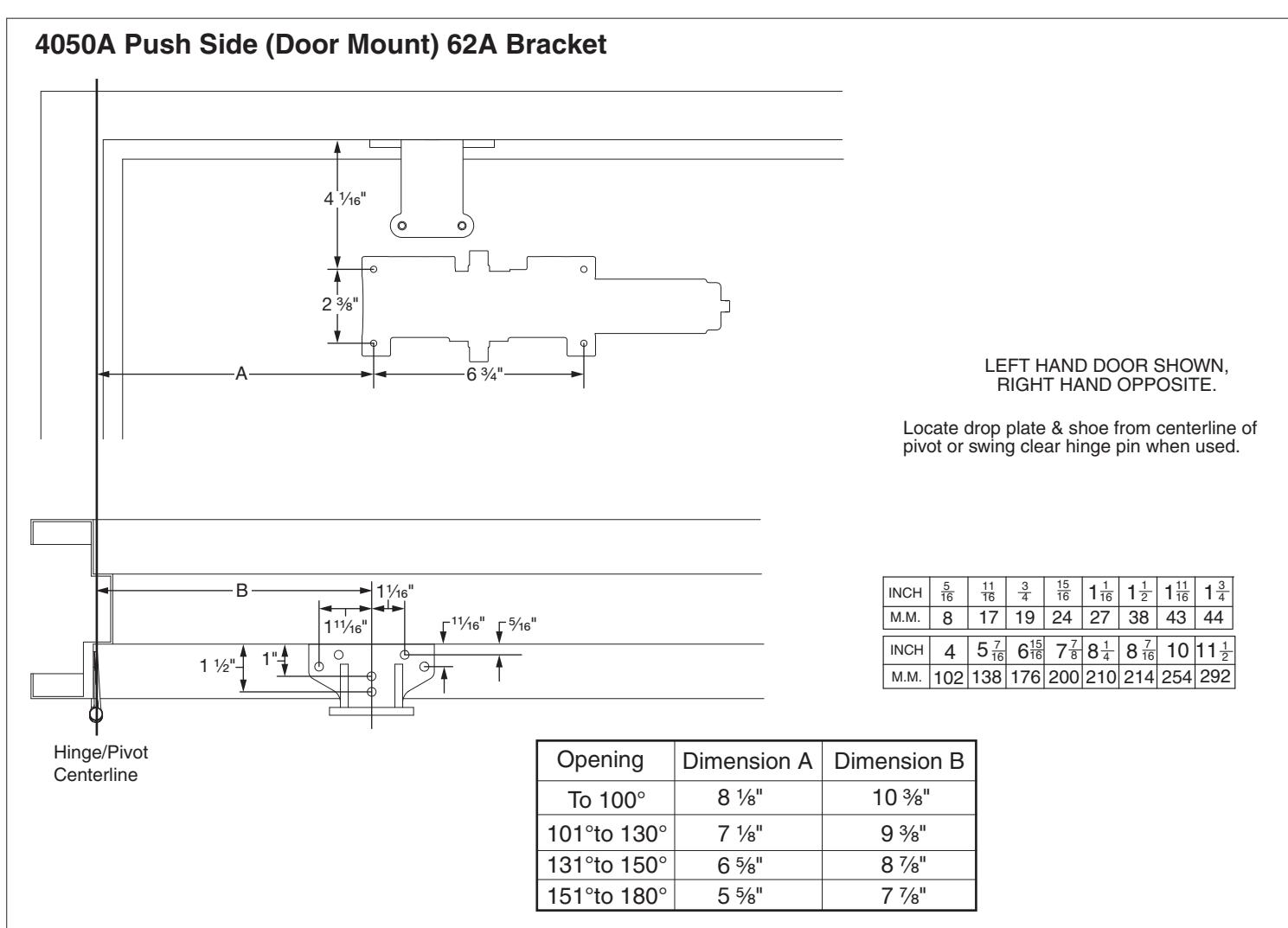

1a *Locate closer and shoe from centerline of pivot or swing clear hinge pin when used.
1b **This dimension is always from the same surface as the shoe is mounted on.

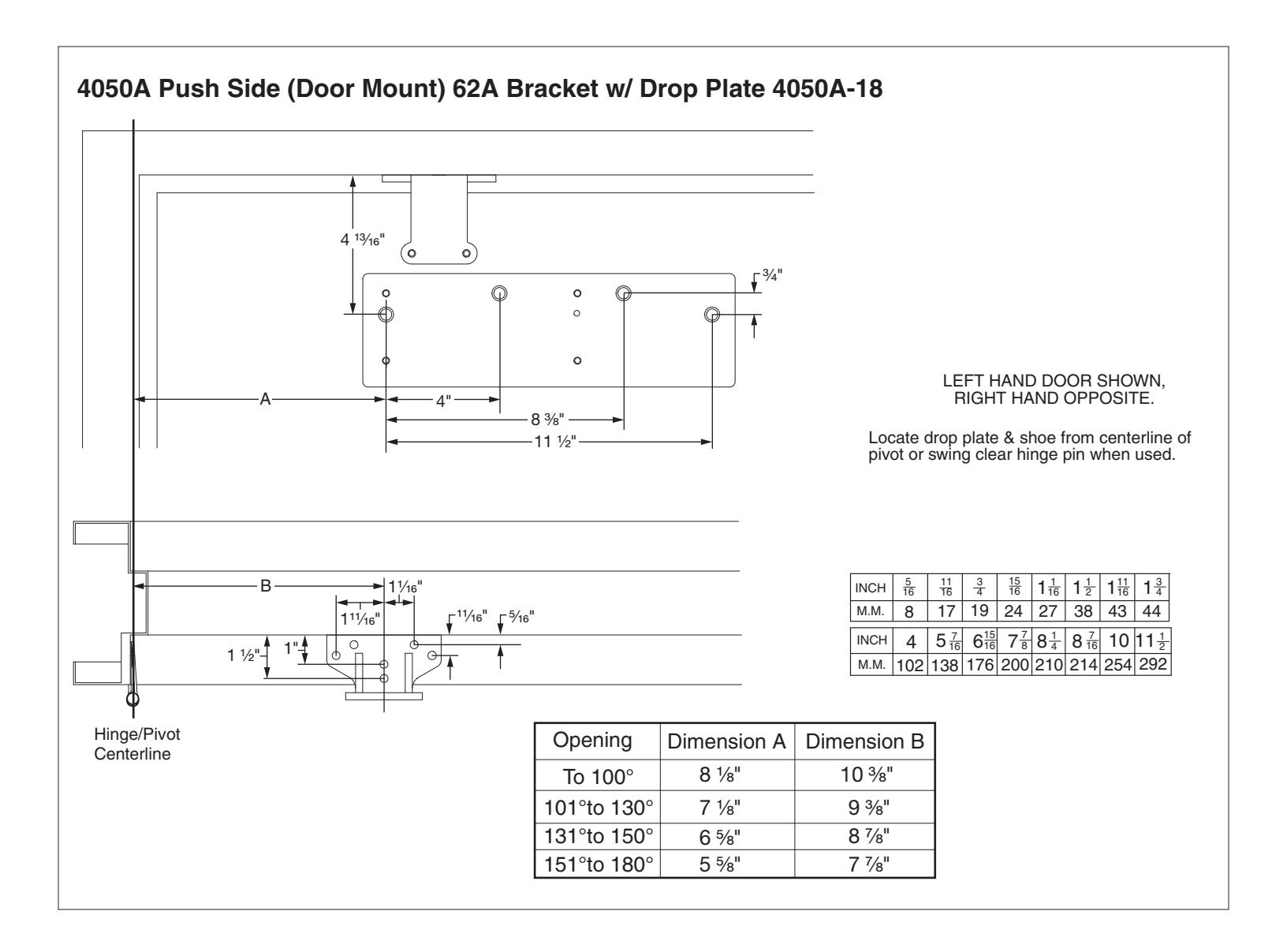

1c Top rail less than 7 1/2" requires a drop plate.
1d The auxiliary stop is shown for reference only. This template may be used to provide clearance for other types of hardware such as coordinators, sound seals, etc.
1e Reinforcing per ANSI/SDI-100 recommended for hollow metal doors and frames.
1f Closer size is 10" x 2 1/4" x 2 7/8".

Stop width 1 1/4" to 3 1/4" mount shoe in rabbet behind stop.
Stop width over 3 1/4" mount shoe to stop face no closer than 1 1/4" to door face.
Use the five mounting screws provided.
