LCN_1450_Track_Series_Drop_Plate_Installation_Instructions_111877

1450 Track Series

Drop Plate Installation Instructions

1450 PUSH SIDE (DOOR MOUNT) DROP PLATES

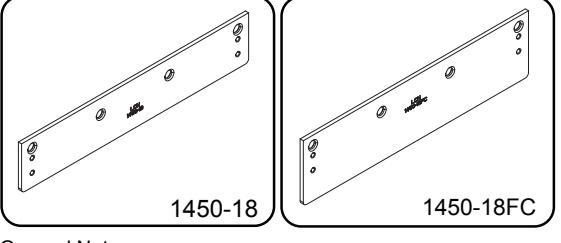

Push side arm mounted on: 1450-18 Drop Plate 1450-18FC Drop Plate

1. Minimum top rail width is 31/16" Left hand door shown, Right hand door opposite

ſ	INCH	7 16	1 2	1	$1\backslash frac\{1\}\{4\}$	1 1 2	1 15 / 16	$2\backslash frac\{3\}\{8\}$	$2\backslash frac\{3\}\{4\}$	4
	М.М.	11	13	25	32	38	49	60	70	102
	INCH	4 1/8	$5\backslash frac\{1\}\{2\}$	7	$7\backslash frac\{3\}\{4\}$	$7\backslash frac\{7\}\{8\}$	81/4	11 1	11 5 / 8	$12\backslash frac\{3\}\{4\}$
Γ	м.м.	105	140	178	197	200	210	286	295	324

General Notes:

• For 180° Opening On Hinge Face Mounts, Max Buttsize Is 5" X 5" Reinforcing Per ANSI/SDI-100 Recommended For Hollow Metal Doors and Frames.
