ST-2776
62A Shoe, 4040-18 Plate Installation Instructions
General Notes

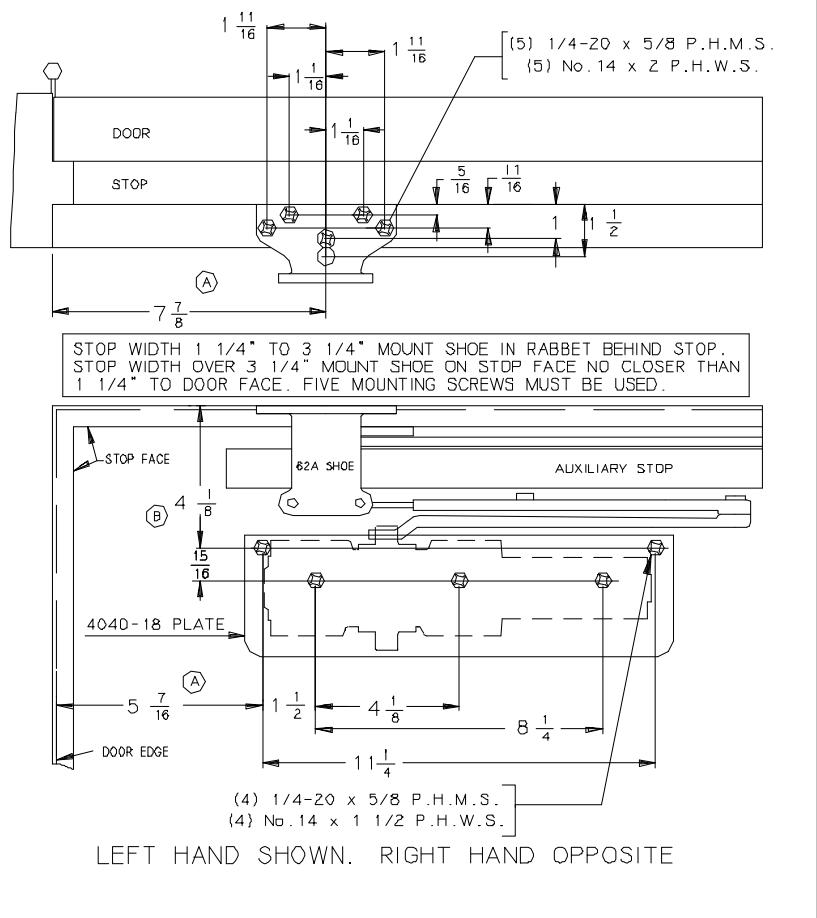

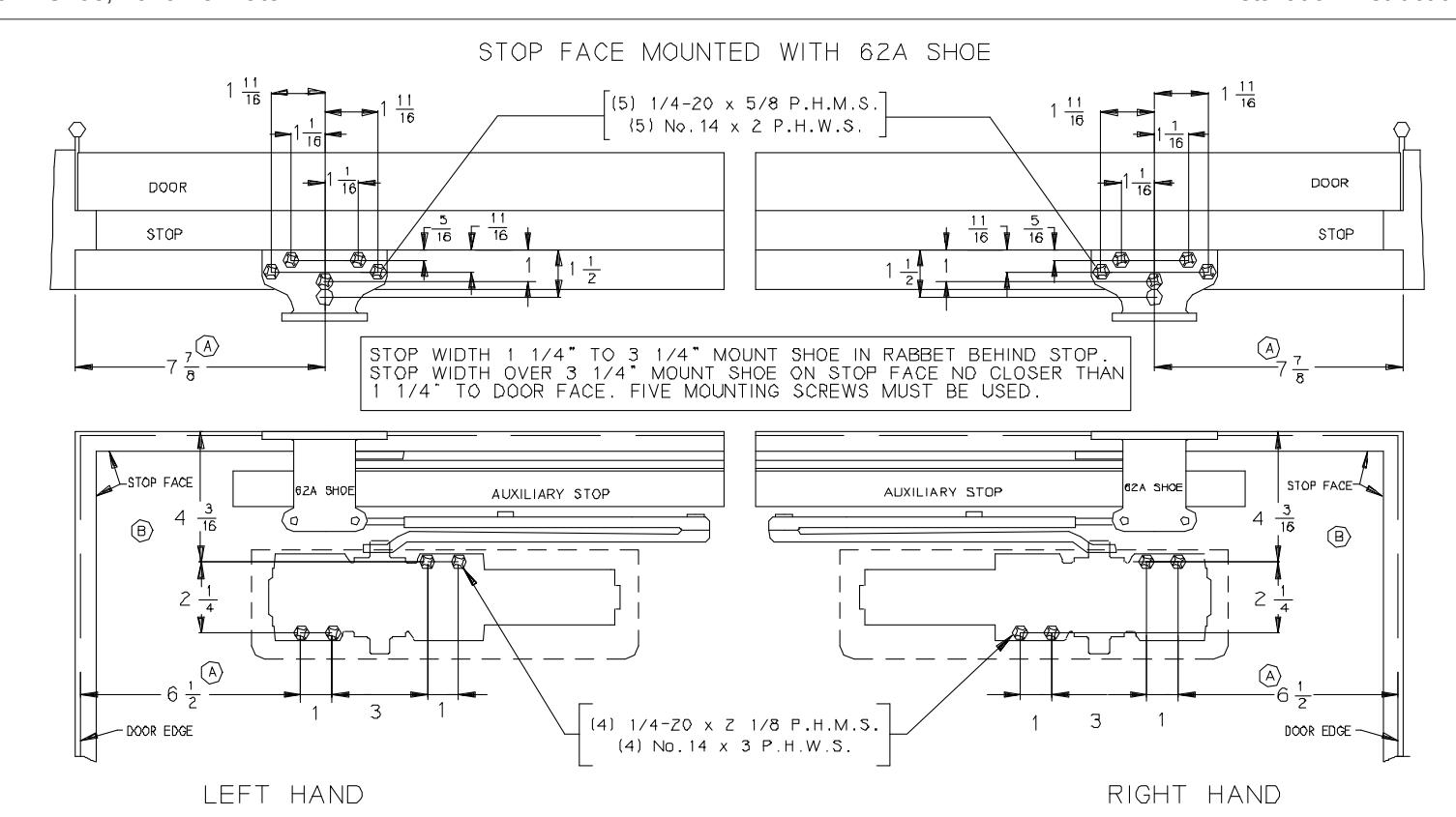

- A. Locate closer and shoe from center line of pivot or swing clear hinge when used.
- B. This dimension is always from the same surface as the shoe is mounted on.
- C. Top rail less than 7" requires a drop plate.
- D. The auxiliary stop is shown for reference only. This template may be used to provide clearance for other types of hardware such as coordinators, soundseals etc.
- E. Reinforcing per ANSI/SDI-100 recommended for hollow metal door and frame.
- F. Closer size: 12-1/4 x 3-1/2 x 2-5/32
- G. Backcheck selector valve must be turned all the way in for this installation. Refer to the instruction sheet packed with the closer.
| Additional Notes: | |
|---|---|
| 1. None | |
| Revision History | Revision Description: | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Α | В | С | D | Е | F | B > Revised artwork | ||||
| N/A | 043812 | |||||||||
| Material White Paper | Edited By | Approved By | EC Number | Release Date | ||||||
| R. Byun | M. Sasso | 043812 | 01-01-14 | |||||||

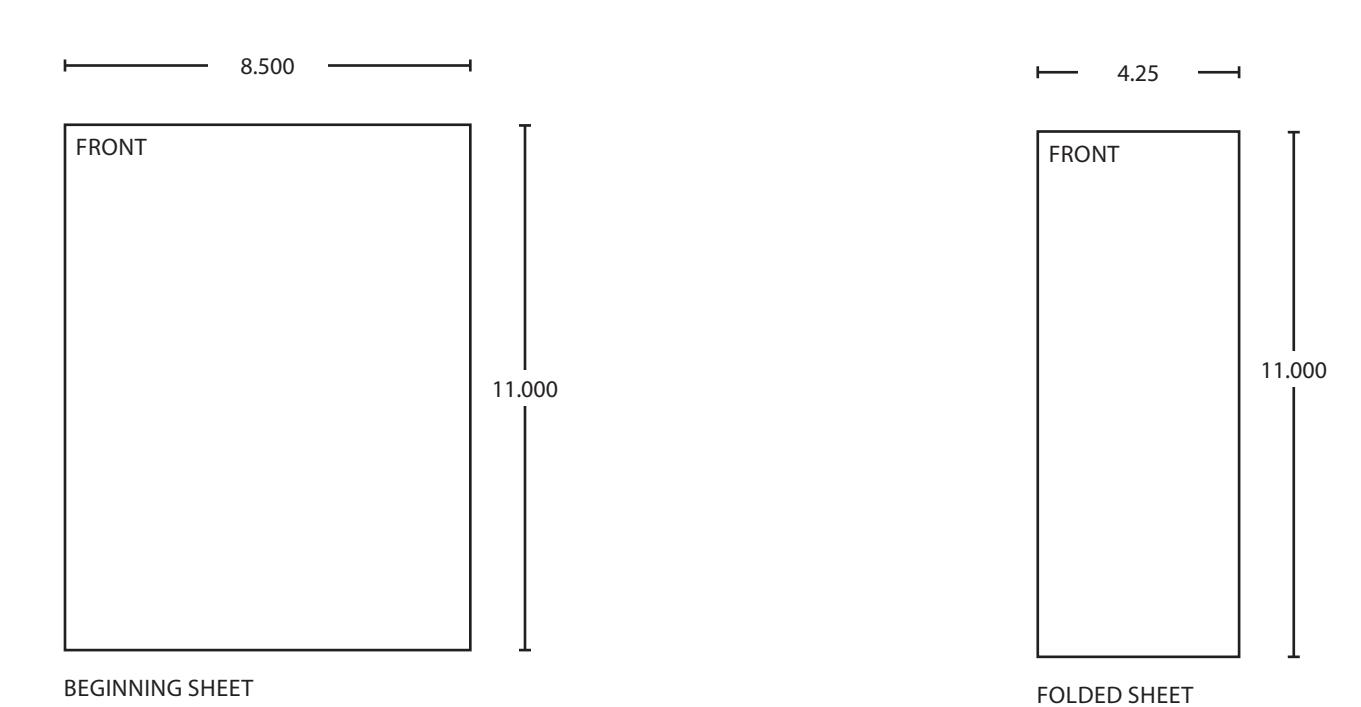

| Notes 1. printed one side 2. printed black 3. tolerance ± .13 4. printed in country may vary | Title 4040/4041 Stop Face with 62A Shoe Instruction Sheet | |||||||||
|
Creation Date
11-15-10 |
Number 28073 |
Revision
B |
||||||||
| o. urawi | 5. drawings not to scale |
Created By
N/A |
Activity
3899 Hancock Expwy Security, CO 80911 |
|||||||
| Software: InDesign CS6 | Allegion 2014 | |||||||||
