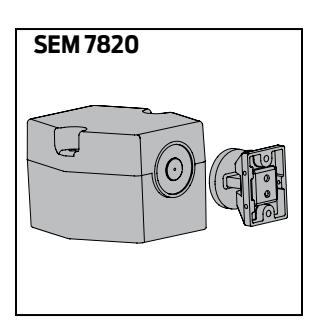

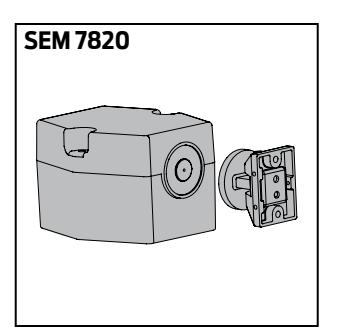

SEM 7820 MAGNET

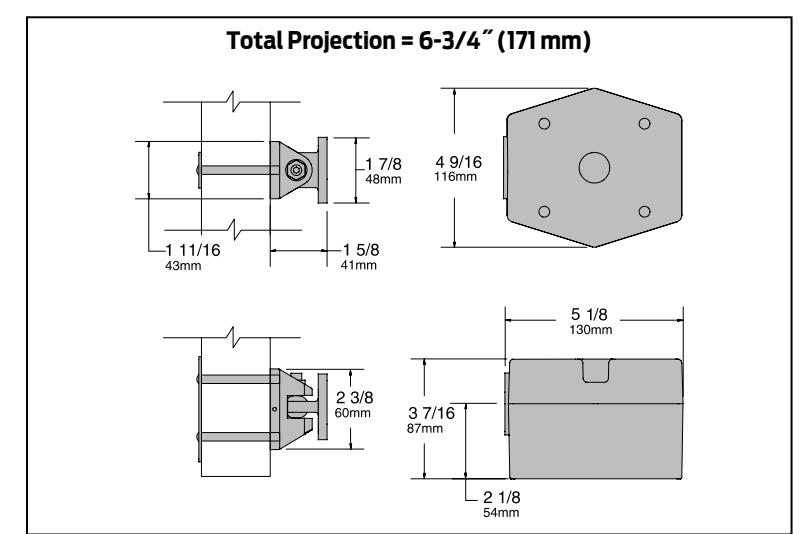

Die Cast, Floor mounted.

The Sentronic® SEM 7800 Series are heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the door. A choice of floor, recessed wall, or surface mounted wall magnets are available.

All SEM Series magnets are UL listed for smoke barrier or labeled fire doors. Tested and certified under ANSI Standard A156.15.

• ⁿ Tri-voltage design with 35 lbs. of holding force.
• ⁿ Now available armature extensions from LCN (see page 11).
• ⁿ SEM 7820 magnets are shipped with die cast housing, cover, armature(s) and WMS screw pack.
• ⁿ Available in Aluminum and Dark Bronze finishes only.
• ⁿ UL listed for smoke barrier or labeled fire doors.

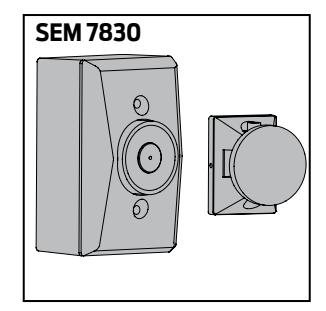

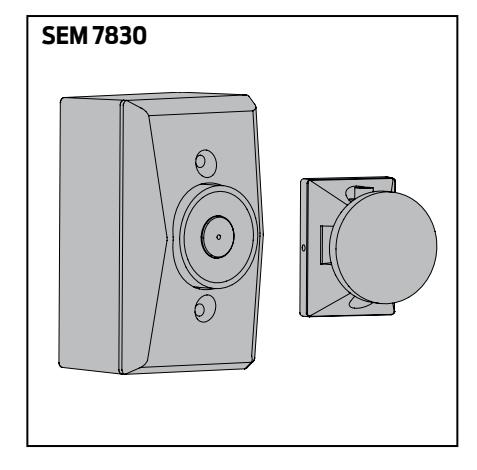

SEM 7830 MAGNET

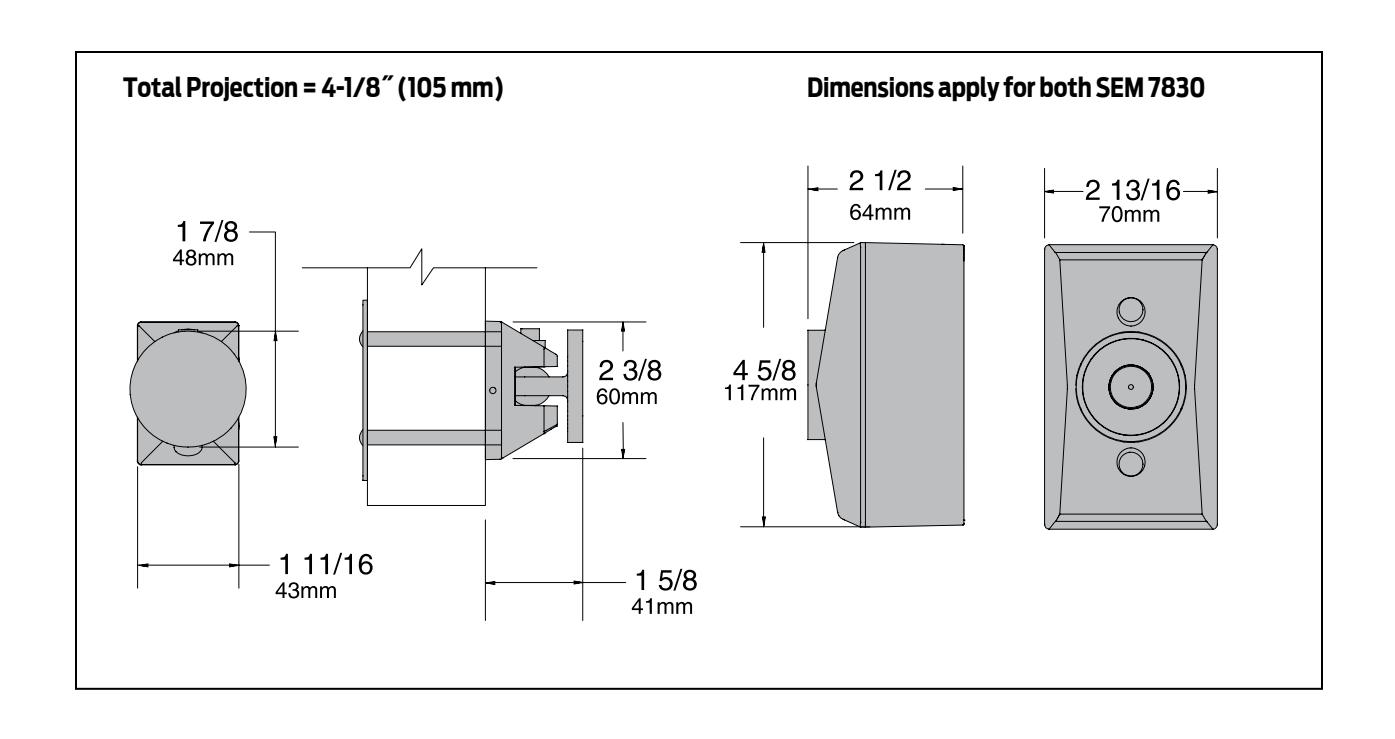

Die cast housing, Surface wall mounted.

• ⁿ Tri-voltage design with 35 lbs. of holding force.
• ⁿ Now available armature extensions from LCN (see page 11).
• ⁿ SEM 7830 magnets are shipped with die cast housing, cover, armature and WMS screw pack.
• ⁿ SEM 7830 available in Aluminum and Dark Bronze finishes only.
• ⁿ Suitable for use in pocket door installations.
• ⁿ UL listed for smoke barrier or labeled fire doors.

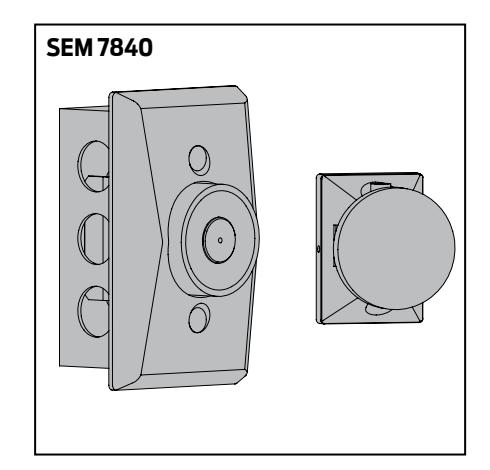

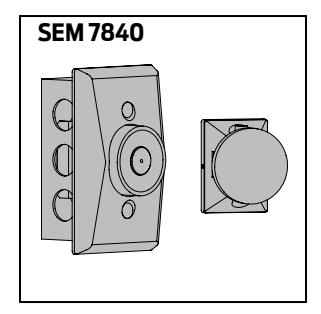

SEM 7840 MAGNET

Die cast housing, low profile recessed wall mount.

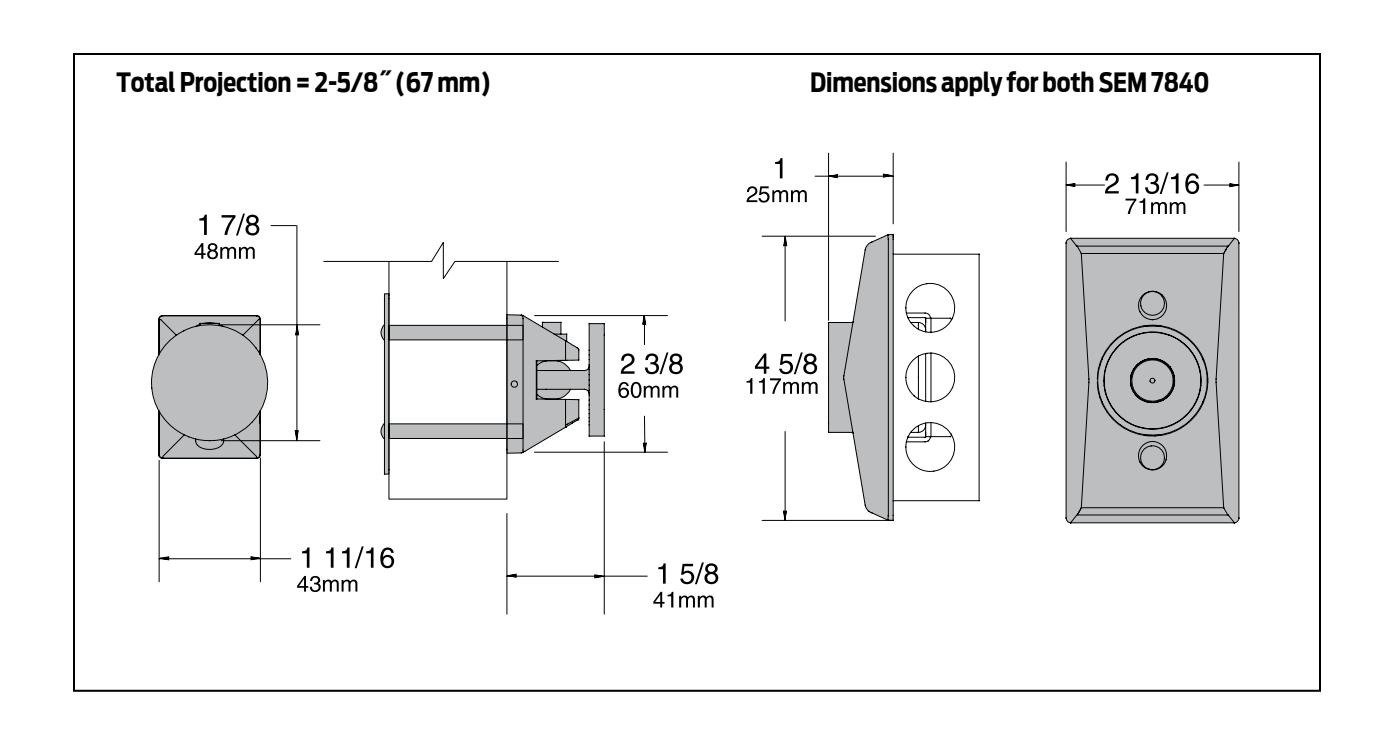

2˝ (51 mm) x 4˝ (102 mm) x 1-1/2˝ (38 mm). NOTE: Outlet box not included.

SEM SERIES

• ⁿ Tri-voltage design with 35 lbs. of holding force.
• ⁿ Now available armature extensions from LCN (see page 11).
• ⁿ SEM 7840 magnets are shipped with die cast housing, cover, armature and WMS screw pack.
• ⁿ SEM 7840 available in Aluminum and Dark Bronze finishes only.
• ⁿ Suitable for use in pocket door installations.
• n UL listed for smoke barrier or labeled fire doors.

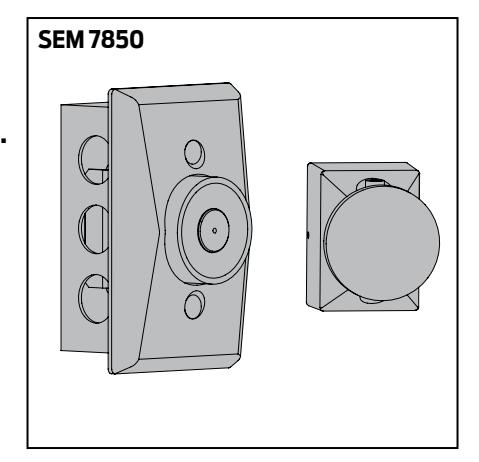

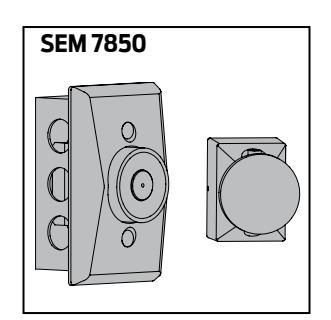

SEM 7850 MAGNET

Die cast housing, standard profile recessed wall mount.

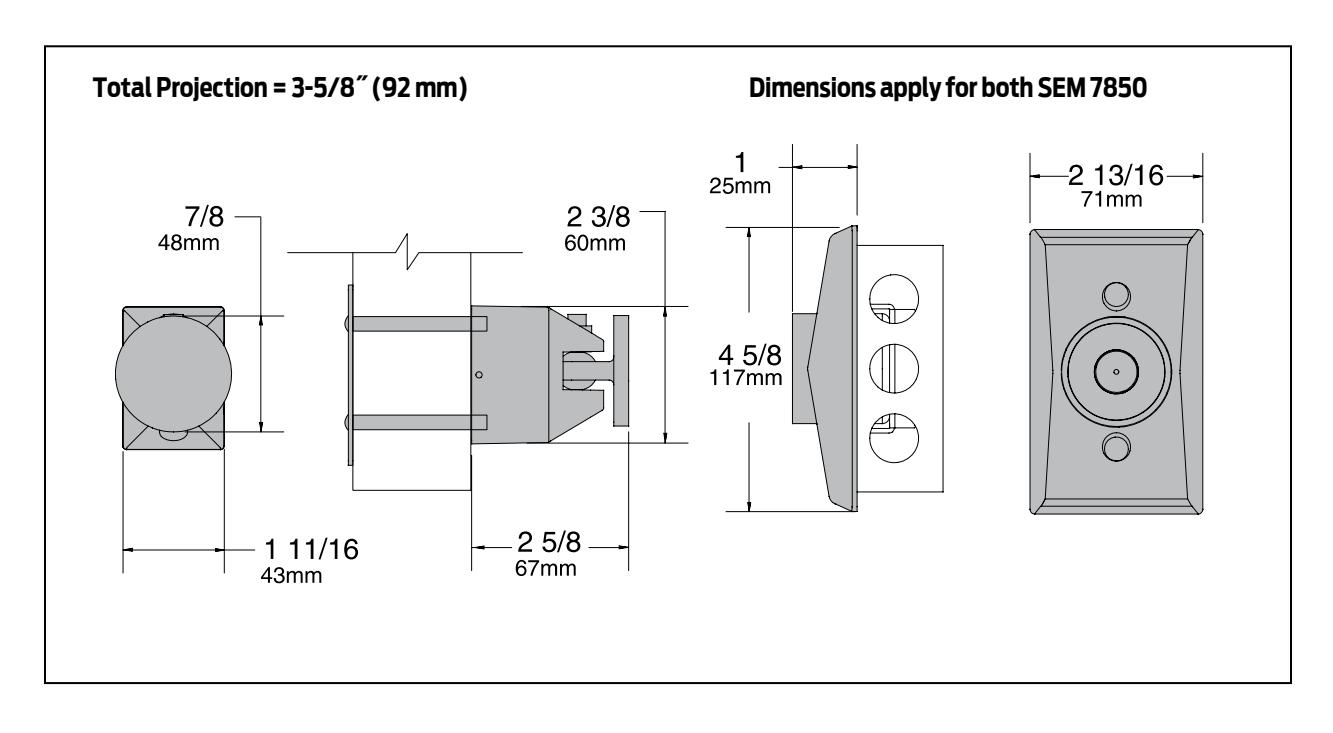

2˝ (51 mm) x 4˝ (102 mm) x 1-1/2˝ (38 mm) NOTE: Outlet box not included.

• ⁿ Tri-voltage design with 35 lbs. of holding force.
• ⁿ Now available armature extensions from LCN (see page 11).
• ⁿ SEM 7850 available in standard powder coat finishes.
• ⁿ SEM 7850 available in Aluminum and Dark Bronze finishes only.
• ⁿ Suitable for use in pocket door installations.
• ⁿ UL listed for smoke barrier or labeled fire doors.

ELECTRICAL DATA

Holding Force: 35 lbs. @ Nominal Input Voltage. Maximum Current Draw: .020A @ 24VAC/DC, 120VAC

.030A @ 12VDC

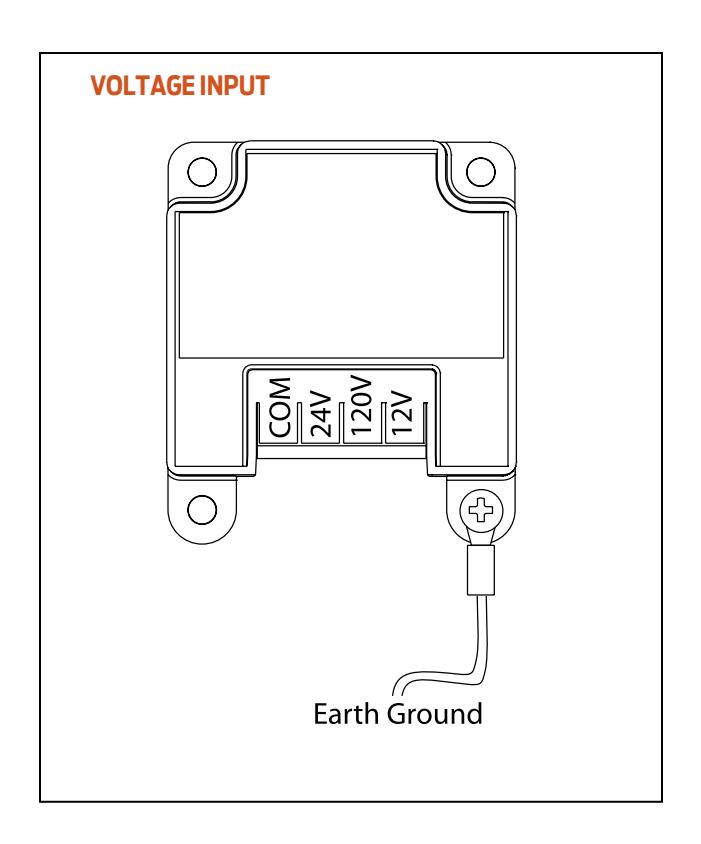

ELECTRICAL SCHEMATIC

MAGNETS

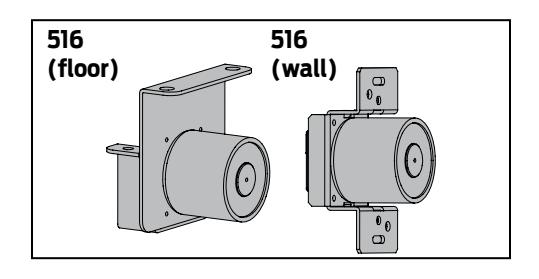

FLOOR MAGNET, SEM7820-516

Standard magnet coil.

WALL MAGNET, SEM7830-516, SEM7840-516, SEM7850-516, SEM1960-516, SEM1970-516, SEM1980-516 Standard magnet coil.

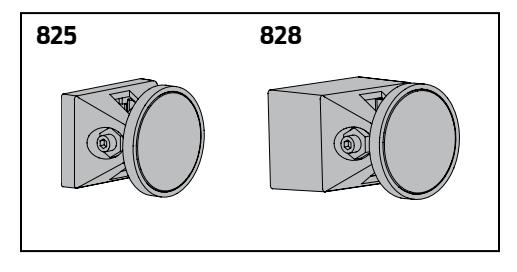

ARMATURES

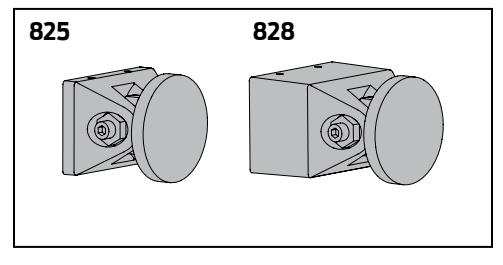

DOOR ARMATURE, SEM7820-825, SEM7830-825, SEM7840- 825

Standard, die cast low profile armature.

DOOR ARMATURE, SEM7850-828

Standard, die cast armature.

DOOR ARMATURE, SEM1960-825, SEM1970-825

Standard, plastic low profile armature.

DOOR ARMATURE, SEM1980-828

Standard, plastic armature.

STANDARD COVER, SEM7830-72, SEM7840-72, SEM7850-72 Standard, die cast cover.

STANDARD COVER, SEM1960-72, SEM1970-72, SEM1980-72 Standard, plastic cover.

BOX

WALL BOX, SEM7830-268

Standard, die cast surface wall mount box.

WALL BOX, SEM1960-268

Standard, plastic surface wall mount box.

EXTENSIONS

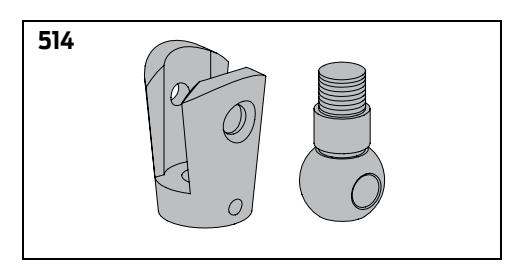

COUPLER ASSEMBLY KIT, SEM7810-514

Coupler assembly is required for each door needing extension(s). Kit includes coupler link and ball pivot (alone serves as a 1-1/2˝ extension).

Extension, SEM7810-E050

Standard metal 1/2˝ extension.

Extension, SEM7810-E075

Standard metal 3/4˝ extension.

Extension, SEM7810-E100

Standard metal 1˝ extension.

Extension, SEM7810-E200

Standard metal 2˝ extension.

Extension, SEM7810-E400

Standard metal 4˝ extension.

EXTENSION KIT, SEM7810-517

Extension kit includes: 10...........7810SEM-E050

10............7810SEM-E075 10............7810SEM-E100 5...........7810SEM-E200 20...............7810SEM-514

NOTE: Using just the Coupler Assembly Kit (SEM7810-514) will create a 1-1/2˝ link. Extension Links are available in different lengths and can be combined together to achieve the desired length. Max. recommended length = 12˝

SEM 1960

LCN ®

HOW-TO-ORDER SEM 7800 SERIES MAGNETS

1. SELECT MAGNET SERIES

□SEM7820

□SEM7830

□SEM7840

□SEM7850

2. SPECIFY FINISH

☐ Standard Powder Coat _____ Aluminum, Dark Bronze.

HOW-TO-ORDER SEM 1900 SERIES MAGNETS

1. SELECT MAGNET SERIES

□SEM1960

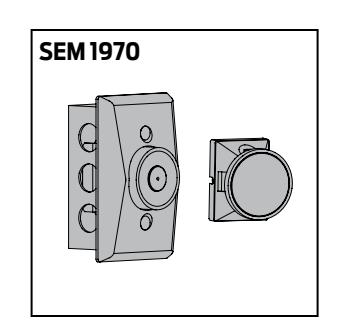

□ SEM1970

□SEM1980

2. SPECIFY FINISH

☐ Standard Finish _______Aluminum or Dark Bronze.

HOW-TO-ORDER SEM 7810 EXTENSIONS

1. SELECT EXTENSIONS

JEEEC I EXTENSIONS
□ SEM7810-514	(qty.)
□SEM7810-E050	(qty.)
□SEM7810-E075	(qty.)
□SEM7810-E100	(qty.)
□SEM7810-E200	(qty.)
□SEM7810-E400	(qty.)
□ SEM7810-517	(qty.)
