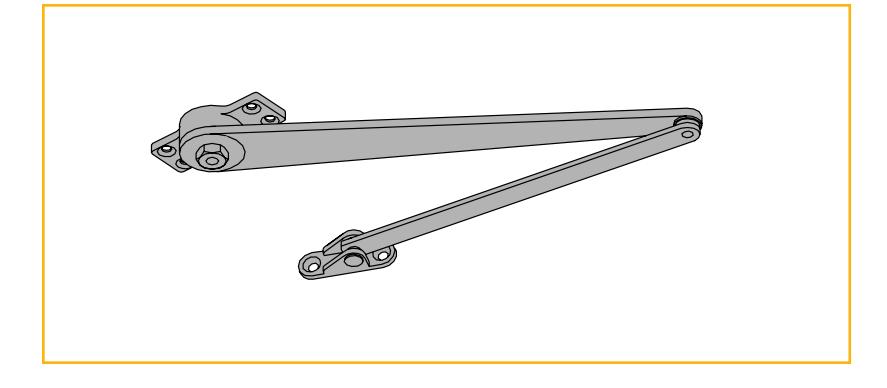

PAH 60

The PAH 60 is recommended for use on the inactive leaf of a pair of doors where the active leaf has a door closer installed.

MAXIMUM OPENING

Hold-open points up to 180°.

• ⁿ Standard holder shipped with wood and machine screw pack.
• ⁿ Handed for right or left swinging doors.
• ⁿ Standard or optional custom powder coat finish.
• ⁿ Hold-open point adjustable at the soffit shoe.
• ⁿ Optional plated finish on holder and fasteners.
• ⁿ Optional SRI primer for installations in corrosive conditions.

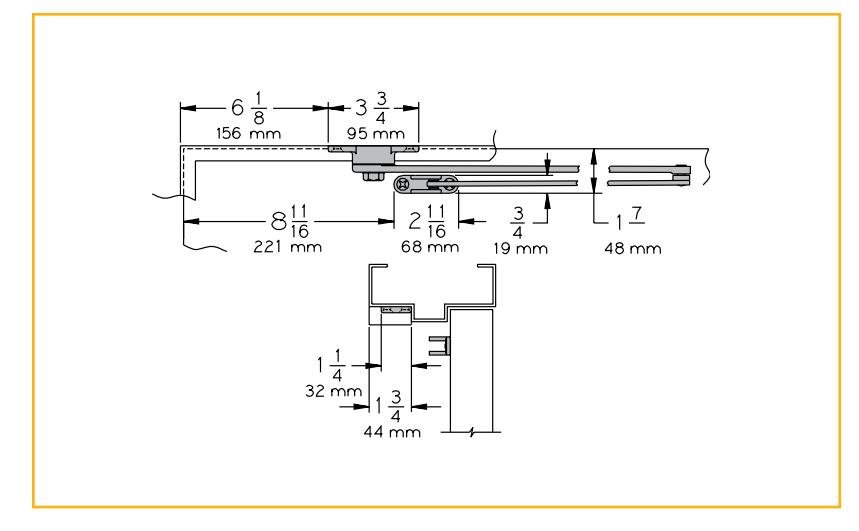

n Butt Hinges should not exceed 5˝ (127 mm) in width.

• ⁿ Auxiliary Stop recommended at hold-open point.
• ⁿ Top Rail minimum 2˝ (51 mm).
• ⁿ Rabbet Depth minimum 1-1/4˝ (32 mm).

HOW-TO-ORDER
PAH 60 HOLDER

1. SPECIFY HAND

RH LH

2. SPECIFY FINISH

Standard Powder Coat __________ Aluminum, Dark Bronze, Tan, Statuary, Light Bronze, Black, Brass.

OPTIONAL ARM FINISH

• Custom Powder Coat (RAL)__________ Plated Finish, US__________
• SRI Primer
