Cush Shoe Support
Instructions for installing after Cush - N - Stop is installed
Installation Instructions

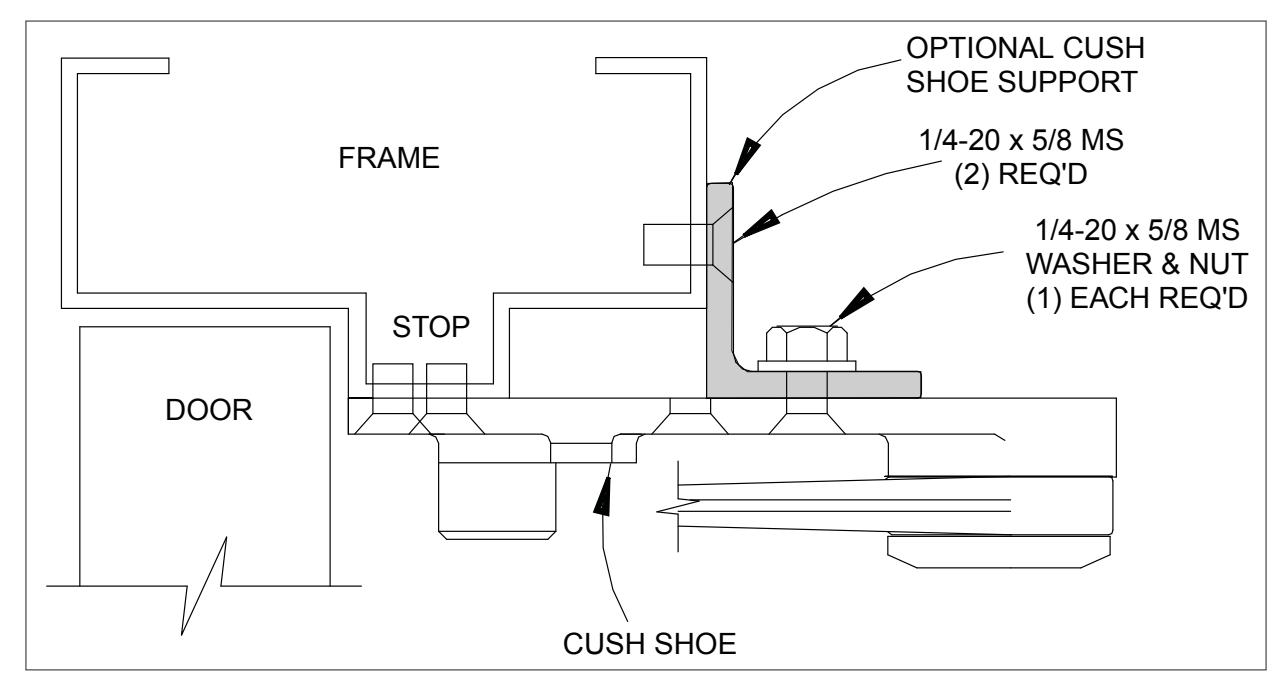

If frame is not wide enough to receive fifth screw, install Cush Shoe Support (available from Dealer) as shown below.
- 1a Set Cush Shoe Support on top of Cush Shoe and hold against frame.
- 1b Assemble screw, washer, and nut as shown and tighten securely.
- 1c Using Shoe Support as Template drill & tap two 1/4-20 holes in frame.
- 1d Insert screw & tighten securely.

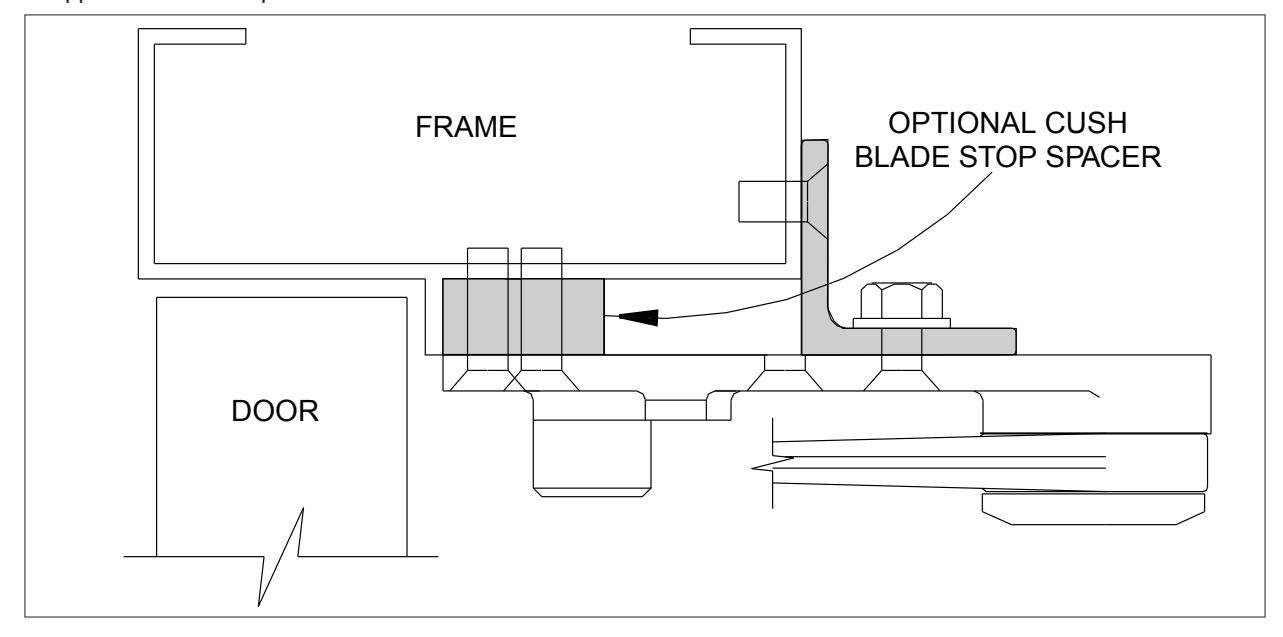

Should frames have 1/2" Blade Stop it is necessary to use 1/2" Blade stop Spacer (available from Dealer). Use both Blade Stop Spacer and Shoe Support wherever required.
