Label Kit 740031-00

For use with all low energy operators

Signage Instructions

ANSI A156.19-1997 requires these Applications for all low energy doors. Failure to do so leaves the installer LIABLE for any accident that might occur. THESE SIGNS MUST BE USED!

KIT CONTENTS:

PART #	KIT QTY.	DESCRIPTION
27274	2	6 ½" YELLOW CIRCLE "CAUTION AUTOMATIC DOOR"	(2 SIDED)
740071-00	2	6 ½" x 1 ¾" BLUE RECTANGLE "ACTIVATE SWITCH TO OPERATE"	(2 SIDED)
740072-00	1	5" x 1 ¾" BLUE RECTANGLE "PUSH TO OPERATE"	(1 SIDED)
740073-00	1	5" x 1 ¾" BLUE RECTANGLE "PULL TO OPERATE"	(1 SIDED)

27274 740071-00 740072-00 740073-00

WHEN DOOR IS ACTIVATED BY SEPARATE WALL SWITCH, USE THE FOLLOWING:

CLEAR GLASS DOOR			SOLID OPAQUE DOOR
QTY	LABEL		QTY LABEL
1	27274		2	27274
1	740071-00		2	740071-00

WHEN DOOR IS ACTIVATED BY DOOR MOTION, USE THE FOLLOWING:

CLEAR GLASS DOOR			SOLID OPAQUE DOOR
QTY	LABEL		QTY LABEL
1	27274		2	27274
1	740072-00		1	740072-00
1	740073-00		1	740073-00

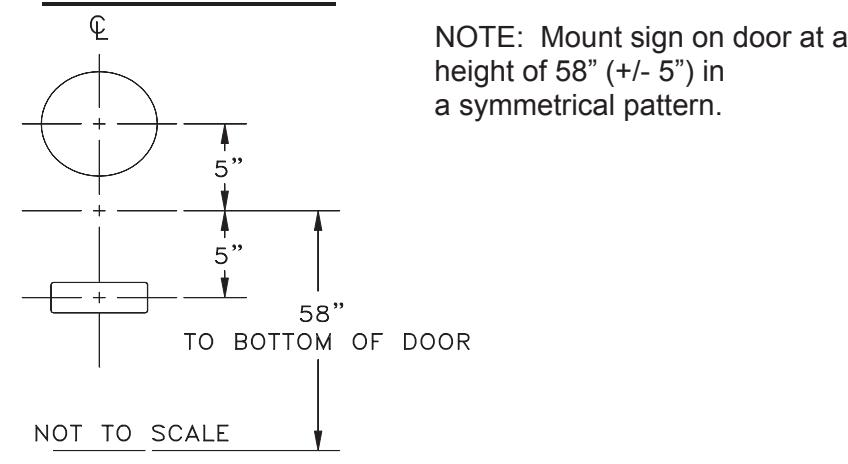

LABEL LOCATION:

Customer Service

© Allegion 2014 Printed in U.S.A. 740068 Rev. 02/14-d

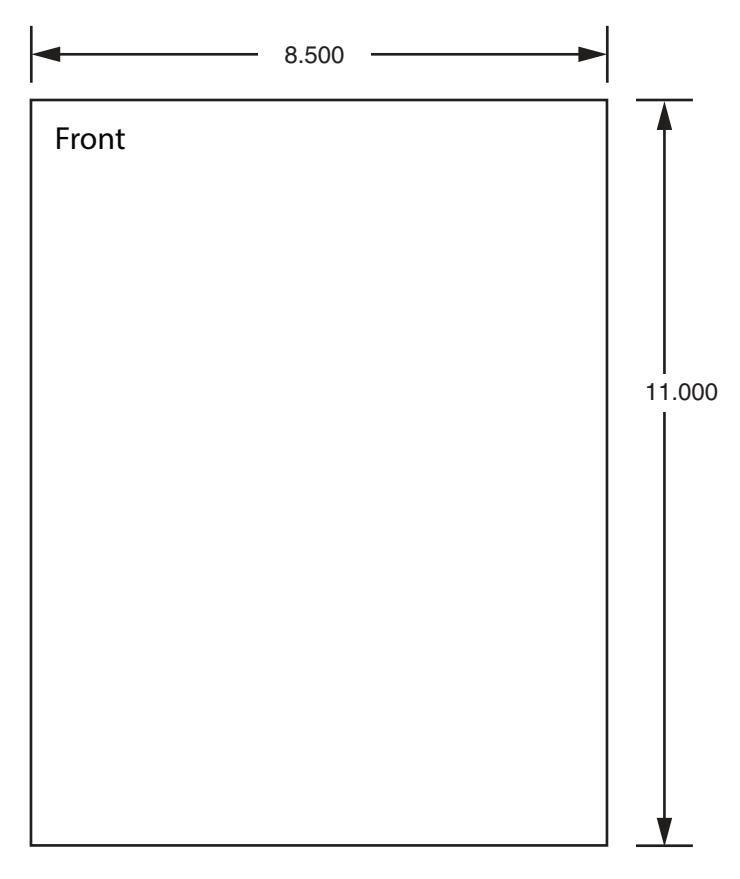

Beginning and Final Sheet
