LCN 524 Series Installation Instructions 107126
Open the original PDF document
View PDF

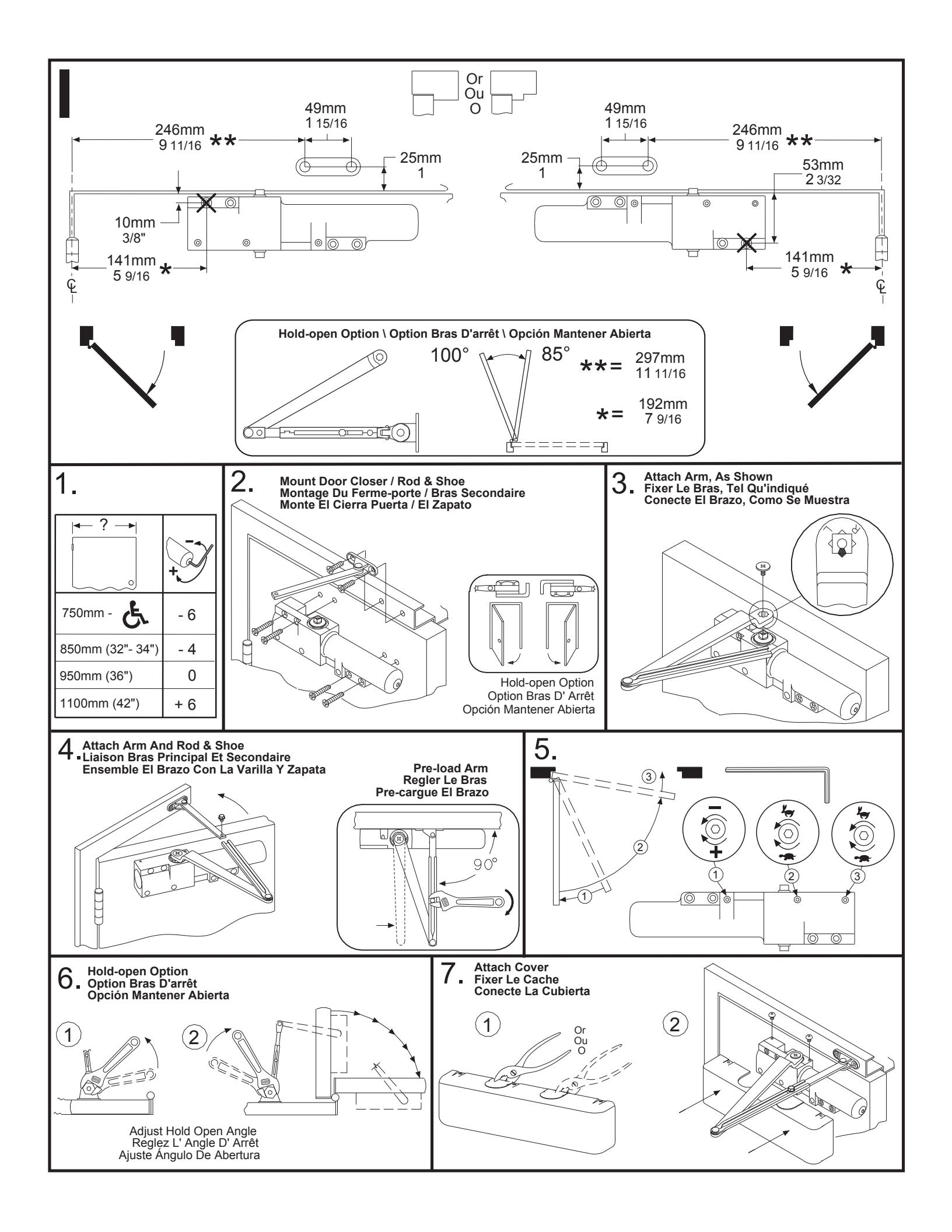

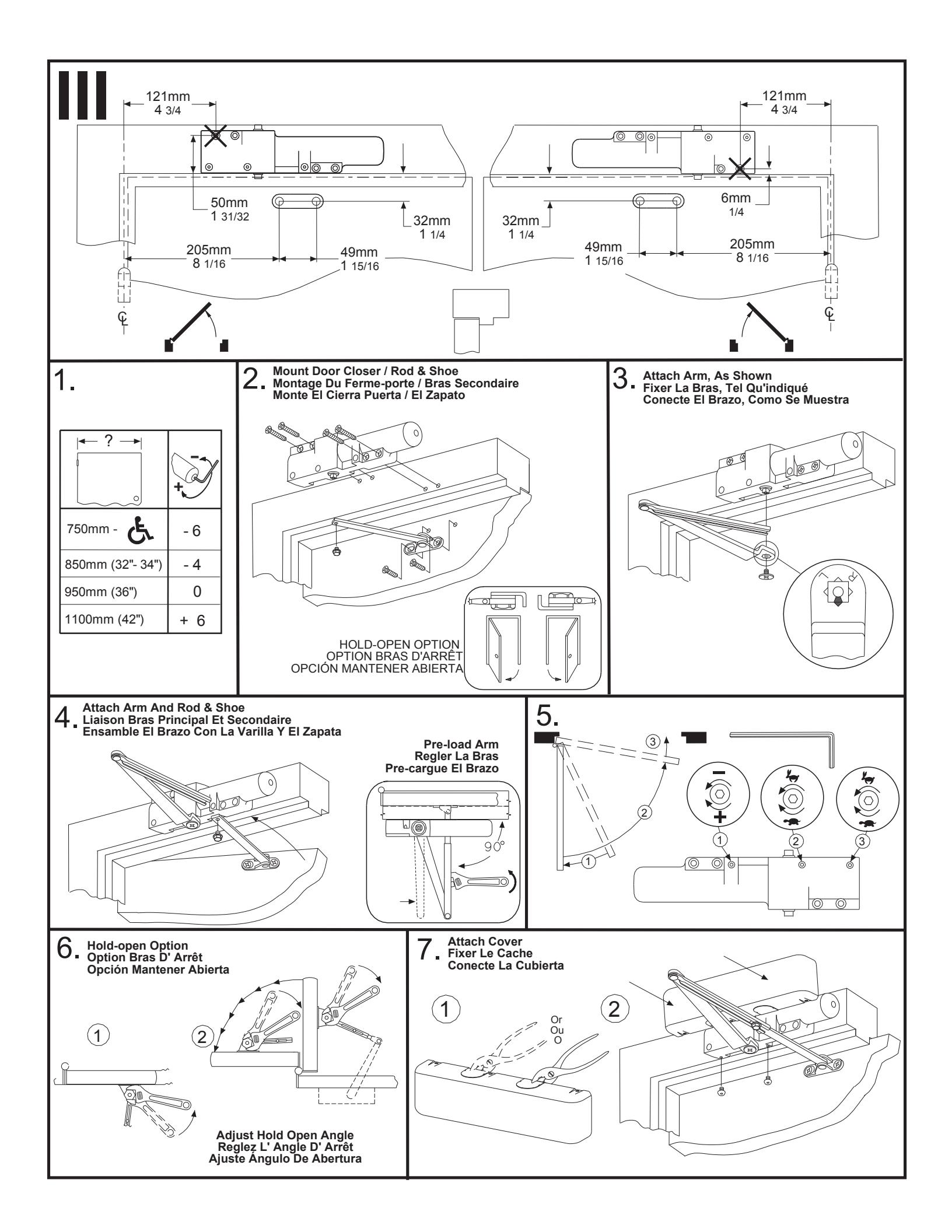

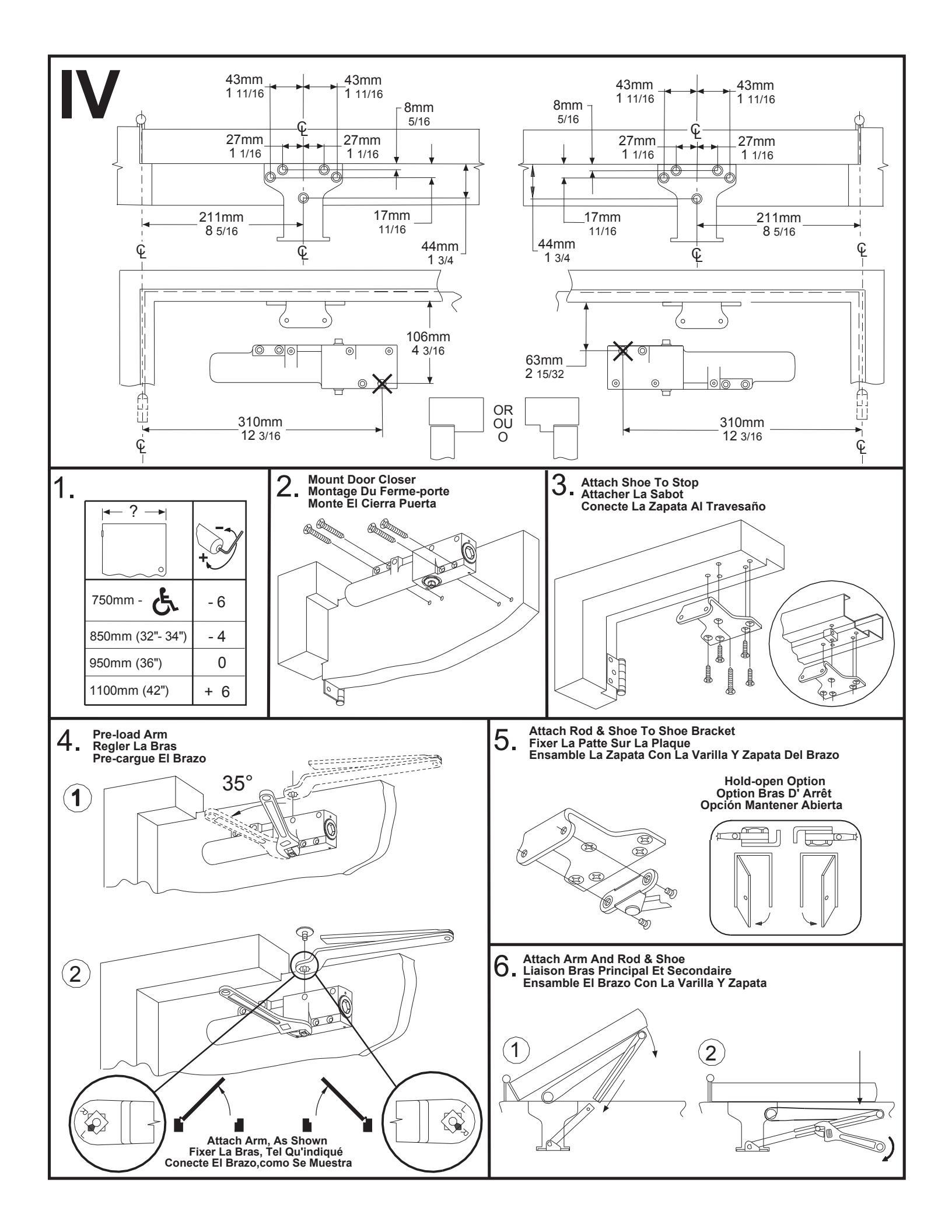

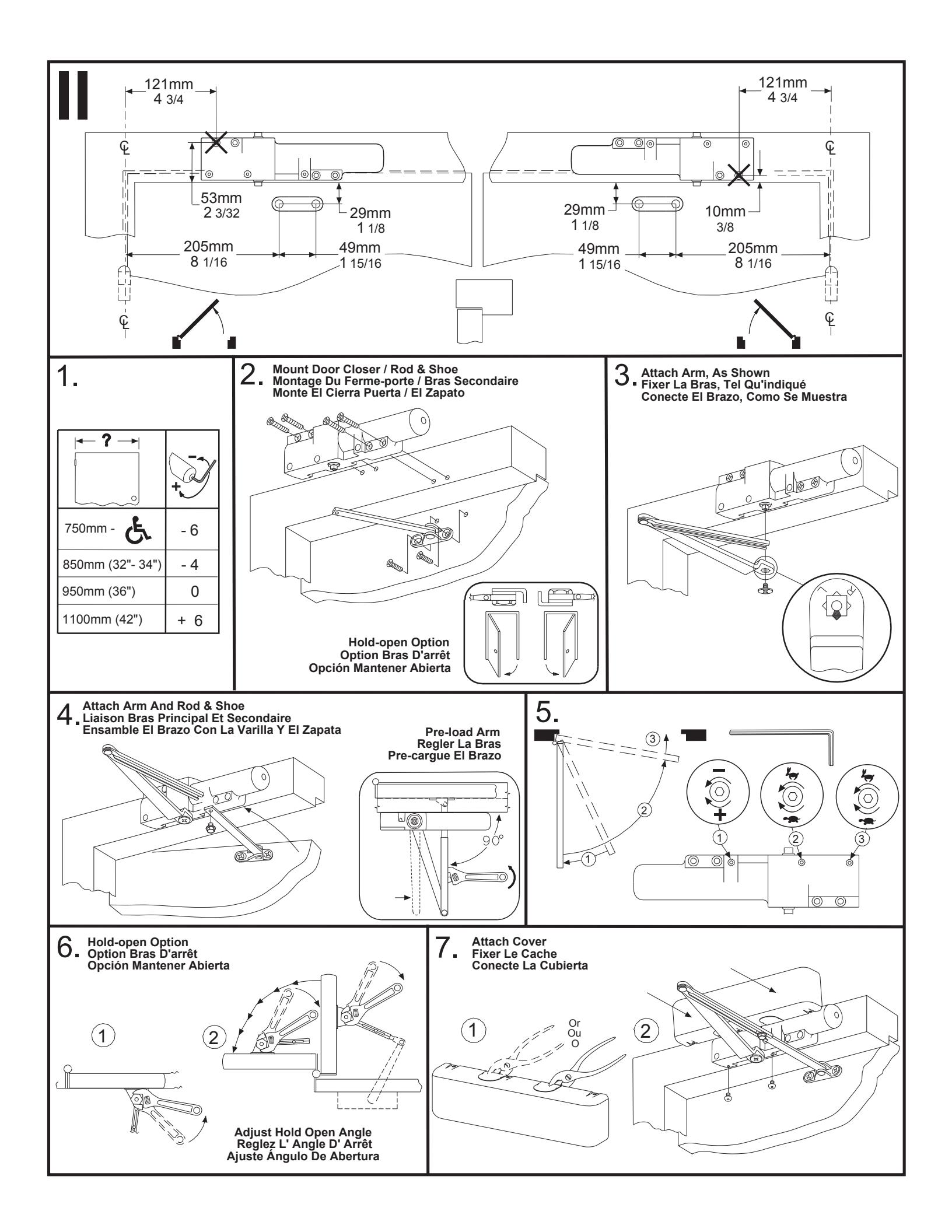

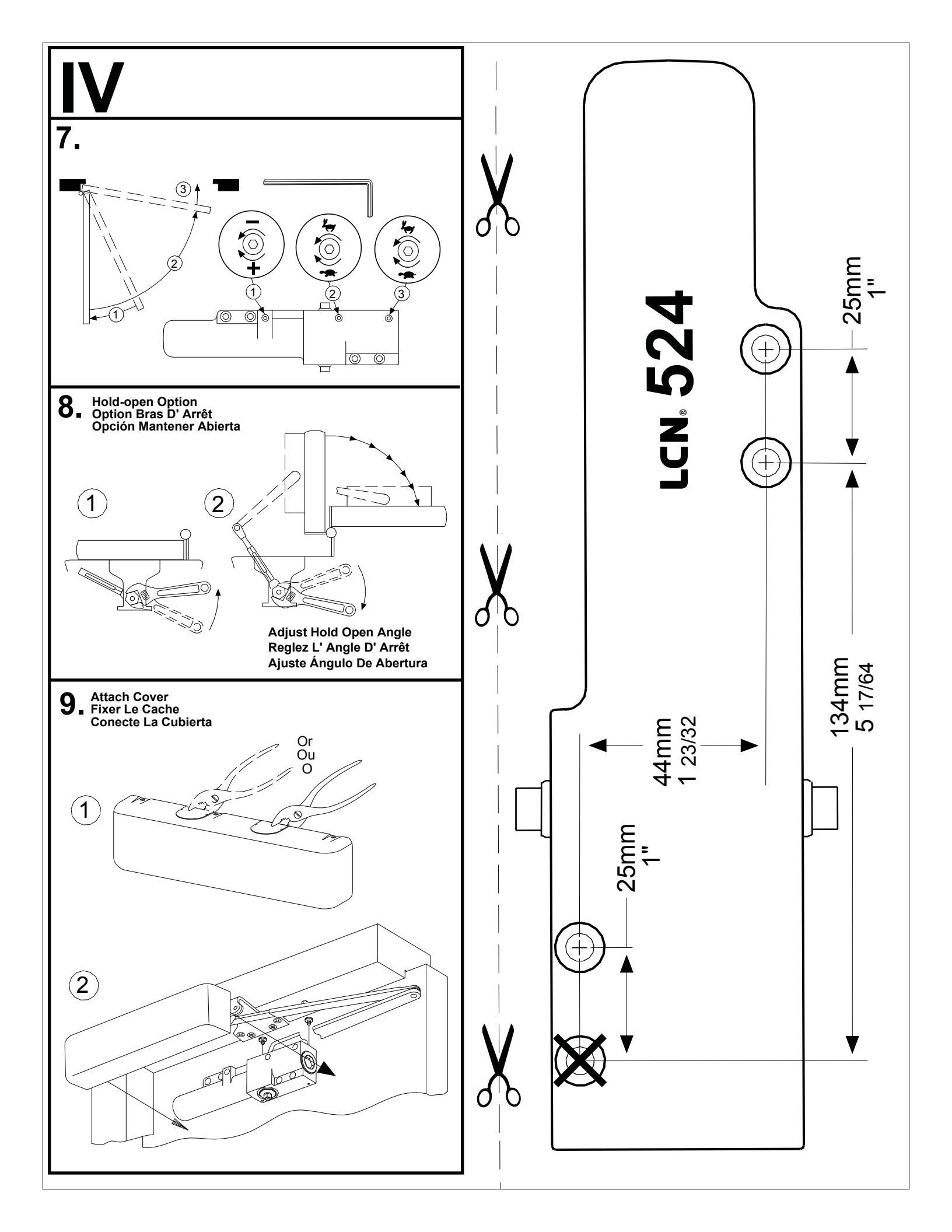

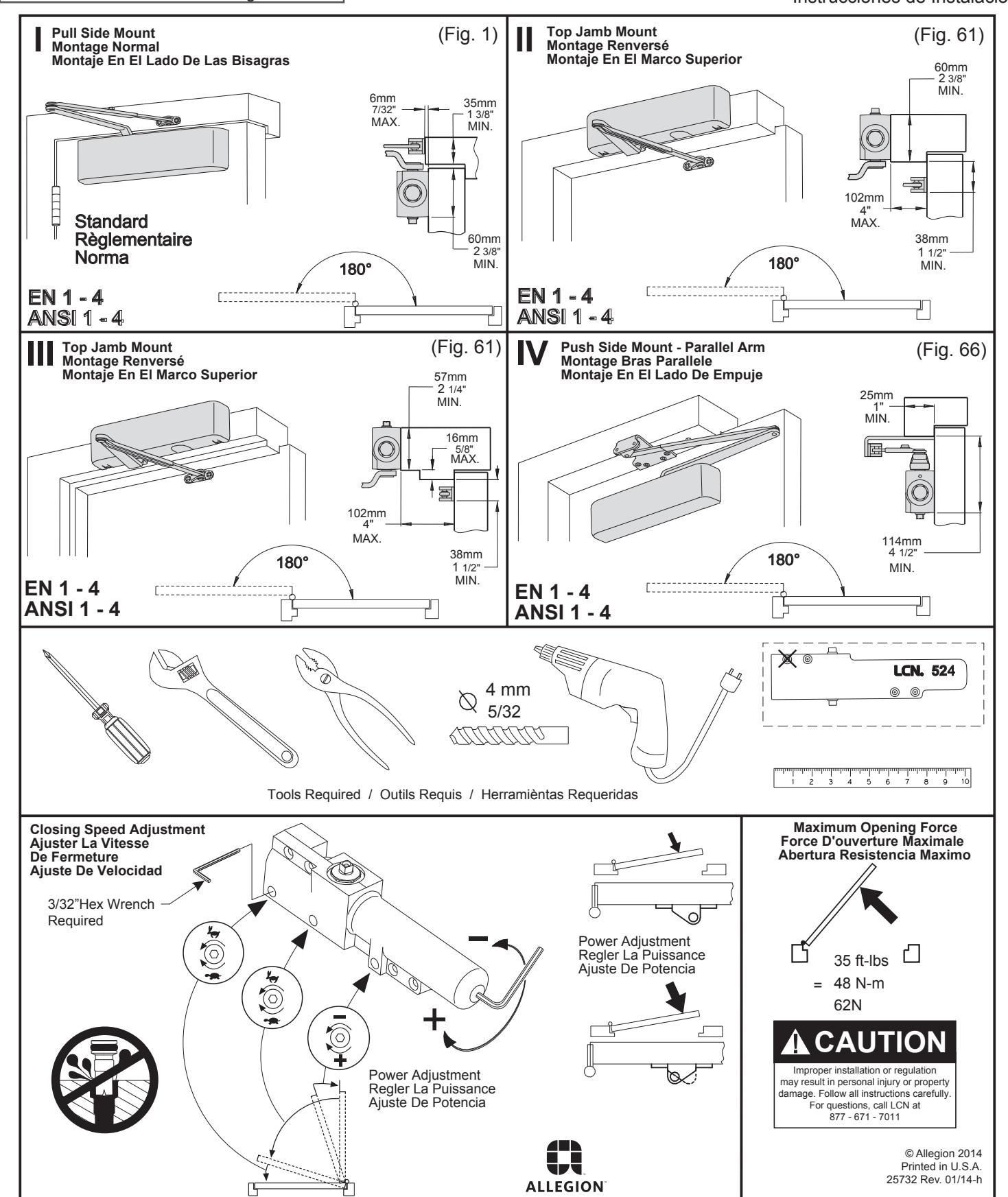

524 Series
LCN ®
25732
Customer Service
1-877-671-7011 www.allegion.com/us
Installation Instructions Instructions d'installation Instrucciones de Instalación
EC Number
Release Date 01-01-14
Revision
Η
© Allegion 2014
| Additional Notes: | Revision | n History | Revision Description: | ||||||
| 1. None | С | D | E | F | G | Н | H > Revised artwork | ||
| N/A | N/A | N/A | N/A | N/A | 043812 | ||||
| Material | Edited By | Approved By | EC Numb | ||||||
| White | Paper | D. Myers | M. Sasso | 043812 | |||||

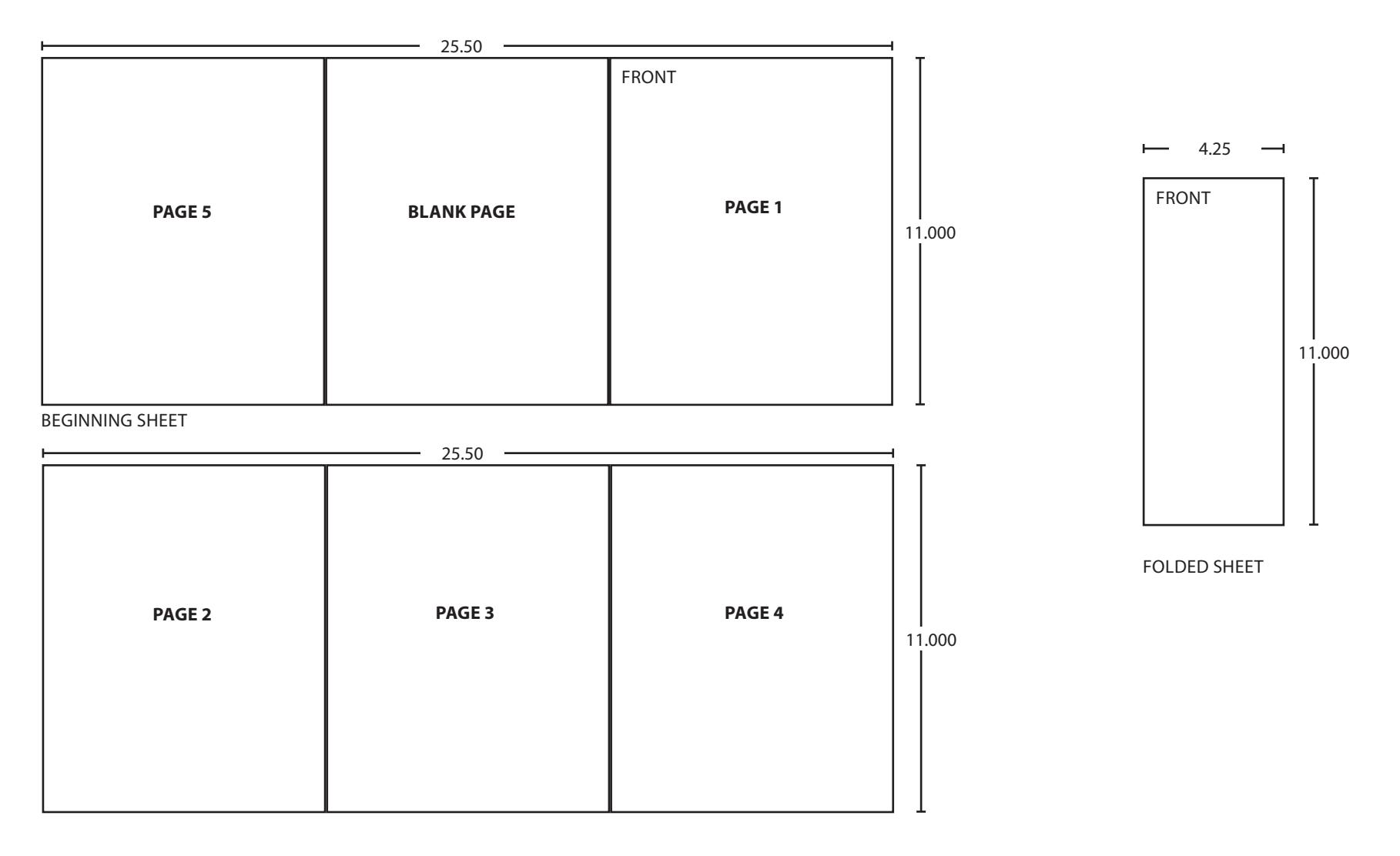

| Notes 1. printed two sides 2. printed black | Title 524 Series Instruction Sheet | ||||||||
|
Creation Date
04-27-10 |
Number 25732 | |||||||
| 3. drawii | 3. drawings not to scale |
Created By
N/A |
Activity
3899 Hancock Expwy |
||||||
| Software: InDesign CS6 | Security, CO 80911 | ||||||||
