4050 Series
Drop Plate Installation Instructions

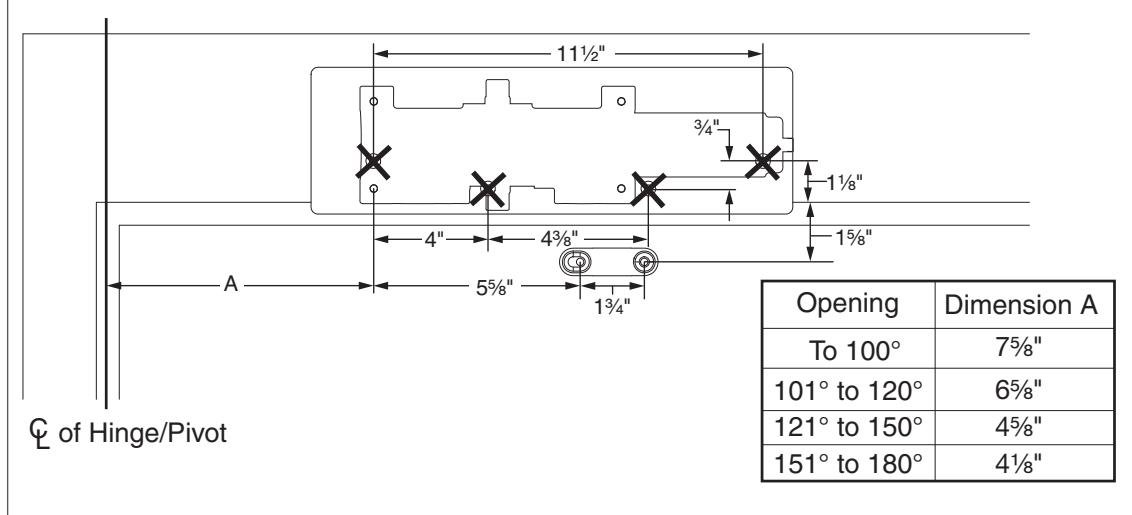

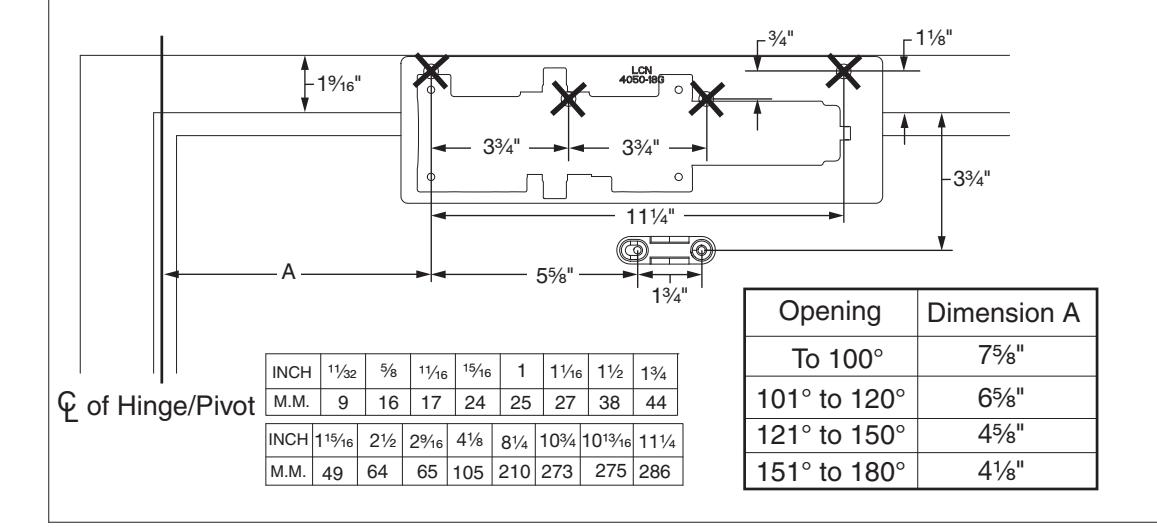

4050 PULL SIDE (DOOR MOUNT) DROP PLATE
PULL SIDE MOUNT ON: 4050-18 DROP PLATE
Left Hand door shown, Right Hand opposite. Locate drop plate & shoe from hinge/pivot centerline.

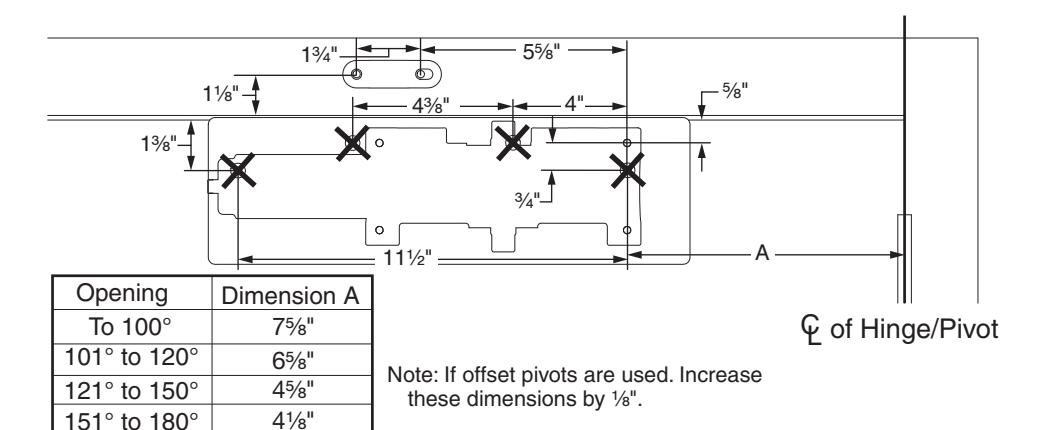

4050 PUSH SIDE (TOP JAMB) DROP PLATE
PUSH SIDE MOUNT ON: 4050-18 DROP PLATE
Left Hand door shown, Right Hand opposite. Locate drop plate & shoe
from hinge/pivot centerline.
Maximum reveal of 4%". For reveals 4%" - 8%"; specify long rod.

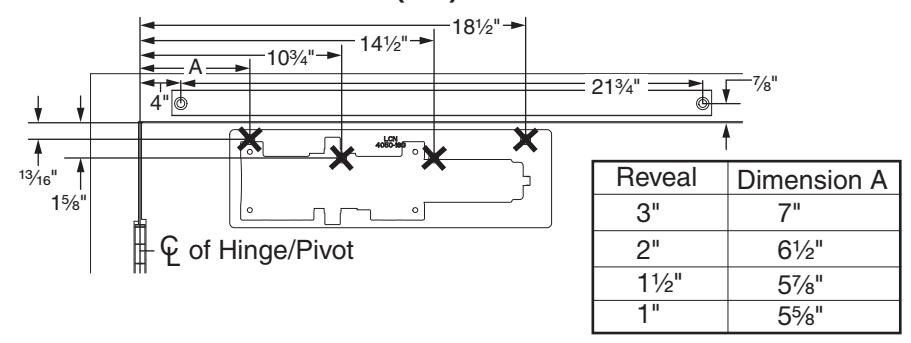

4050 PUSH SIDE (TOP JAMB) DROP PLATE
PUSH SIDE MOUNT ON: 4050-18G DROP PLATE
Left hand door shown, Right hand opposite.
Locate drop plate & shoe from centerline of pivot or swing clear hinge pin when used.
Maximum reveal of 41/8". For reveals 41/8" - 8 3/4"; specify long rod.
4050-18PA DROP PLATE 4050 PA PUSH SIDE (DOOR MOUNT) DROP PLATE
PUSH SIDE MOUNT ON:
Left hand door shown, Right hand opposite.
Locate drop plate & shoe from centerline of pivot or swing clear hinge pin when used.
| Opening | Dimension A | Dimension B |
|---|---|---|
| To 100° | 8¹⁄₂" | 9¹⁄₄" |
| 101° to 130° | 7" | 7³⁄₄" |
| 131° to 150° | 6" | 6³⁄₄" |
| 151° to 180° | 5" | 5³⁄₄" |

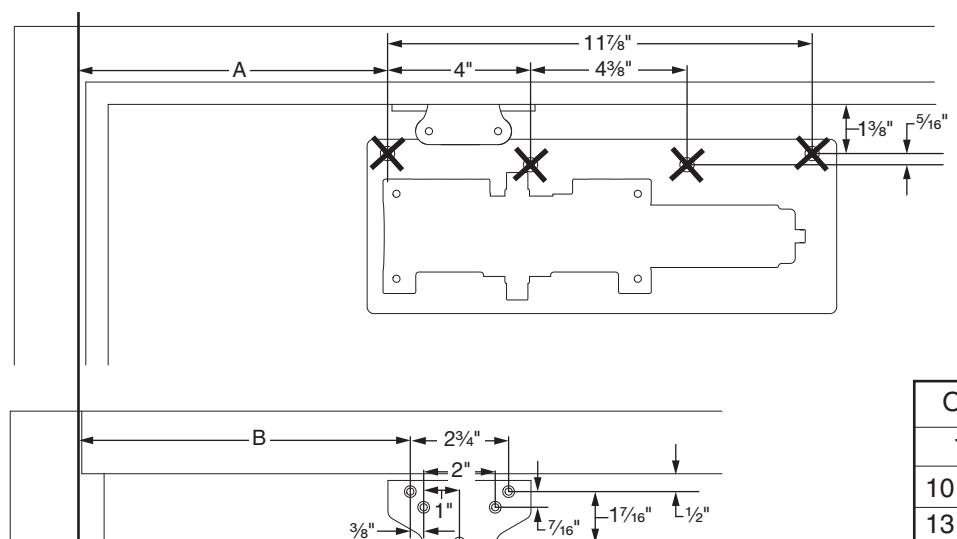

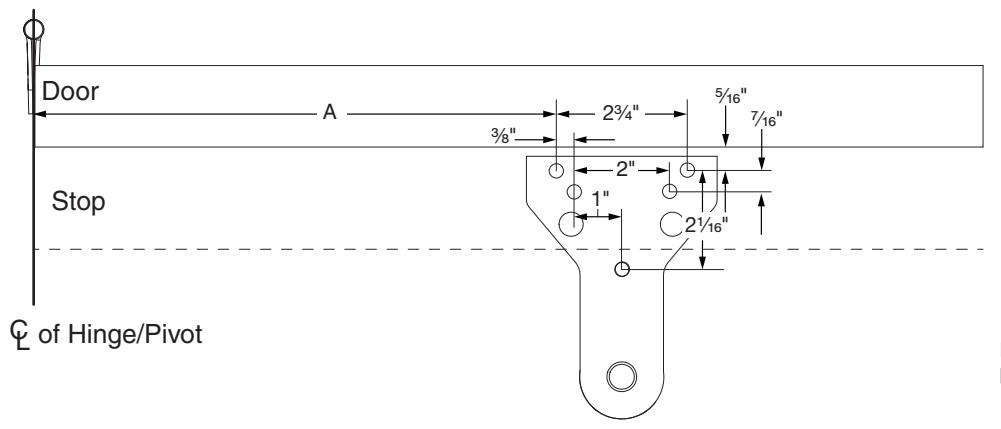

4050 EDA PUSH SIDE (DOOR MOUNT) DROP PLATE
³⁄₈"
CL of Hinge/Pivot
PUSH SIDE MOUNT ON: 4050-18PA DROP PLATE
Locate drop plate & shoe from centerline of pivot or swing clear hinge pin when used.
| Opening | Dimension A | Dimension B |
|---|---|---|
| To 100° | 8¹⁄₂" | 9¹⁄₄" |
| 101° to 130° | 7" | 7³⁄₄" |
| 131° to 150° | 6" | 6³⁄₄" |
| 151° to 180° | 5" | 5³⁄₄" |

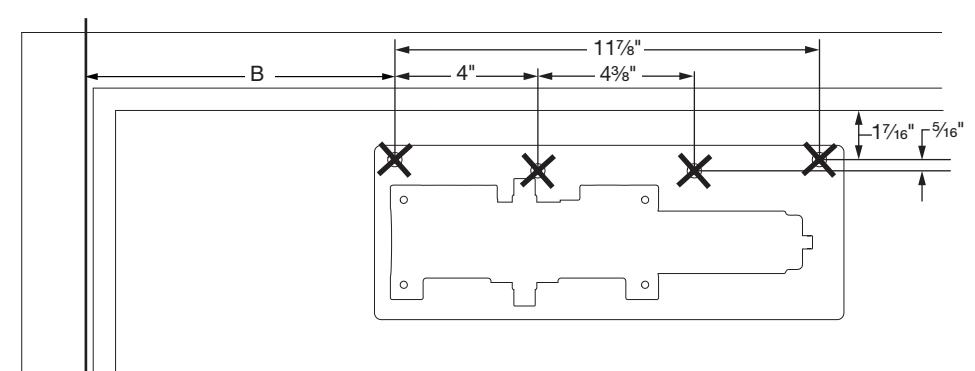

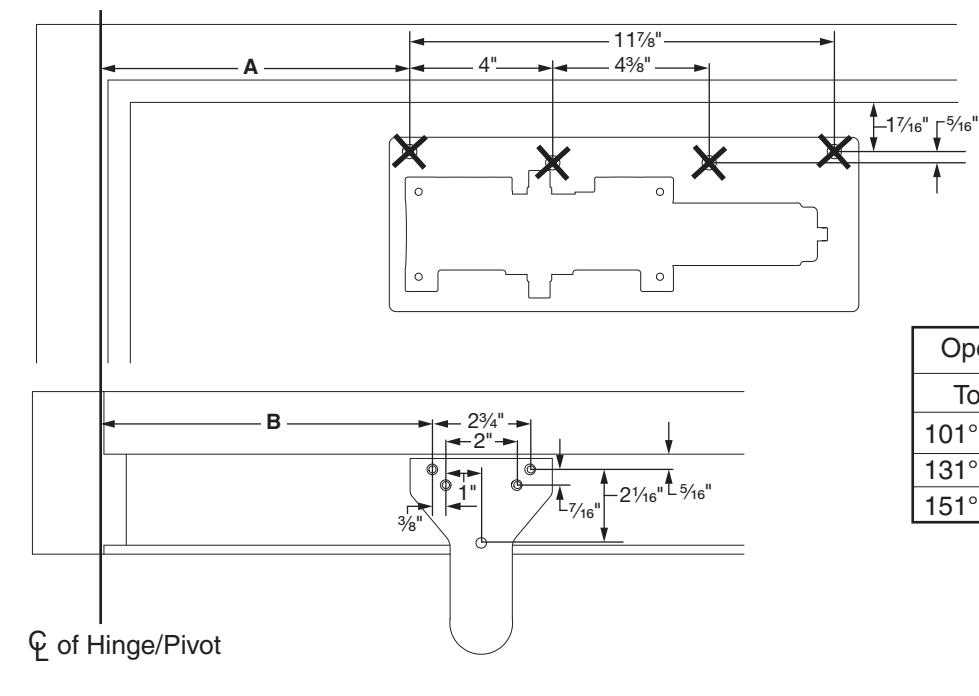

4050-18PA DROP PLATE 4050 EDA Push Side with 62G Arm (Door Mount) Drop Plate
4"
11⁷⁄₈"
4³⁄₈"
PUSH SIDE MOUNT ON:
1¹⁵⁄₁₆" ⁵⁄₁₆"
Left hand door shown, Right hand opposite.
Locate drop plate & shoe from centerline of pivot or swing clear hinge pin when used.
| A |
2³⁄₄"
2" ⁵⁄₁₆" 1" 2¹⁄₁₆" ⁷⁄₁₆" ³⁄₈" |
||
|---|---|---|---|
| CL | of Hinge/Pivot |
B
| Opening | Dimension A | Dimension B | ||
|---|---|---|---|---|
| To 100° | 9¹⁄₄" | 8¹⁄₂" | ||
| 101° to 130° | 7³⁄₄" | 7" | ||
| 131° to 150° | 6³⁄₄" | 6" | ||
| 151° to 180° | 5³⁄₄" | 5" | ||
4050-18PA DROP PLATE 4050 CUSH PUSH SIDE (DOOR MOUNT) DROP PLATE
PUSH SIDE MOUNT ON:
Left hand door shown, Right hand opposite.
Locate drop plate & shoe from centerline of pivot or swing clear hinge pin when used.
IMPORTANT
Use spacer block provided for fifth screw ¹⁄₂" or ⁵⁄₈"
CL of Hinge/Pivot
General Notes:
- 1. If door is hung on pivots Locate closer and shoe from C of pivot point. L
- 2. Top rail less than 5³⁄₄" Requires drop plate.
- 3. All dimensions applicable For hold open or dead stop.
- 4. Delayed action optional.
- 5. Reinforcing per. ANSI/SDI-100 Recommended for hollow Metal door and frames.
- 6. ⁵⁄₈" maximum allowable side Stop.
- 7. Using fasters prodvided Mount drop plate with (4) ¹⁄₄ - 14 x 1³⁄₈ S.R.T. Mount closer to drop plates (4) ¹⁄₄ - 20 x 2 P.H.M.S.
- 8. Minimum Top Rail Width is 2¹⁄₄".
| Dimension A | Dimension B |
| 11¹⁄₈" | 10³⁄₈" |
| 10¹⁄₄" | 9¹⁄₂" |
| 9⁵⁄₈" | 8⁷⁄₈" |
| 9" | 8¹⁄₄" |
| 8³⁄₈" | 7⁵⁄₈" |
| 7⁷⁄₈" | 7¹⁄₈" |

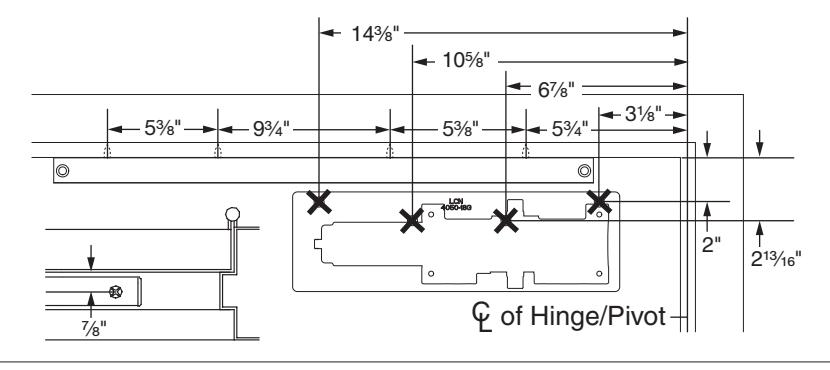

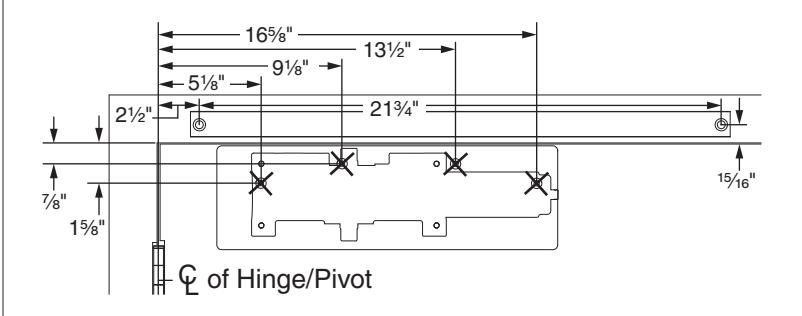

4050T PULL SIDE MOUNT DROP PLATE, 180° OPENING
PULL SIDE MOUNT ON: 4050-18 DROP PLATE
Right hand door shown, Left hand opposite.

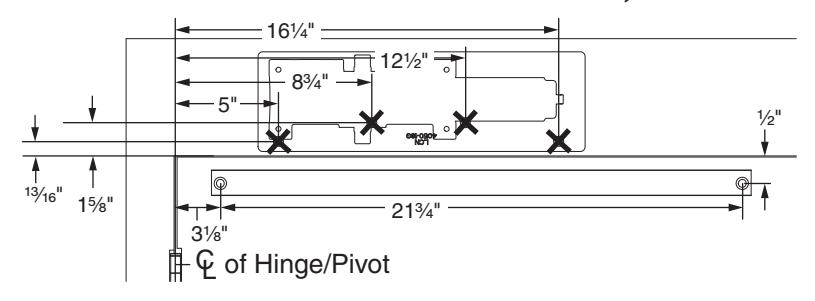

4050T TOP JAMB MOUNT DROP PLATE, 180° OPENING
TOP JAMB MOUNT ON: 4050-18G DROP PLATE
Right hand door shown, Left hand opposite.
4050-18G DROP PLATE 4050T PUSH SIDE MOUNT DROP PLATE, 120° OPENING
PUSH SIDE MOUNT ON:
Right hand door shown, Left hand opposite.
4050-18G DROP PLATE 4050T DOUBLE EGRESS (DE) ARM MOUNT DROP PLATE
DE ARM MOUNT ON:
Right hand door shown, Left hand opposite.
General Notes:
- 1. If door is hung on pivots Locate closer and shoe from C of pivot point. L
- 2. Top rail less than 5³⁄₄" Requires drop plate.
- 3. All dimensions applicable For hold open or dead stop.
- 4. Delayed action optional.
- 5. Reinforcing per. ANSI/SDI-100 Recommended for hollow Metal door and frames.
- 6. ⁵⁄₈" maximum allowable side Stop.
7. Using fasters prodvided Mount drop plate with (4) ¹⁄₄ - 14 x 1³⁄₈ S.R.T. Mount closer to drop plates (4) ¹⁄₄ - 20 x 2 P.H.M.S.
