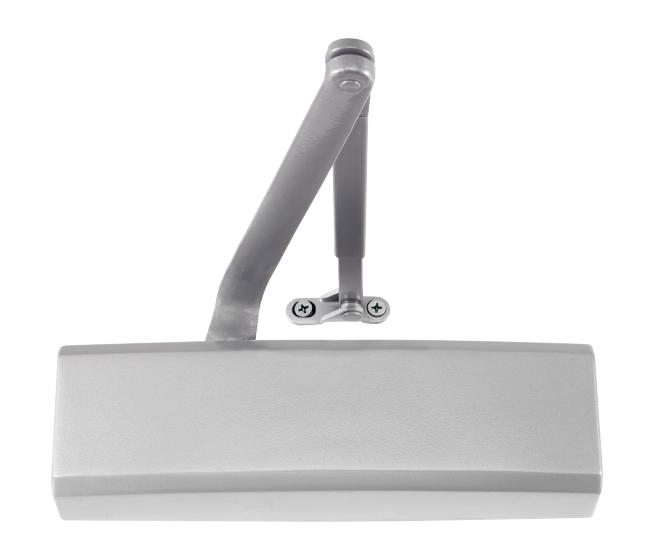

Surface mounted closer

4050 Series

Overview

The 4050 Series cast aluminum closer is engineered for durability and built tough to excel in the harsh environments of high frequency, high abusive traffic areas. Ideal for commercial building applications and competitive specification situations that demand a combination of quality, reliability and value. The cast aluminum door closer offers premium features like powder coating, full complement bearing, All Weather Fluid and a 25 year warranty.

Cylinder

4050-3071

Cast aluminum cylinder assembly

Handing Sizing

Non-handed Adjustable spring size 1-6

Available cylinder options

DEL Delayed action cylinder

Mounting

Hinge (pull side) Top jamb (push side)

Parallel arm (push side)

Finishes Covers

Powder coat fi nishes

690 Statuary Bronze

691 Light Bronze

693 Black

695 Dark Bronze

696 Brass

150+ additional custom colors available using the RAL numbering system

Available fi nish options

MTLPC	Brite metallic: Custom powder coat fi nish, which resembles that of US26 or US26D plated fi nish.
SRI	For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a standard powder coat fi nish of your choice, or a custom powder coat fi nish for a nominal additional cost. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated fi nishes.

4050-72

Plastic cover

• Non-handed
• Standard

Optional covers

4050-72ALT

Alternate cover

• Non-handed
• Optional, sold separately (not packed with closer)

4050-72MC

Metal cover

• Non-handed
• Required for plated fi nishes and custom powder coat fi nishes
• Optional

4050 Series

Arms

4050-3077 Regular arm

• Non-handed
• Mounts pull side or top jamb with shallow reveal
• Includes PA SHOE, 4050- 62PA required for parallel arm mounting

4050-3077L Long arm

• Non-handed
• Includes LONG ROD AND SHOE, 4050-79LR for top jamb mount
• Optional

4050-3049 Hold-open arm

• Non-handed
• Mounts pull side or top jamb with shallow reveal
• Hold-open adjustable shoe
• 4050 closer includes 4050- 62PA shoe required for parallel arm mounting
• Optional

4050-3049L Long hold-open arm

• Non-handed
• Hold-open adjustable shoe
• Includes LONG HEAD AND TUBE, 4050-3048L for top jamb mount
• Optional

4050-3077EDA Extra duty arm

• Non-handed
• Features forged, solid steel main and forearm for potentially abusive installations

4050-3049EDA Hold-open extra duty arm

• Handed
• Features forged, solid steel main and forearm for potentially abusive installations
• Hold-open function is adjusted at the shoe

4050-3077EDA/62G Extra Duty Arm With 62G

• Non-handed
• Features forged, solid steel main and forearm for potentially abusive installations
• 62G shoe provides additional blade stop clearance for use with additional door hardware such as an overhead holder

4050-3049EDA/62G Hold-open extra duty arm with 62G

• Handed
• Features forged, solid steel main and forearm for potentially abusive installations
• 62G shoe provides additional blade stop clearance for use with additional door hardware such as an overhead holder
• Hold-open function is adjusted at the shoe

4050-3077CNS Cush-N-Stop® arm

• Non-handed
• Features solid forged steel main arm and forearm with stop in soffi t shoe
• Optional

4050-3049CNS HCUSH arm

• Provides hold-open function with templated stop/holdopen points
• Handle controls hold-open function

Installation accessories

4050-18 Plate

• Required for hinge side mount where top rail is less than 3-7/8˝ (98 mm)
• Requires minimum 1-3/4˝ (44 mm) top rail

4050-18G Plate

• Locates top jamb mounted closer fl ush with top of head frame face in fl ush ceiling condition
• Contact LCN Product Support for minimum head frame requirement

4050-18PA Plate

• Required for parallel arm mounting where top rail is less than 5-3/4˝ (146 mm), measured from the stop
• Requires 2-1/4˝ (57 mm) minimum top rail

4050-30 Cush shoe support

Provides anchorage for fi ft h screw used with CUSH arms, where reveal is less than 3-1/16˝ (78 mm)

4050-61 Blade stop spacer

Required to lower parallel arm shoe to clear 1/2˝ (13 mm) blade stop

4050-419 Flush panel adapter

Provides horizontal mounting surface for parallel arm shoe on single rabetted or fl ush frame

4050-62A Auxiliary shoe

• Requires a top rail of 7-13/16˝ (198 mm)
• Replaces -62PA for parallel arm mounting of regular arm with overhead holder/stop
• Optional

4050-62PA PA shoe

Required for parallel arm mounting

Fasteners

Self-reaming and tapping screws included standard

Fastener pack options

TBSRT	TB1 with self-reaming and tapping screws
WMS	Wood and machine screw
TBWMS	TB1 , wood and machine screw
TORX	TORX machine screw
TBTORX	TB1 and TORX machine screw

₁ Specify door thickness if other than 1-3/4˝

Dimensions and mounting

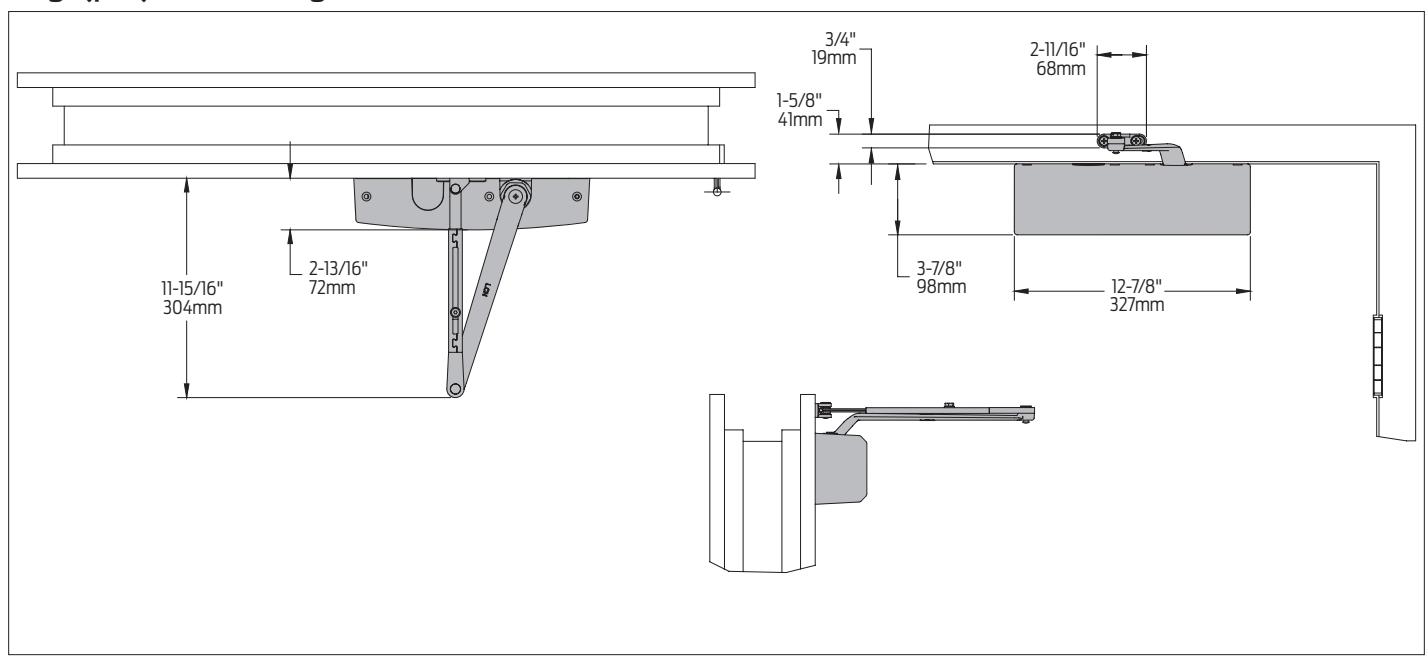

Hinge (pull) side mounting

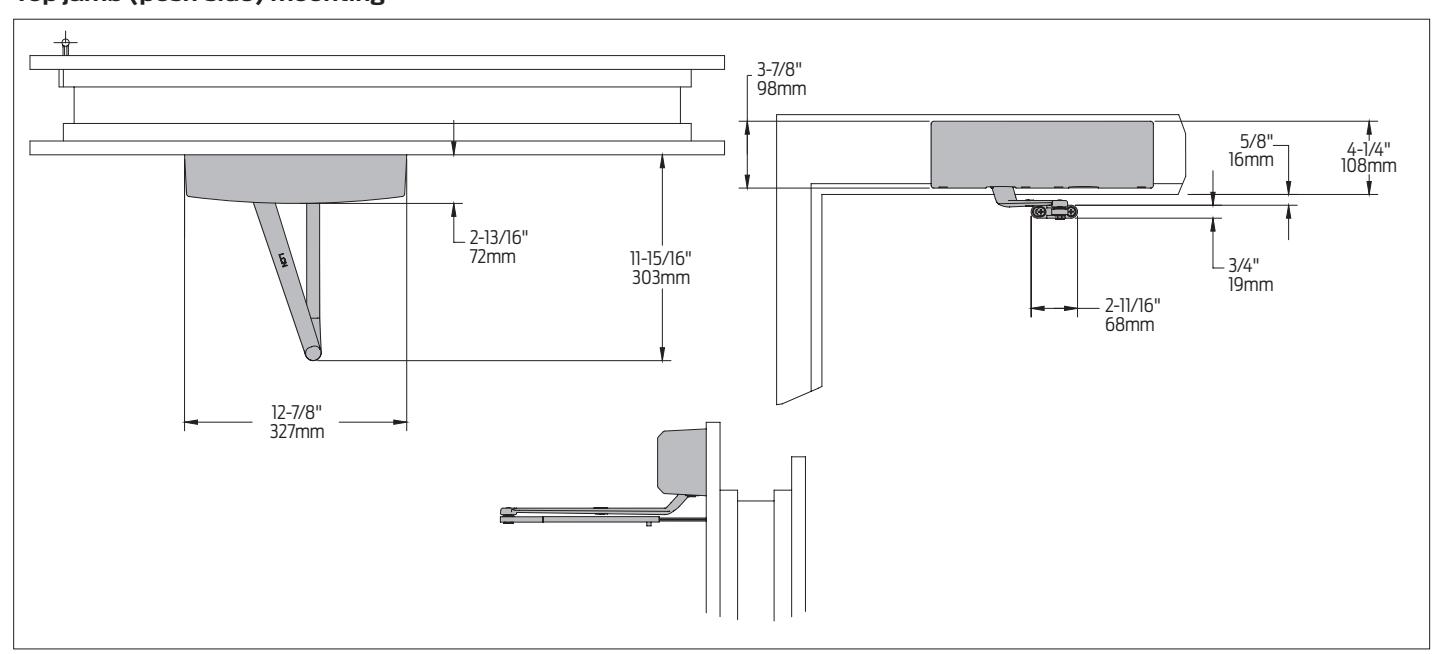

Top jamb (push side) mounting

Dimensions and mounting

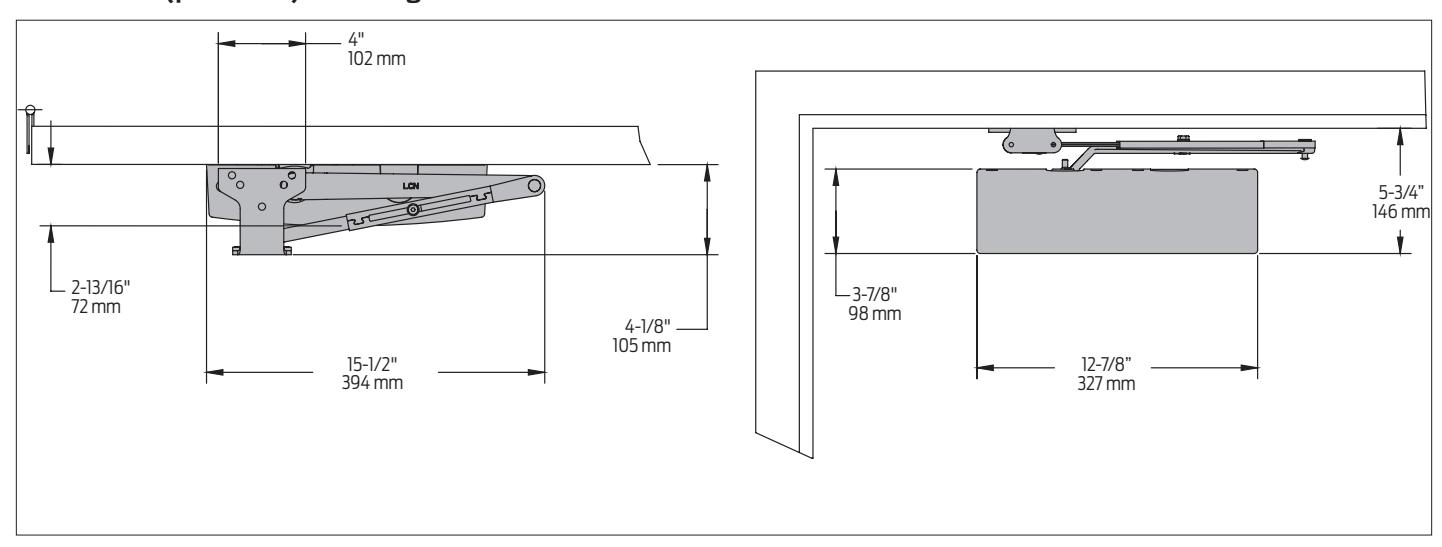

Parallel arm (push side) mounting

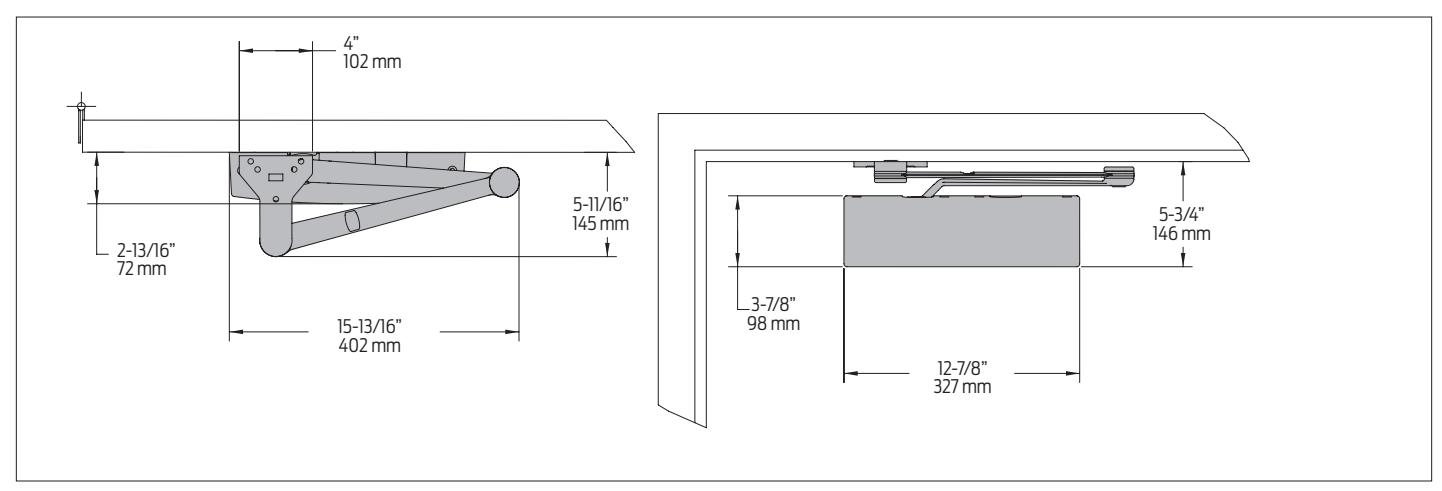

EDA mount

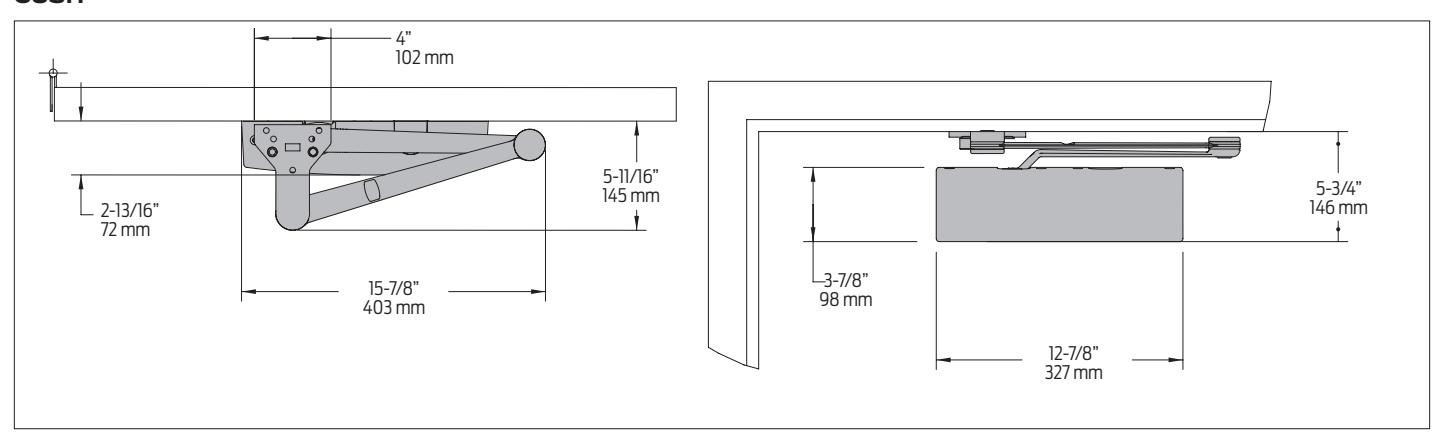

CUSH

Specifications

Accessibility	Available with less than 5.0 lbs. opening force
	on 36˝ door
Certifications/	ƒ Grade 1 - ANSI A156.4
approvals	ƒ UL 10C
	ƒ Meets BAA - Buy American Act
Degree of	Hinge (pull) side
operation	Max opening: 180°
	Hold open: 180°
	Top jamb (push side) mount
	Max opening: 180°
	Hold open: 180°
	Parallel arm with 62PA
	Max opening: 180°
	Hold open: 180°
	EDA
	Max opening: 180°
	Hold open: 180°
	Cush
	Max opening: 110°
	Hold open: 110°
Environmental	ƒ Approved for interior use
conditions	ƒ Approved for exterior use (SRI coated only)
	ƒ LCN's standard all weather fluid performs to
	temperature ranges from 120°F (49°C) to -30°F (-35°C)
	ƒ LCN's powder coat finish surpasses 100 hours
	of salt spray which is over four times the ANSI
	standard for corrosion resistance.
Warranty	25 years
Standard	ƒ Cast iron body
features	ƒ Full complement bearing
	ƒ 1-1/2˝ diameter piston
	ƒ 11/16˝ diameter double heat treated pinion journal
